Home >> Chevrolet >> 2007 >> HHR L4-2.2L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> Engine Compartment Views >> Left Front of the Engine Compartment

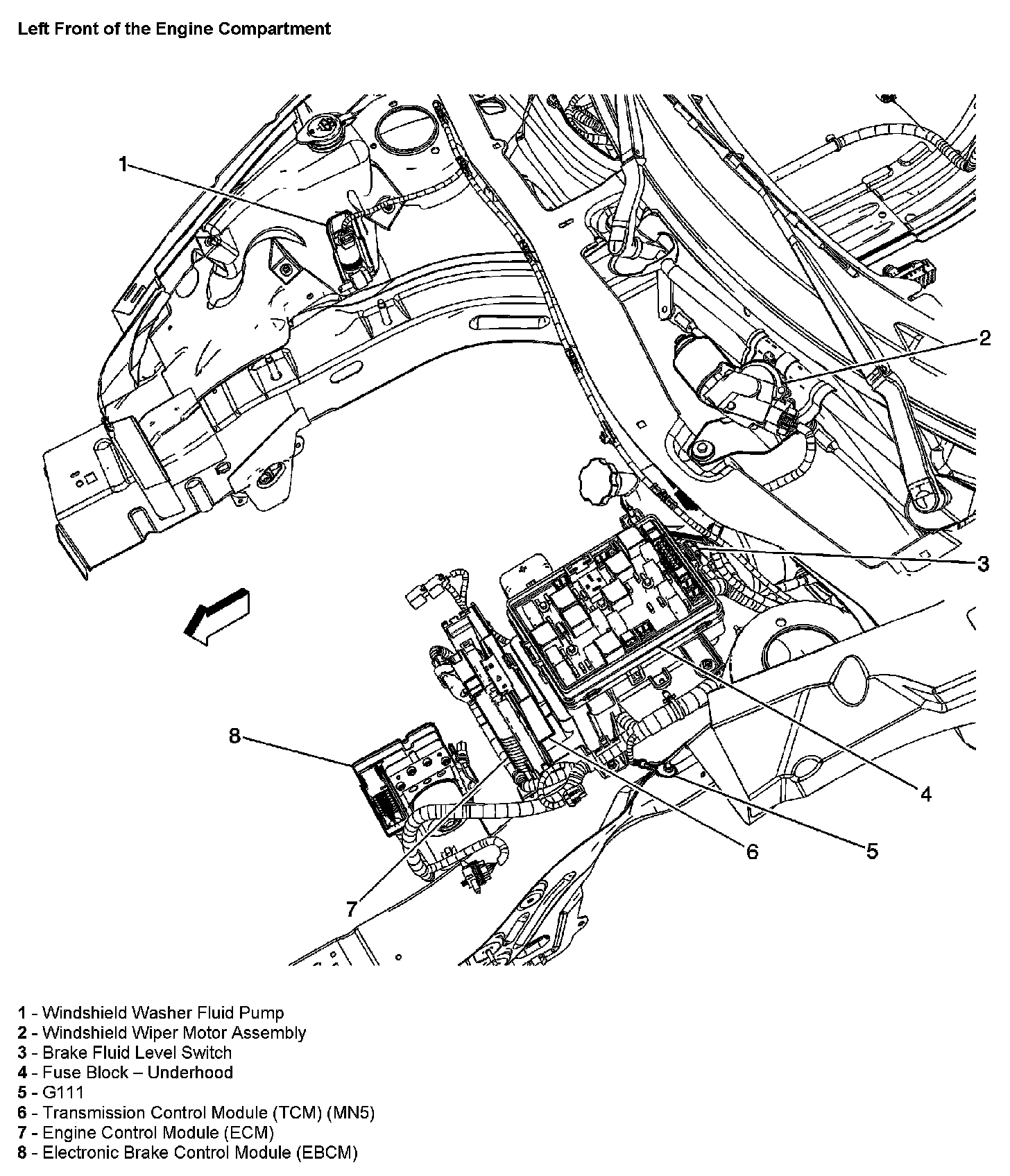

Left Front of the Engine Compartment

Left Front Of The Engine Compartment:
