Fluid - A/T: Testing and Inspection



Transmission Fluid Check

Transmission Fluid Check:





The oil level control plug (65) is located on the torque converter side of the transmission.

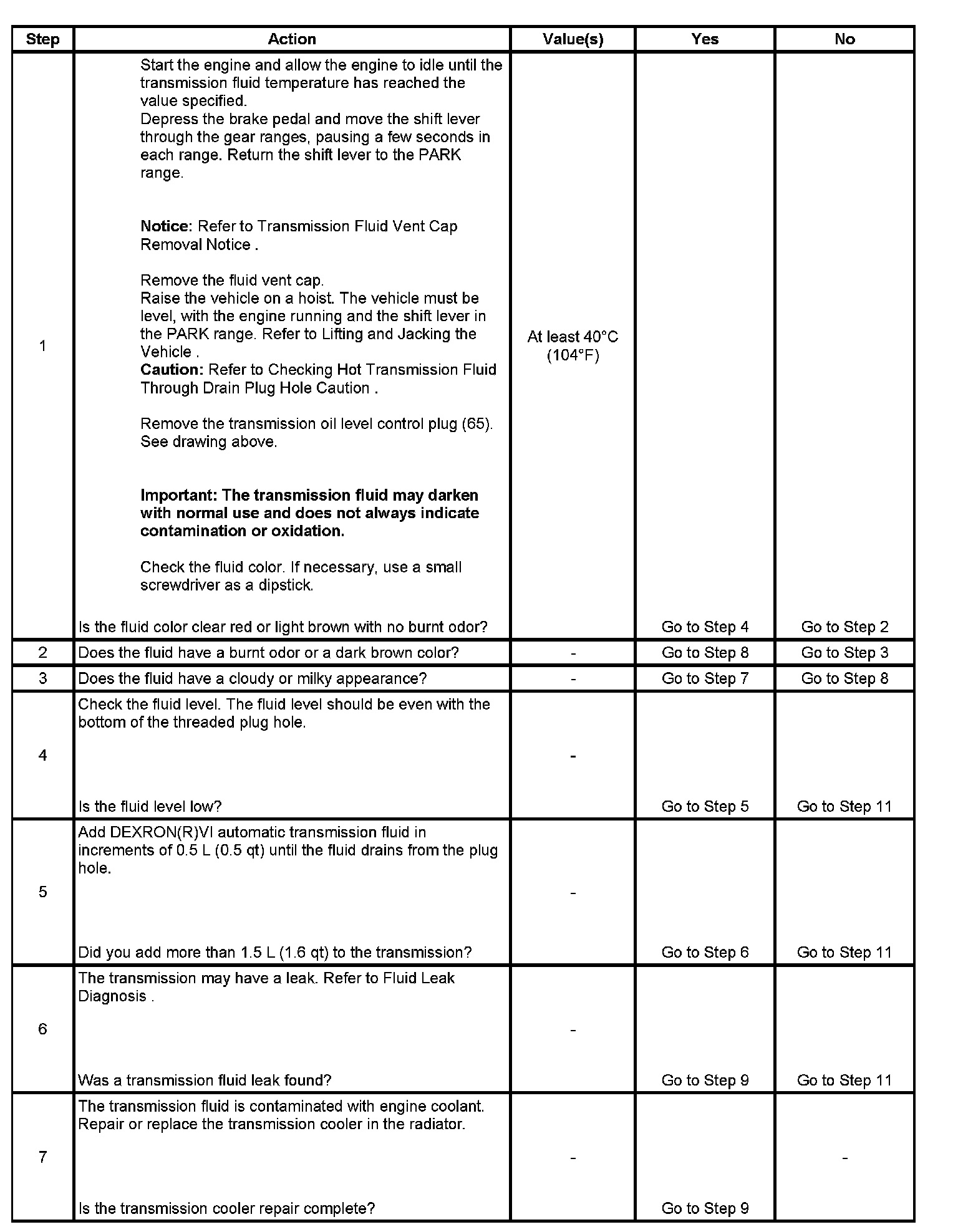

Step 1 - Step 7:

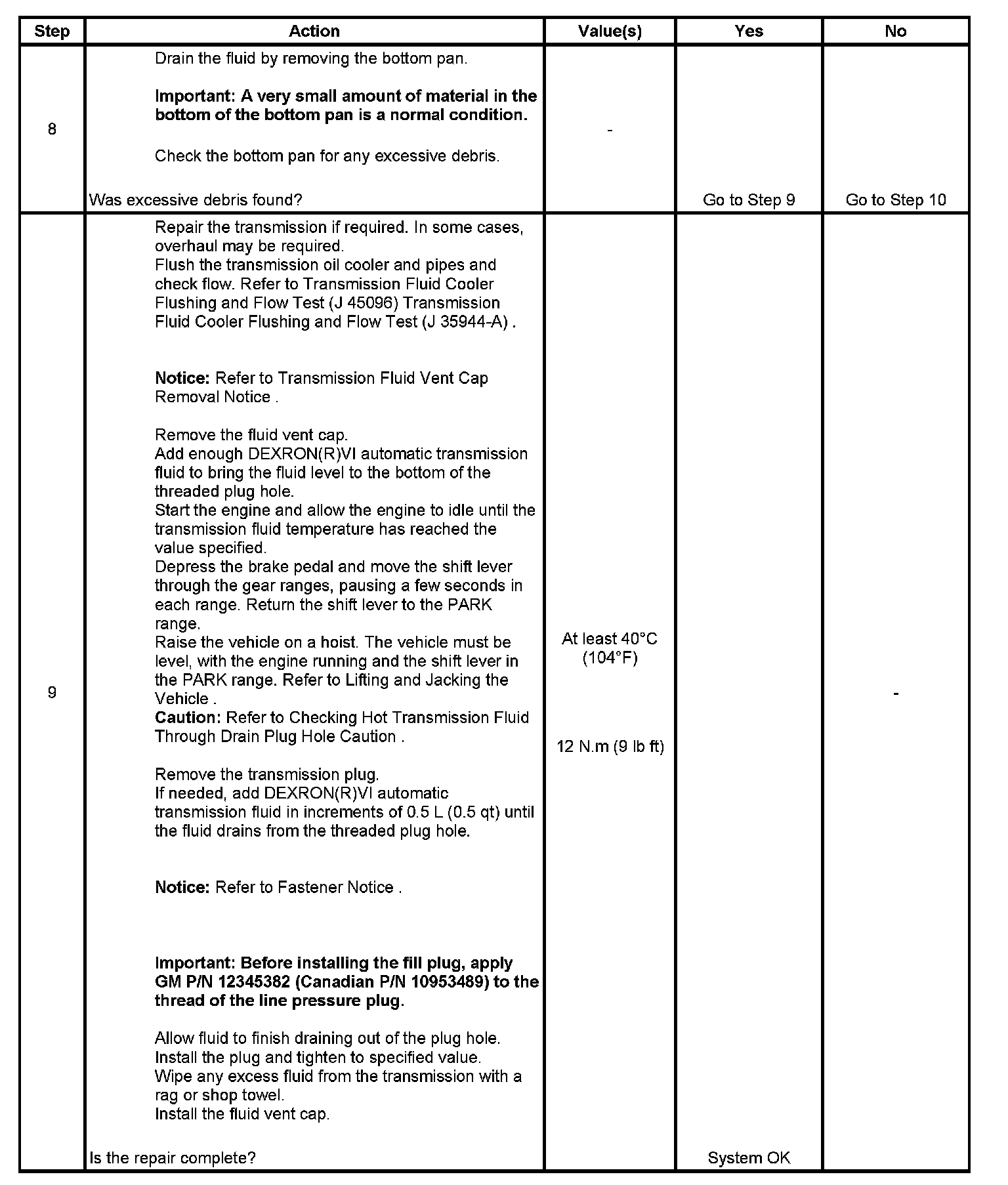

Step 8 - Step 9:

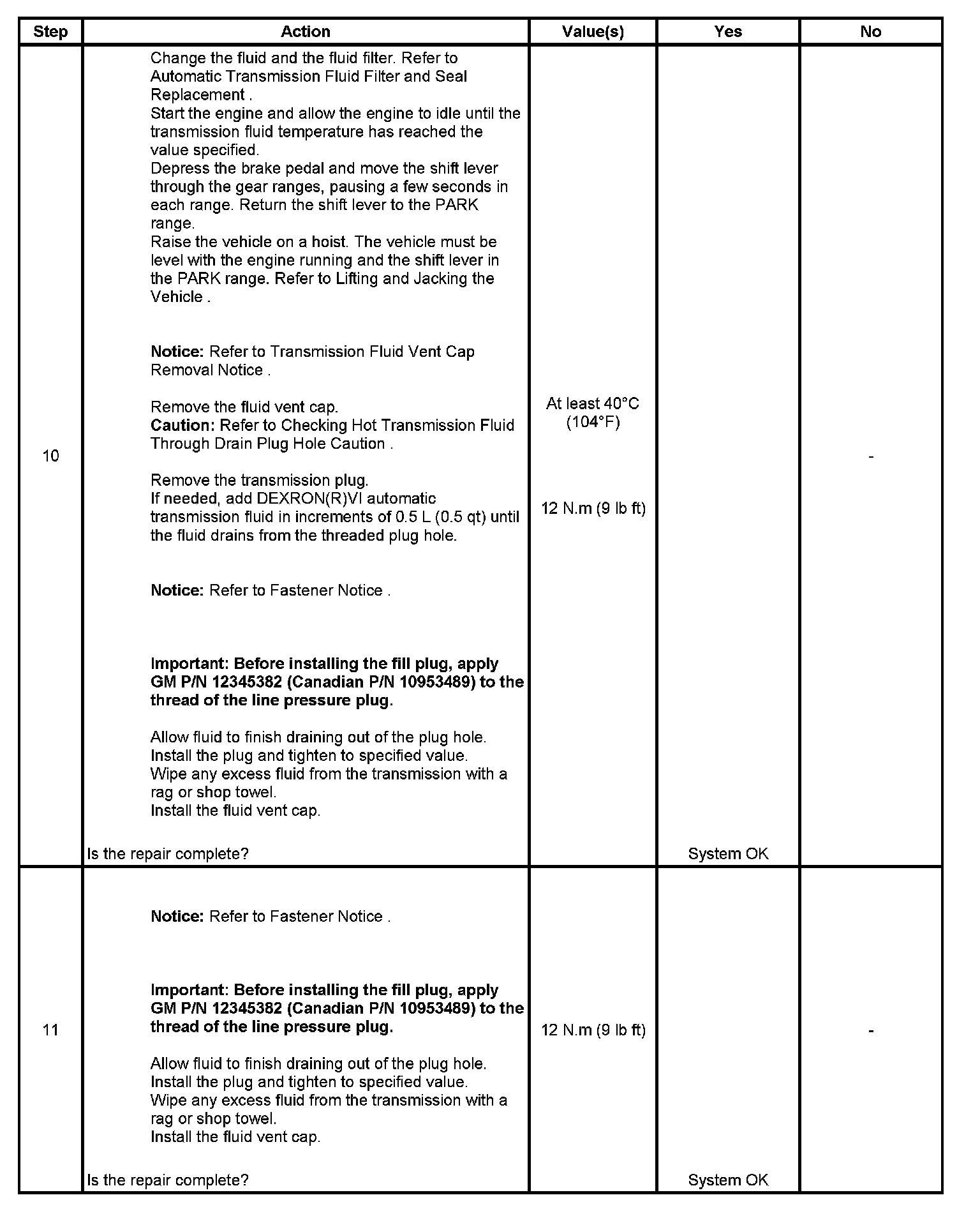

Step 10 - Step 11:
