Home >> Chevrolet >> 2007 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper Motor >> Windshield Wiper Motor Assembly

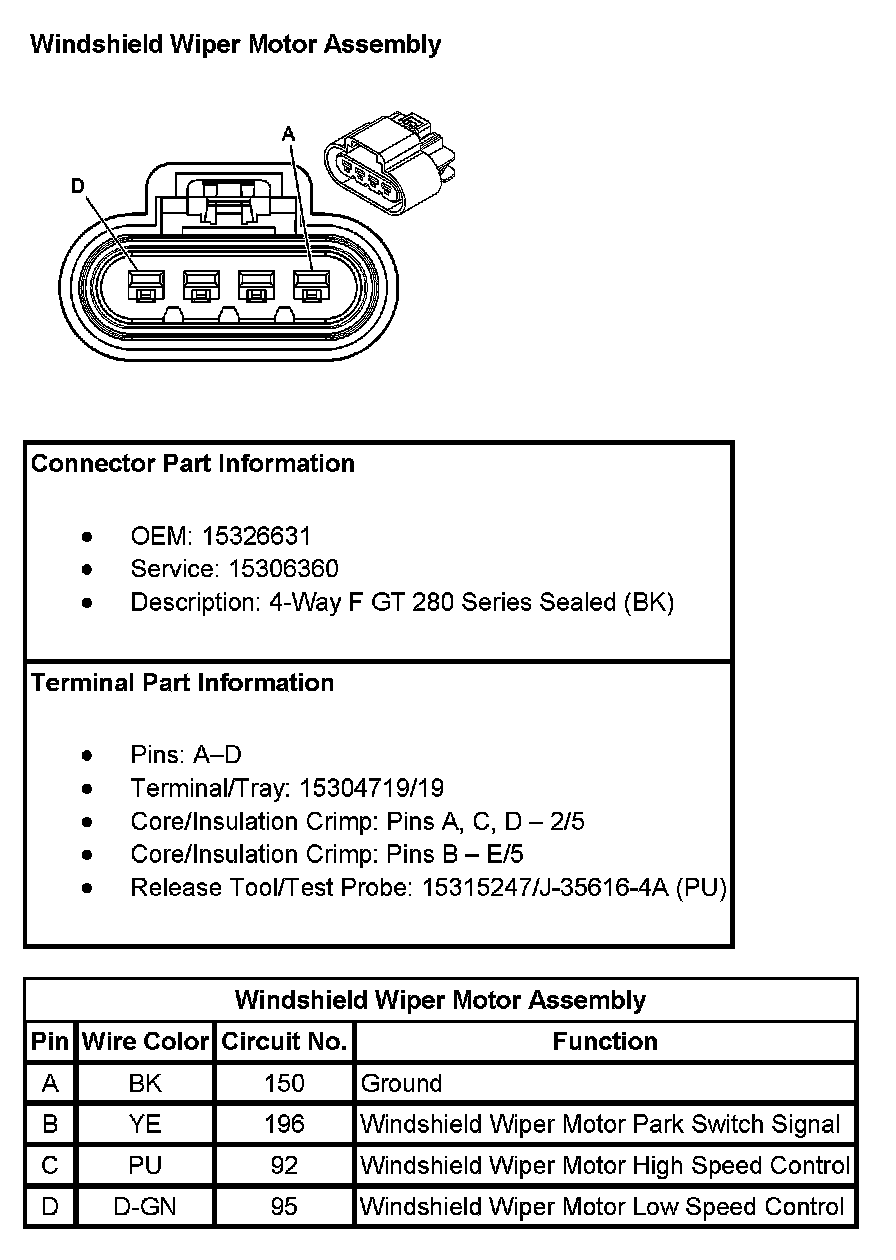

Windshield Wiper Motor Assembly

Windshield Wiper Motor Assembly:
