Power Seat Motor
Power Seat Motor

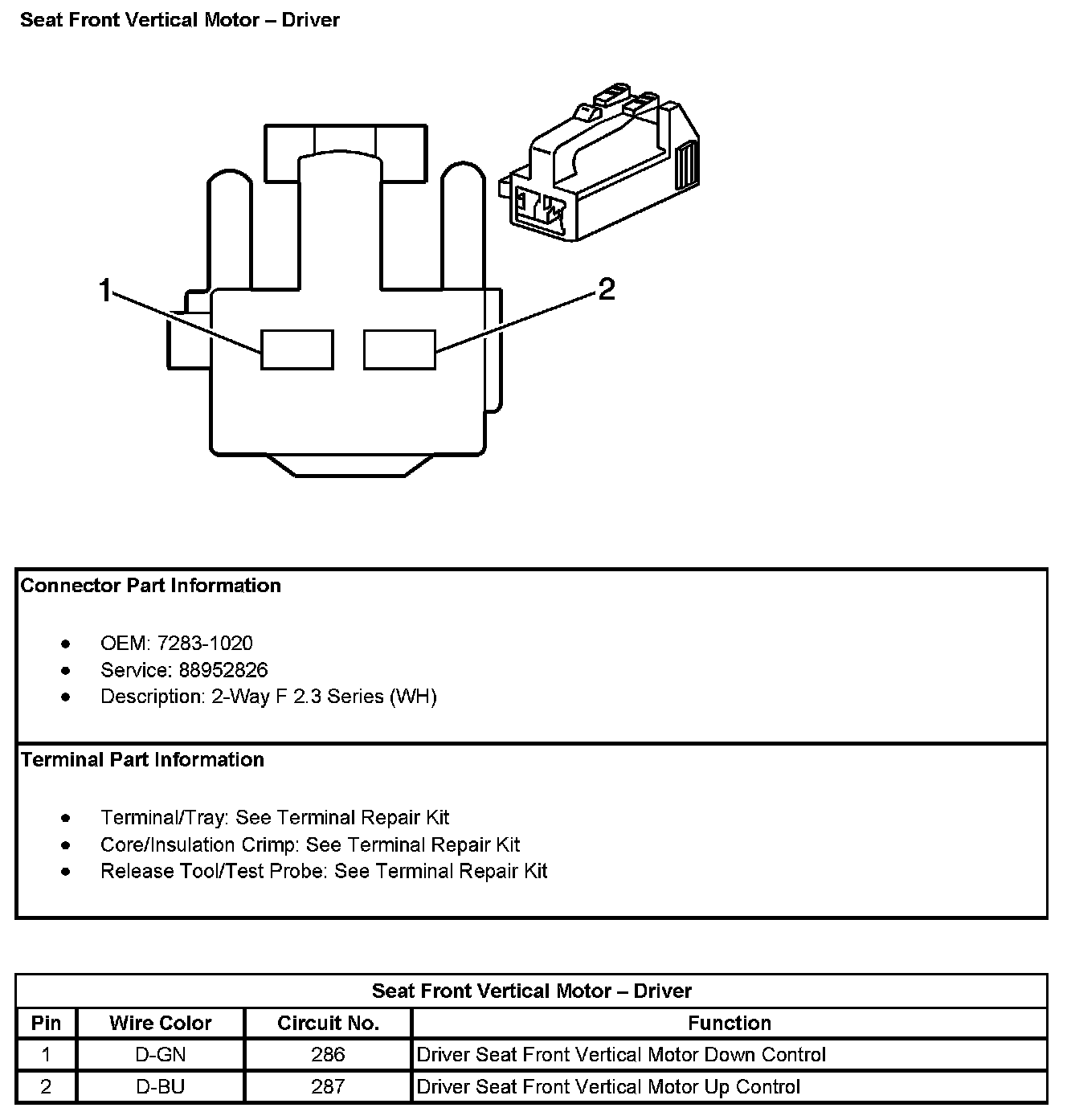

Seat Front Vertical Motor - Driver:

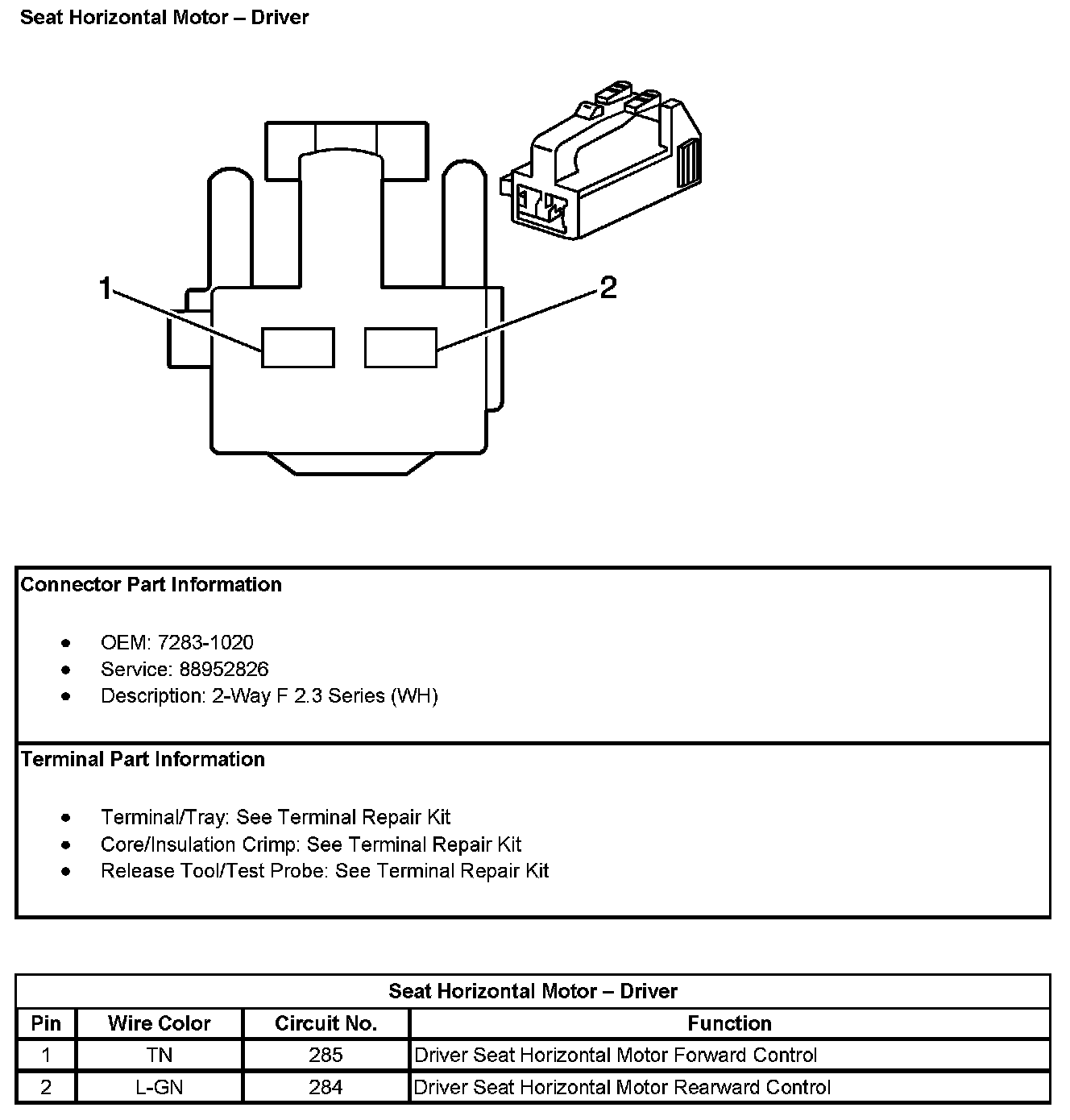

Seat Horizontal Motor - Driver:
Seat Lumbar Motor - Driver:
Seat Rear Vertical Motor - Driver:
