Power Door Lock Actuator

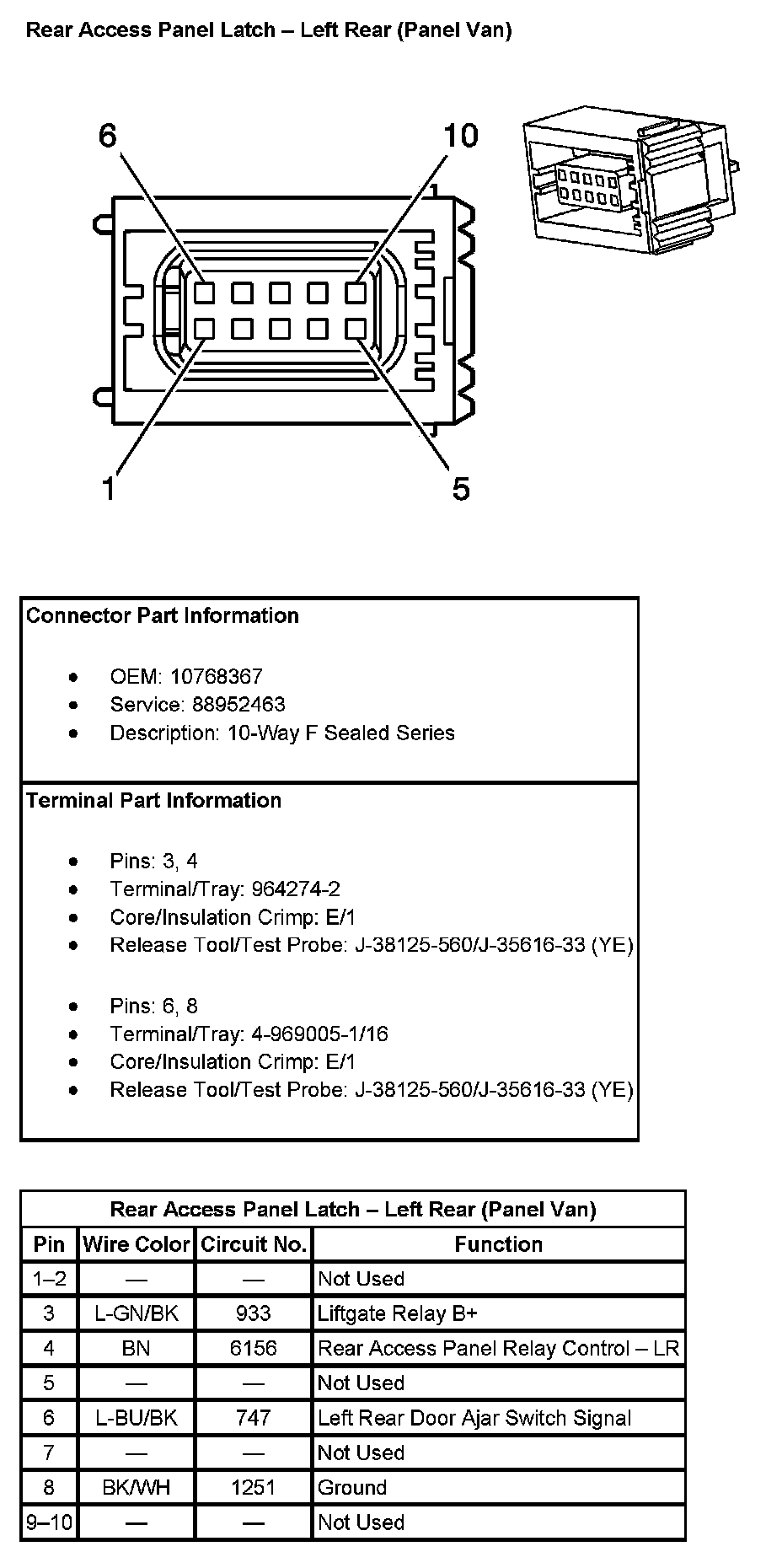

Rear Access Panel Latch - Left Rear (Panel Van):

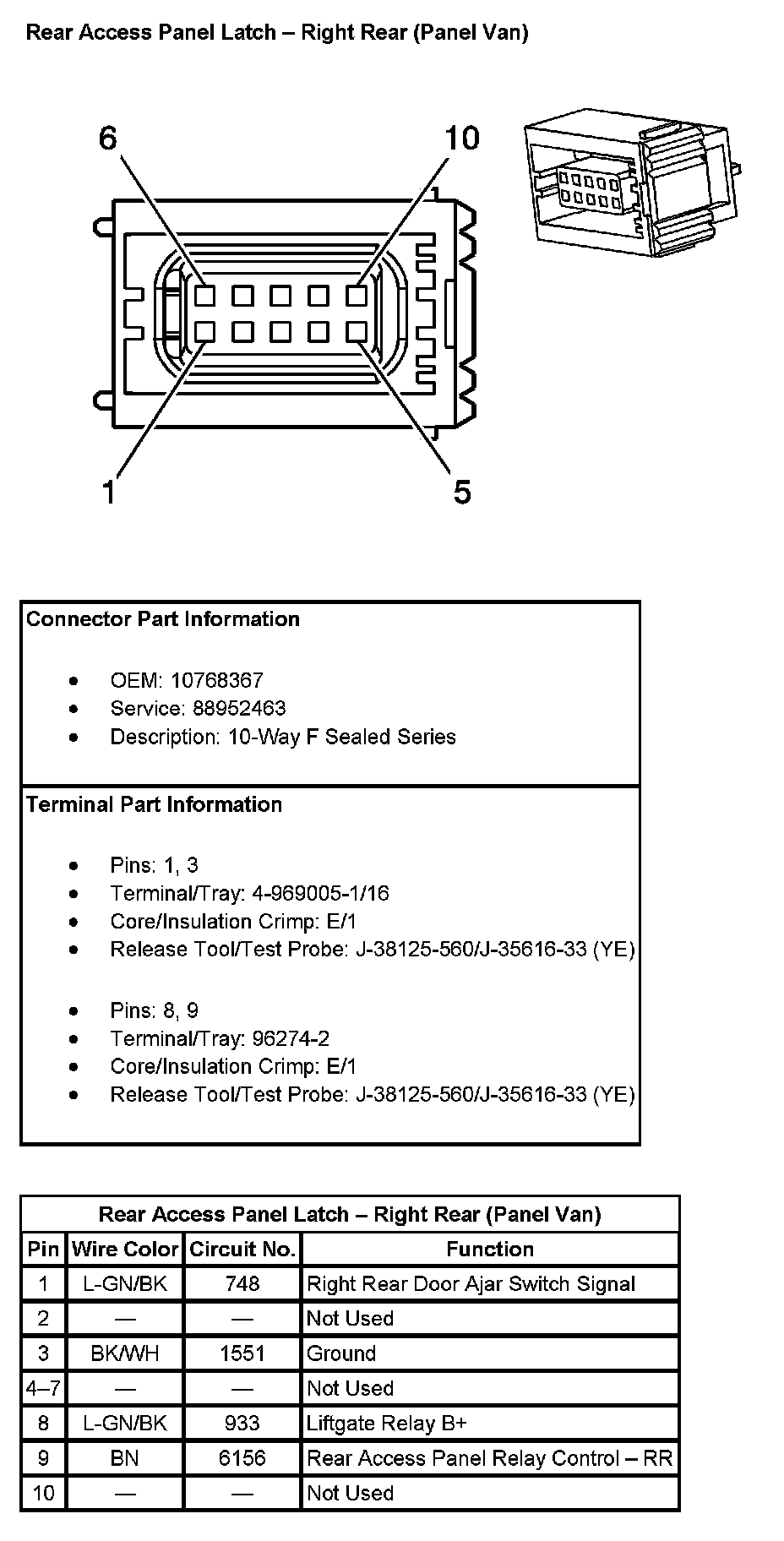

Rear Access Panel Latch - Right Rear (Panel Van):
