Rear Fuse Block
Fuse Block - Rear (PRP) - Top View:
Fuse Block - Rear (PRP) - Fuse Applications:

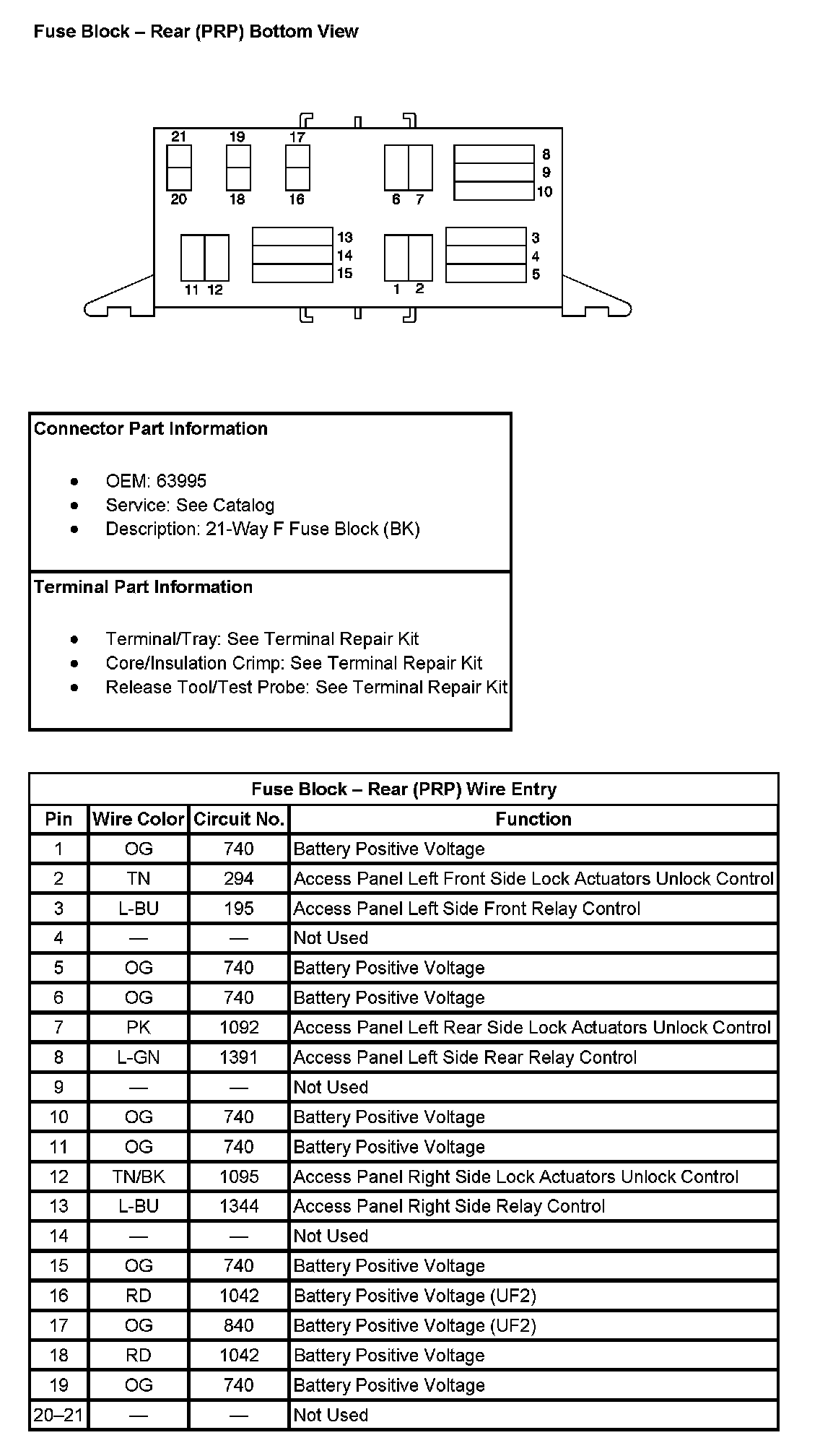

Fuse Block - Rear (PRP) Bottom View:
