Power and Ground Distribution
>>
Locations
>>
Engine Harness Views
Engine Harness Views

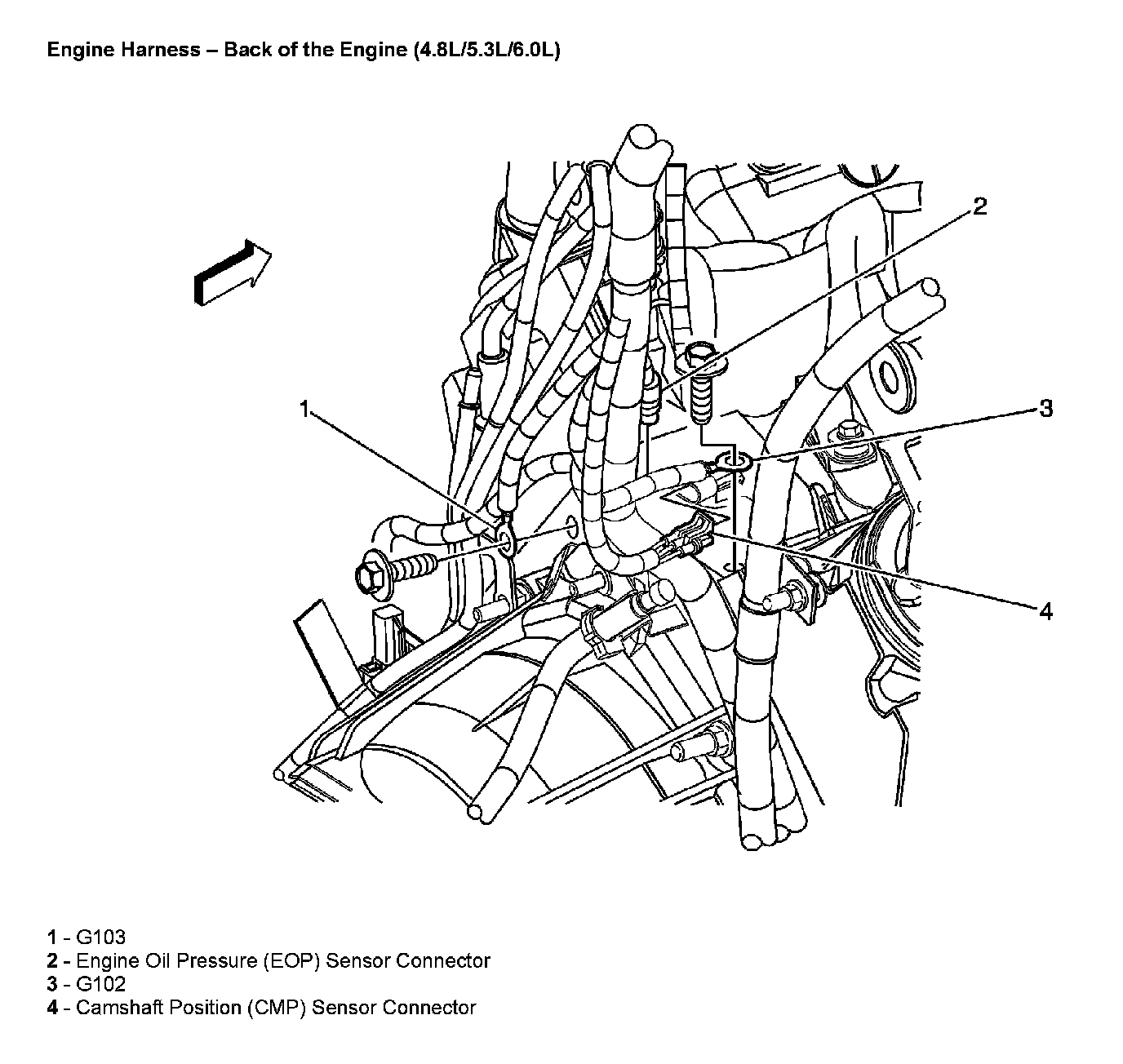

Engine Harness - Back Of The Engine (4.8L/5.3L/6.0L):
