Home
>>
Chevrolet
>>
2007
>>
Express 2500 V8-4.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Body Fuse Block
Body Fuse Block

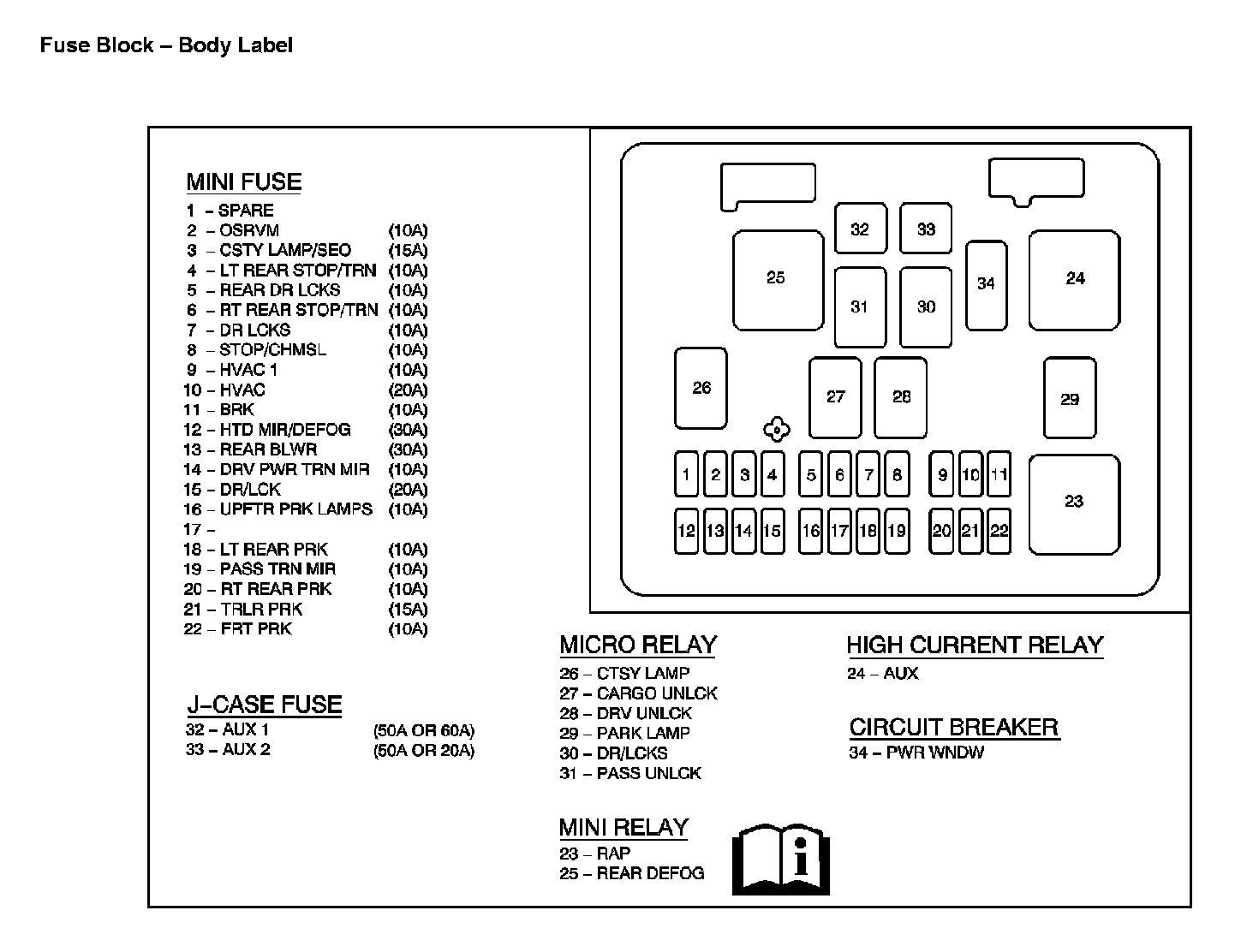

Fuse Block - Body Label:

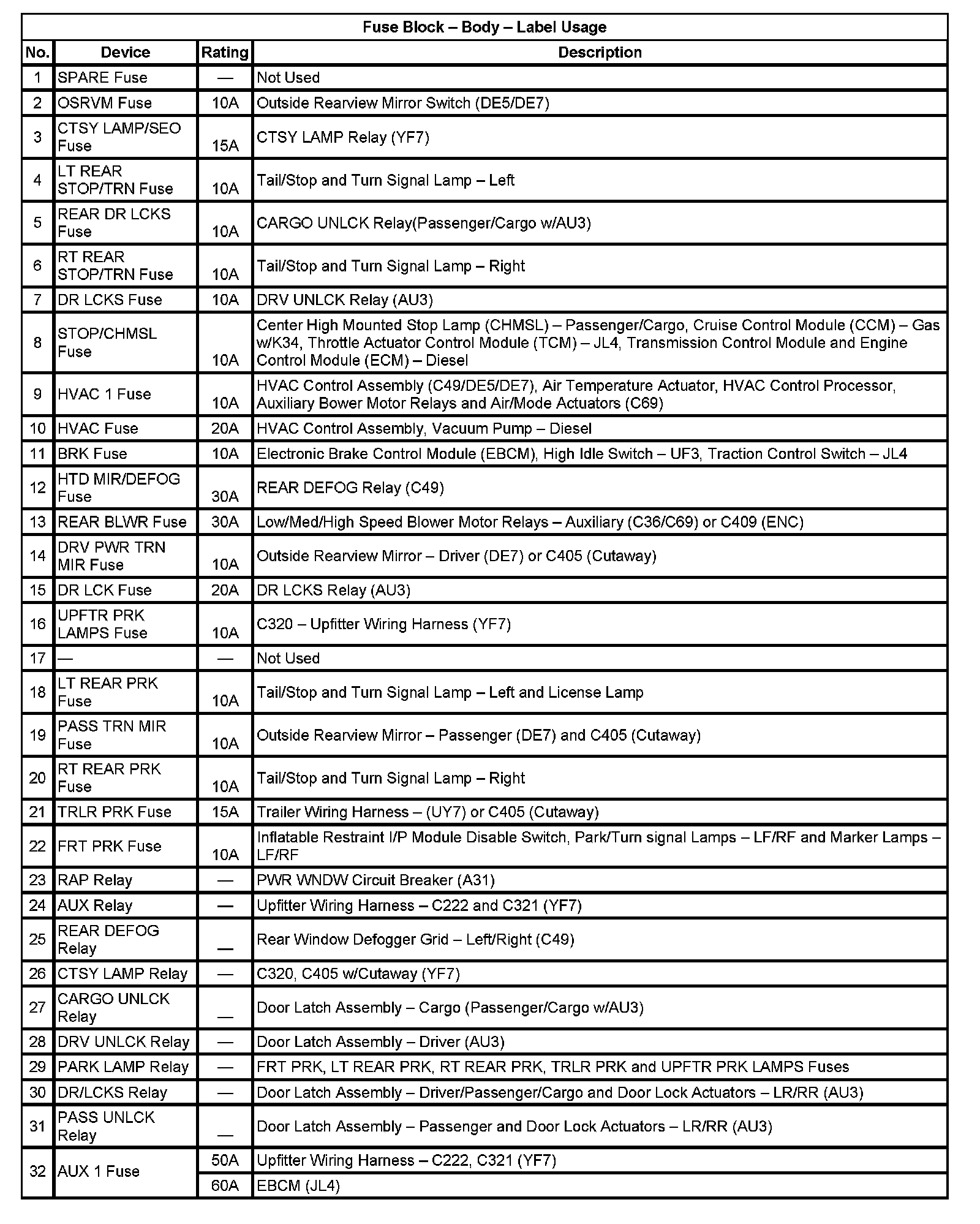

Fuse Block - Body - Label Usage (Part 1):
Fuse Block - Body - Label Usage (Part 2):
