Turn Signals
>>
System Diagram
System Diagram

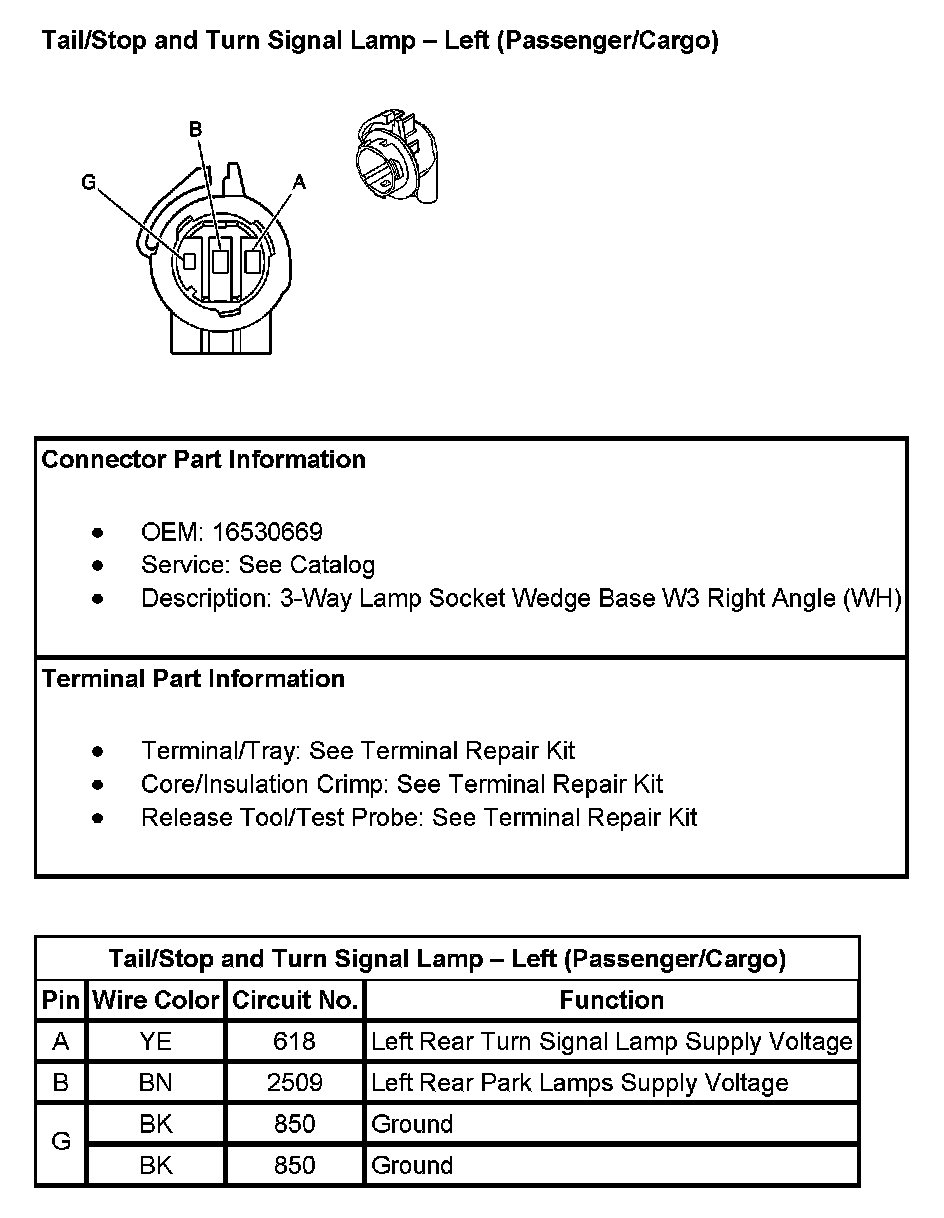

Tail/Stop And Turn Signal Lamp - Left (Passenger/Cargo):

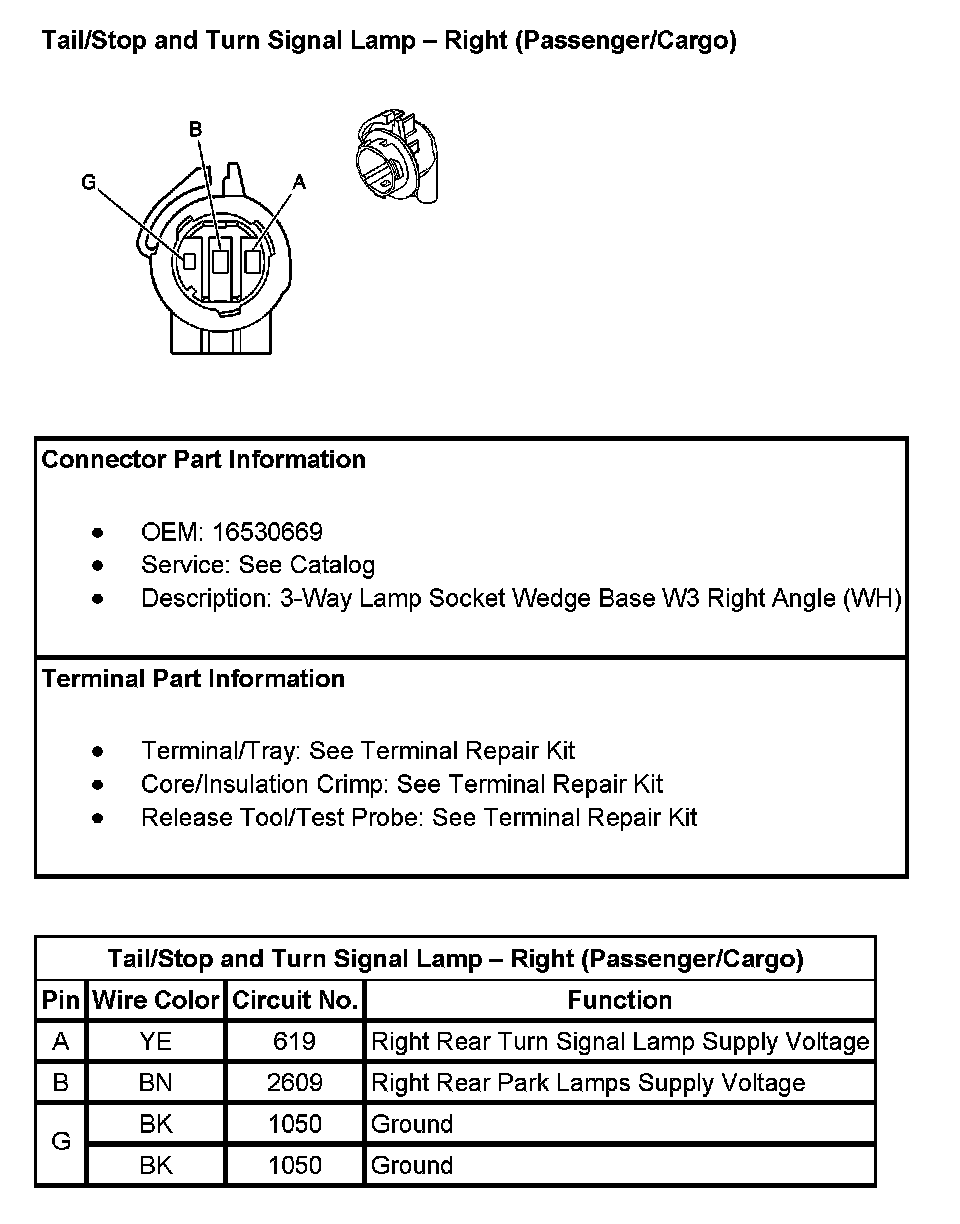

Tail/Stop And Turn Signal Lamp - Right (Passenger/Cargo):

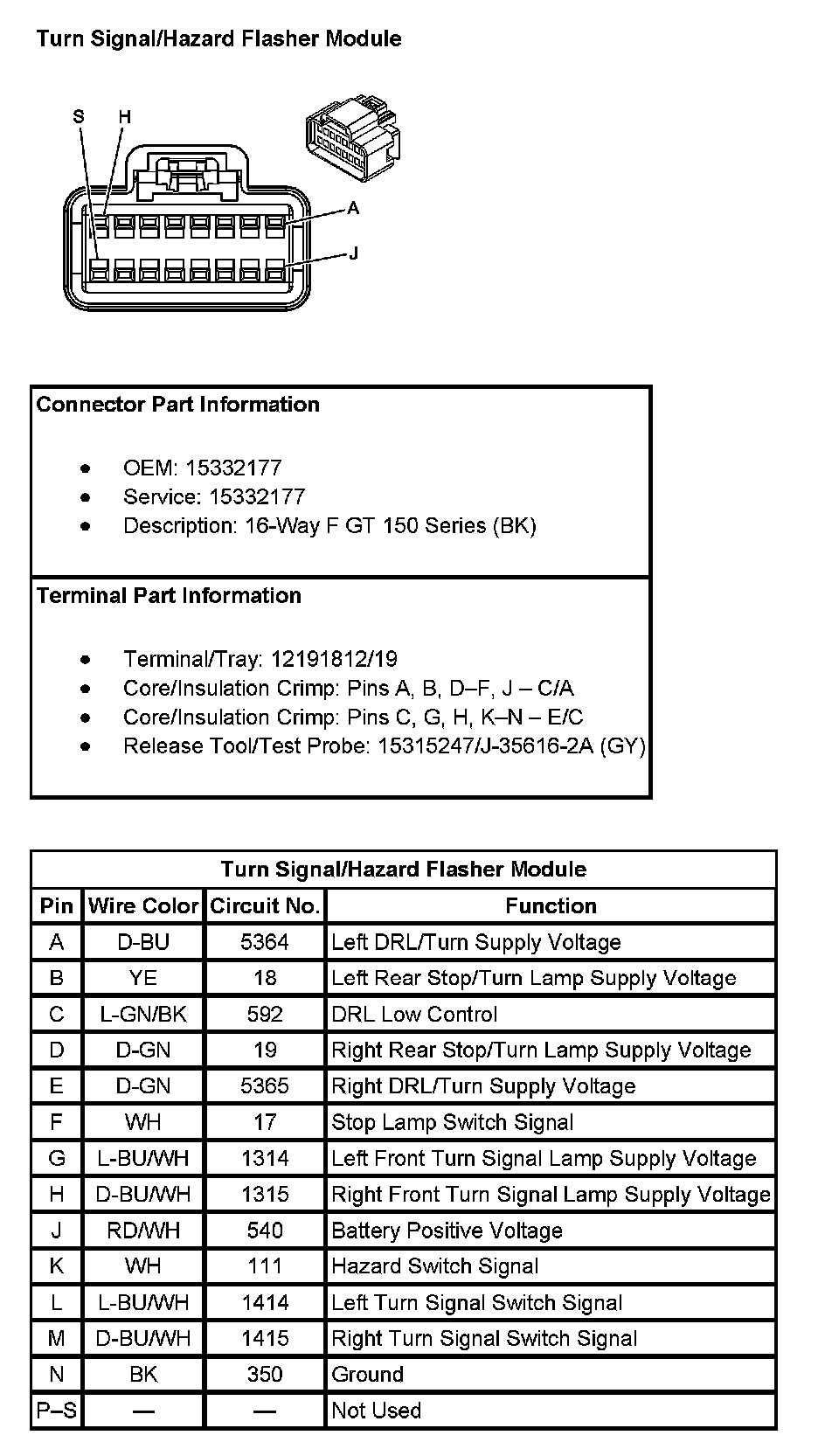

Turn Signal/Hazard Flasher Module:
