Home >> Chevrolet >> 2007 >> Express 2500 V8-4.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fog/Driving Lamp

Fog/Driving Lamp

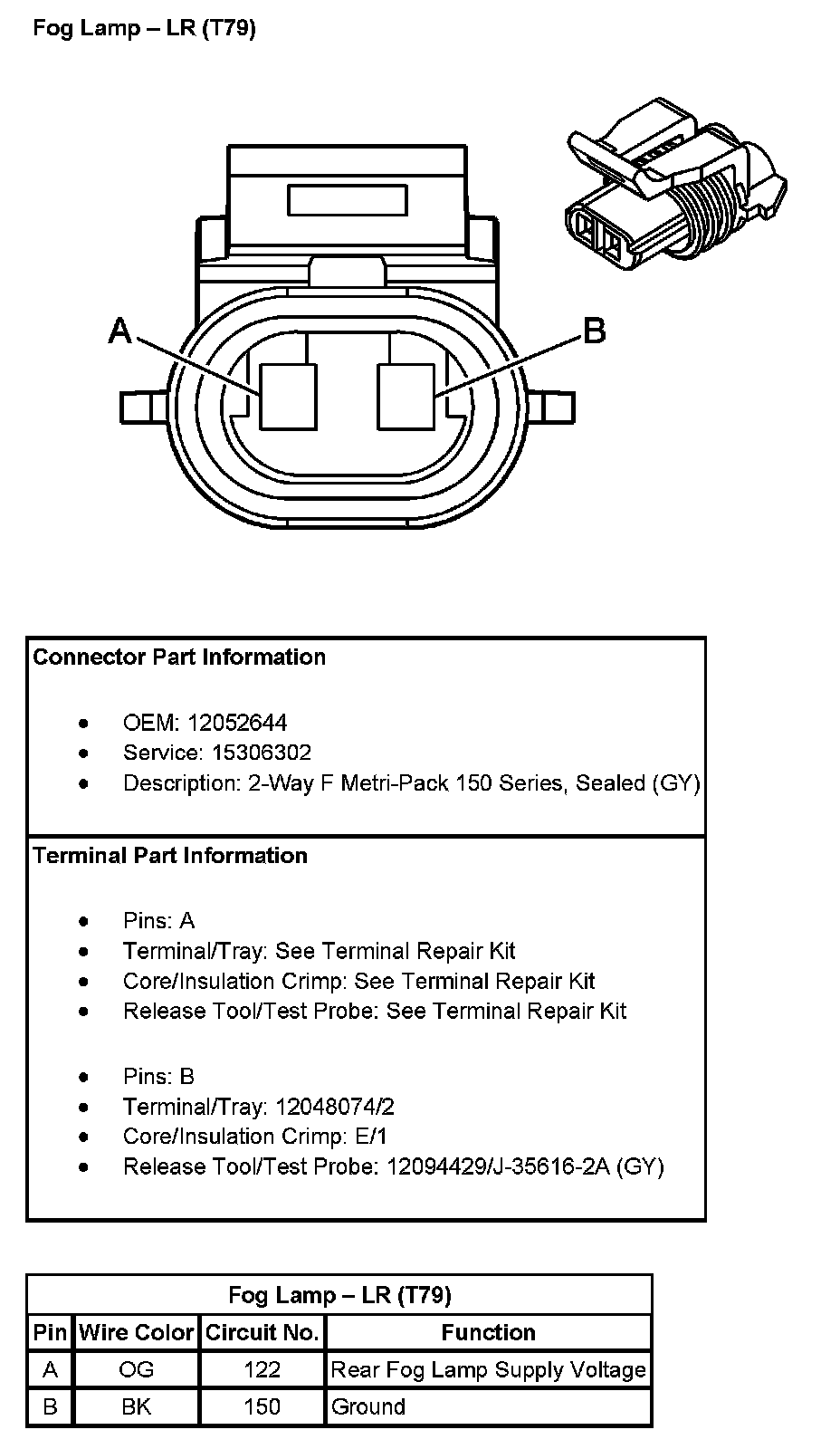

Fog Lamp - LR (With RPO Code T79):

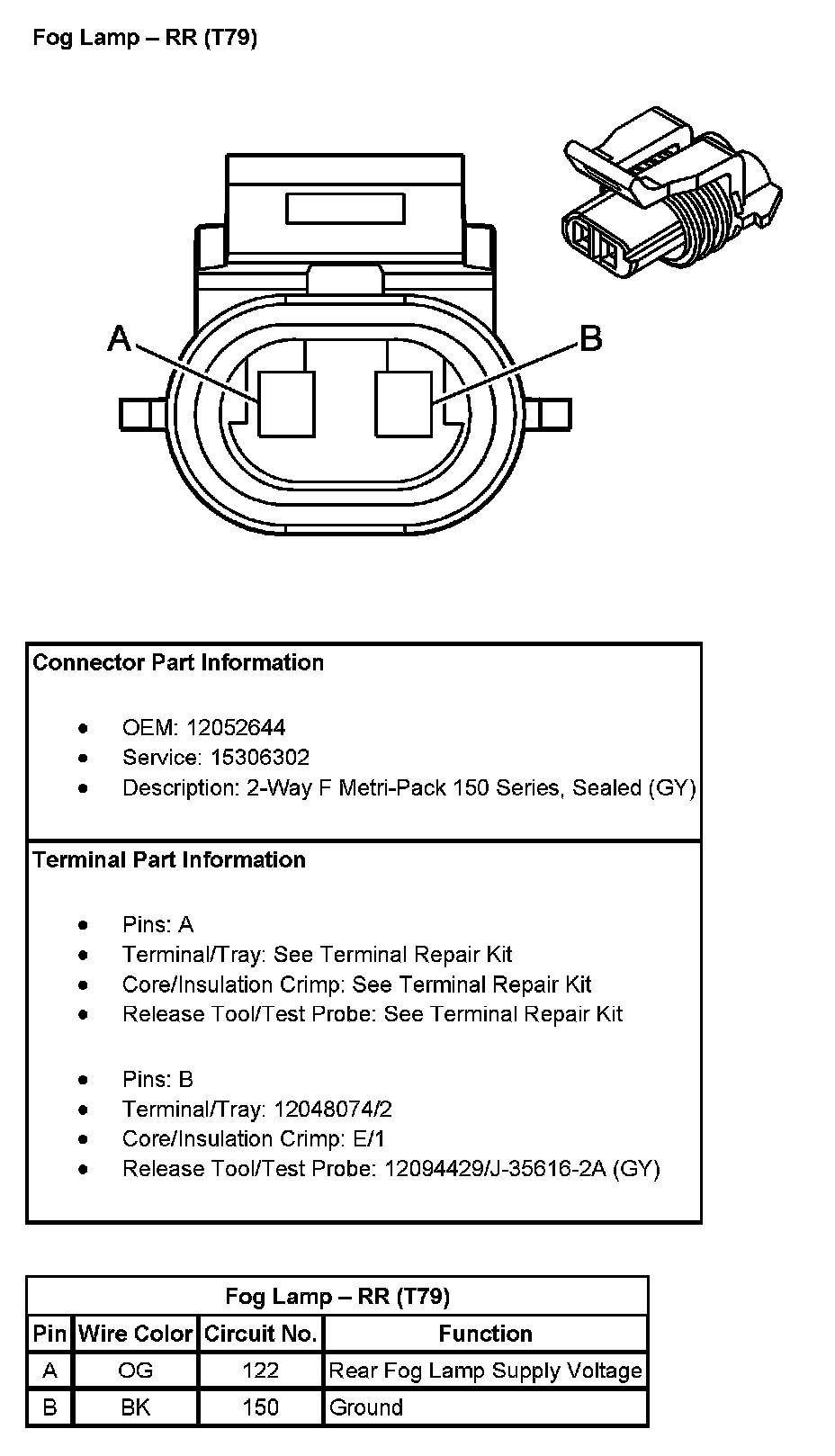

Fog Lamp - RR (With RPO Code T79):
