LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chevrolet
>>
2007
>>
Equinox AWD V6-3.4L
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
Transmission Clearance Specifications
Transmission Clearance Specifications
Transmission Clearance Specifications

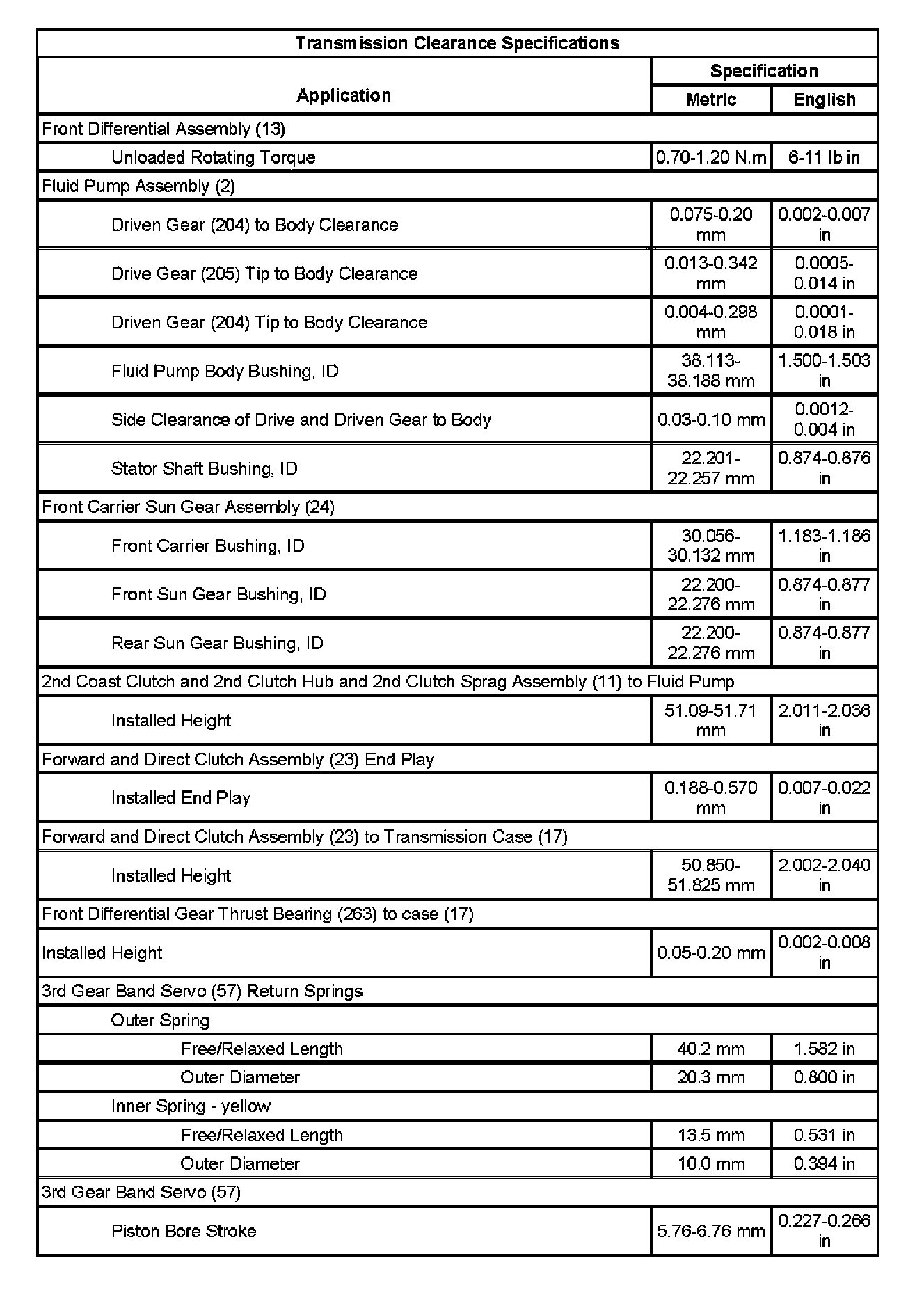

Transmission Clearance Specifications (Part 1):
Transmission Clearance Specifications (Part 2):

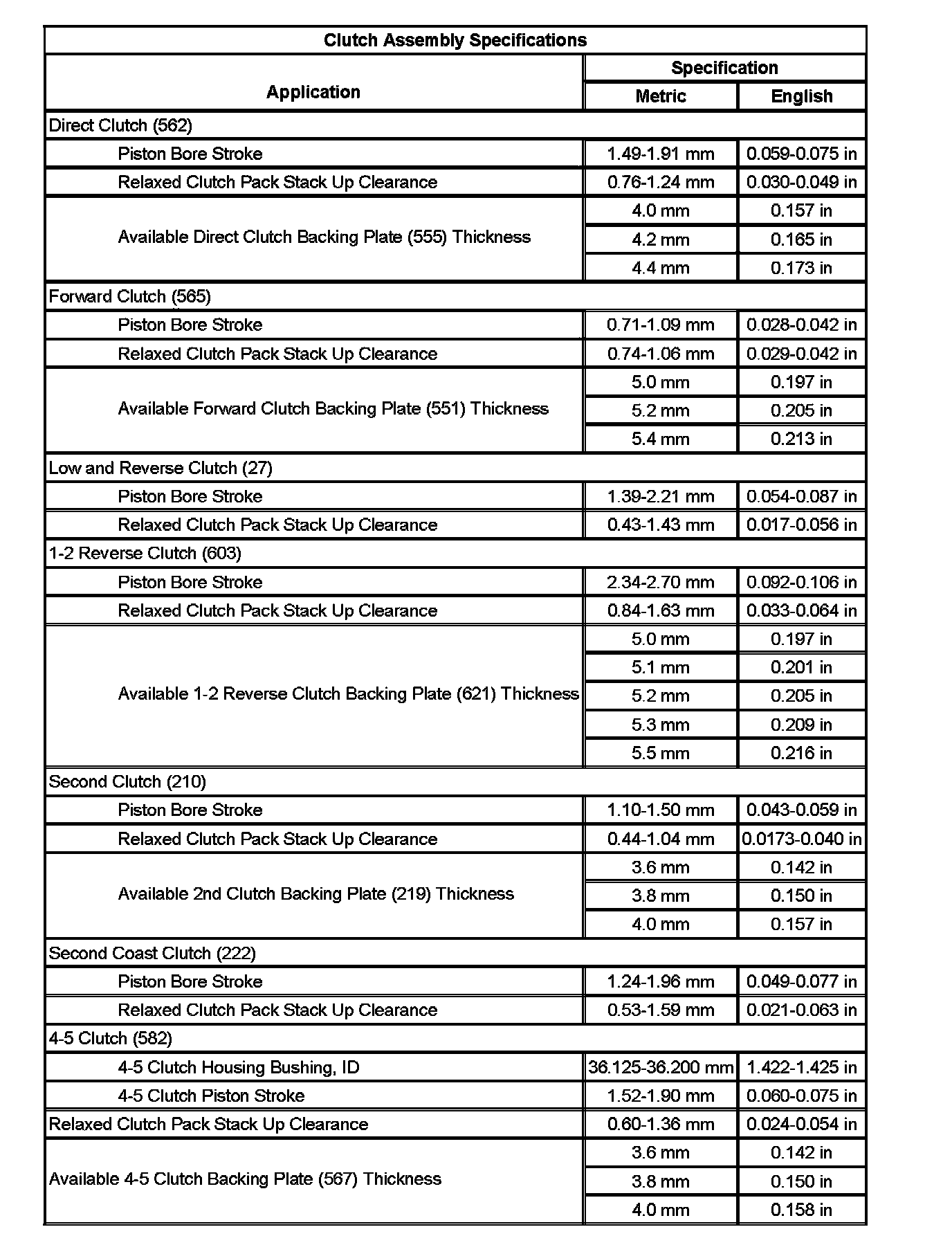

Clutch Assembly Specifications:
