Home >> Chevrolet >> 2007 >> Equinox AWD V6-3.4L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Control Module >> Locations

Ignition Control Module: Locations

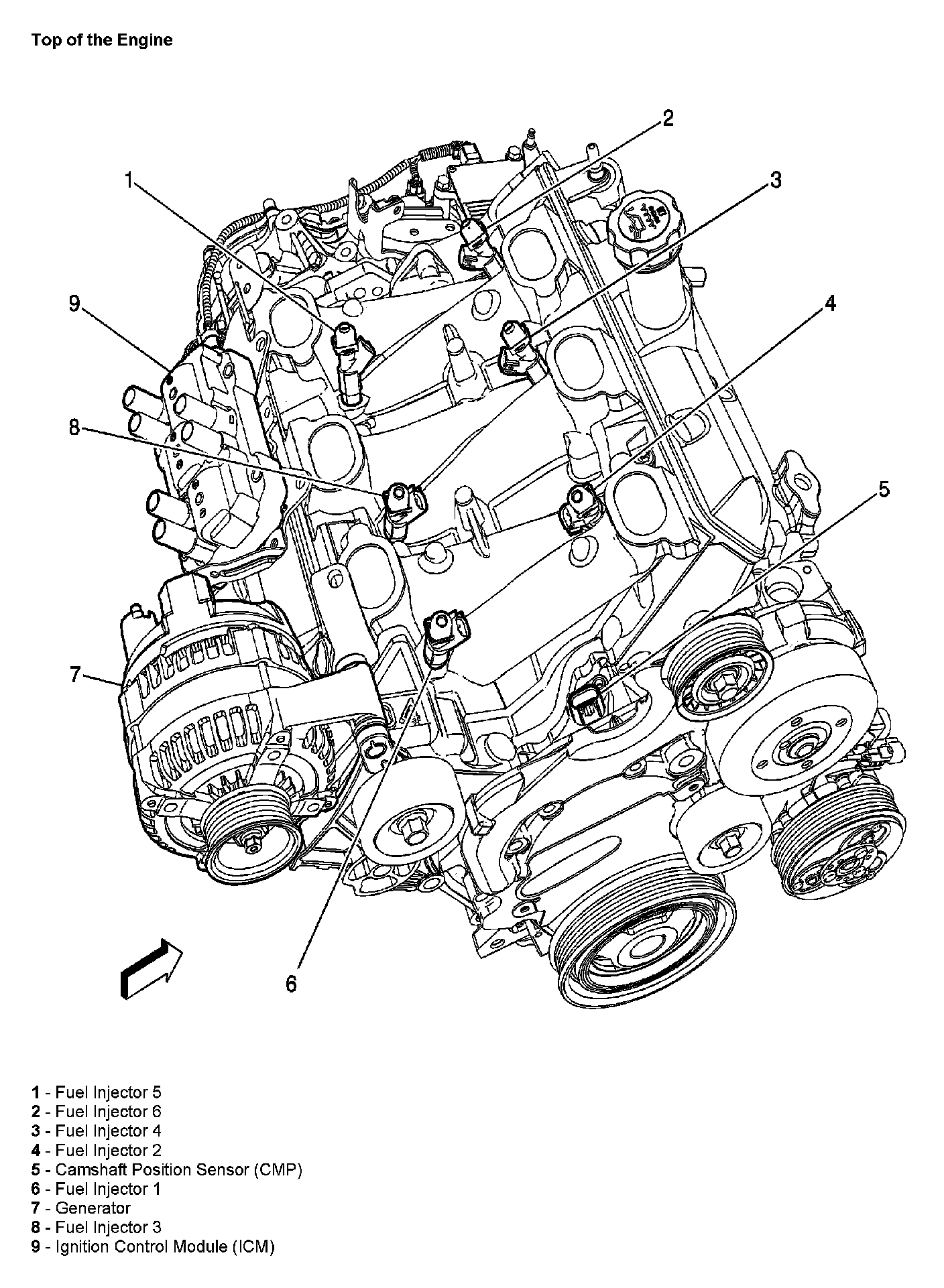

Top Of The Engine:
