I/P And BCM Fuse Block



Electrical Center Identification Views

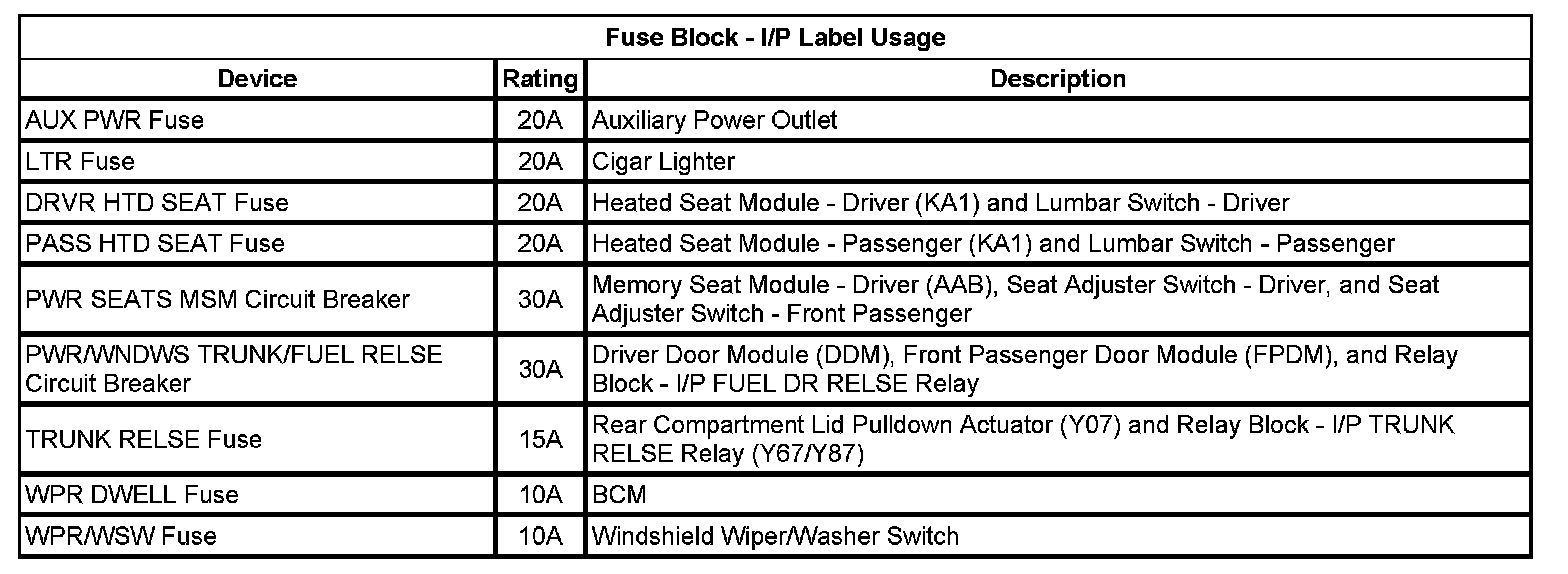

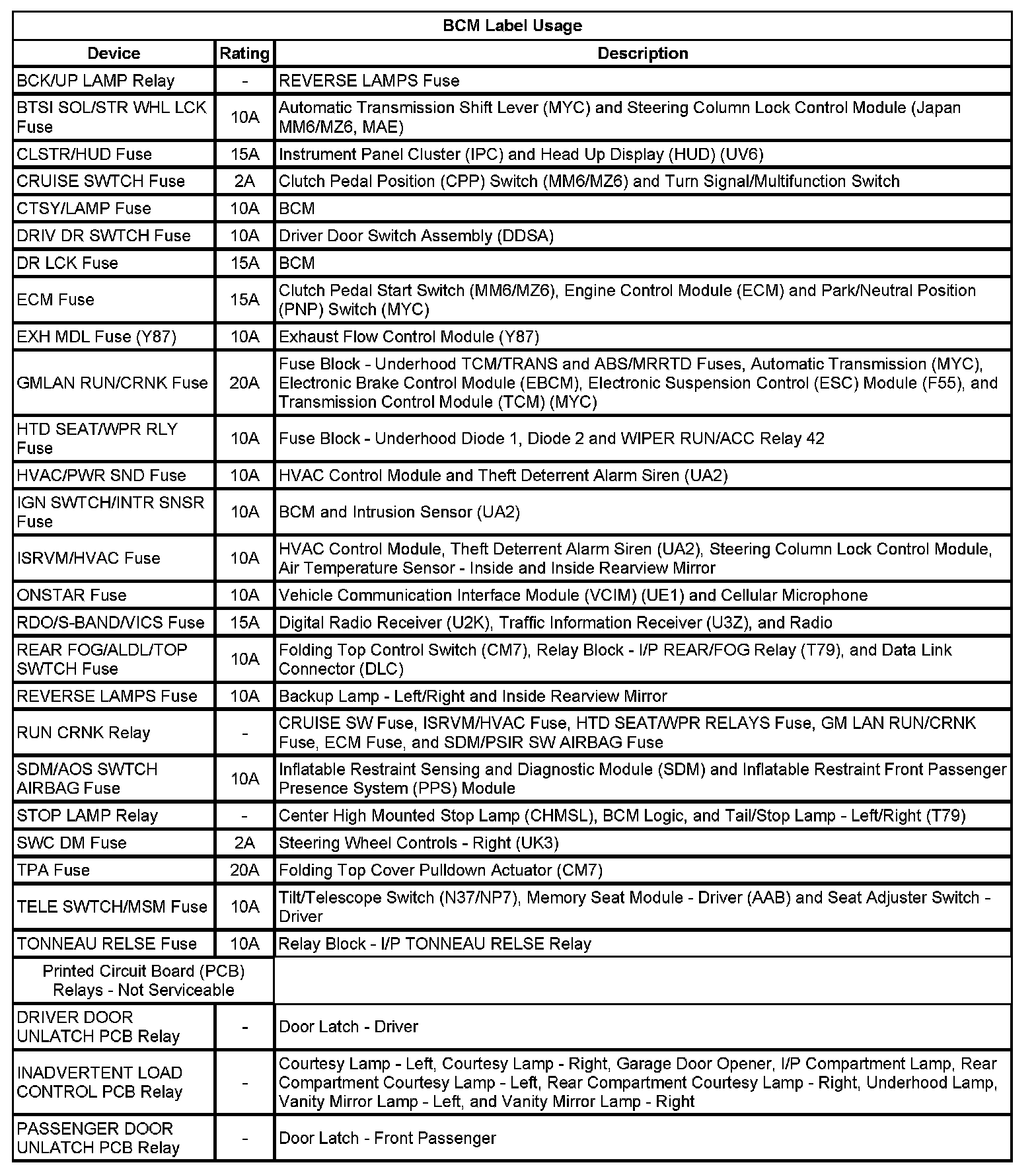

Fuse Block - I/P, Relay Block - I/P and BCM Label
