Relay Block - I/P



Electrical Center Identification Views

Relay Block - I/P Top View






Relay Block - I/P Bottom View

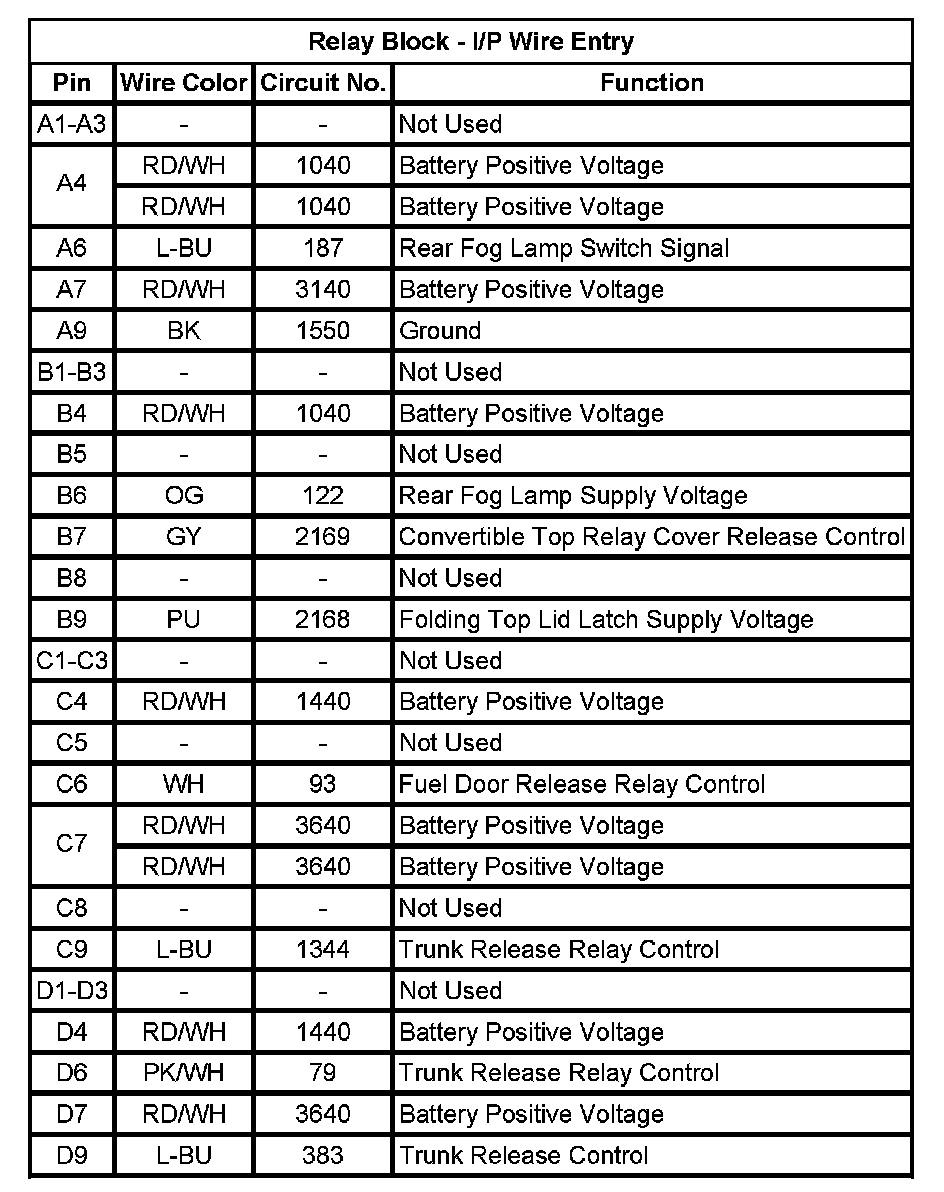

Relay Block - I/P Wire Entry
