Fuse Block - I/P



Electrical Center Identification Views

Fuse Block - I/P Top View






Fuse Block - I/P Bottom View

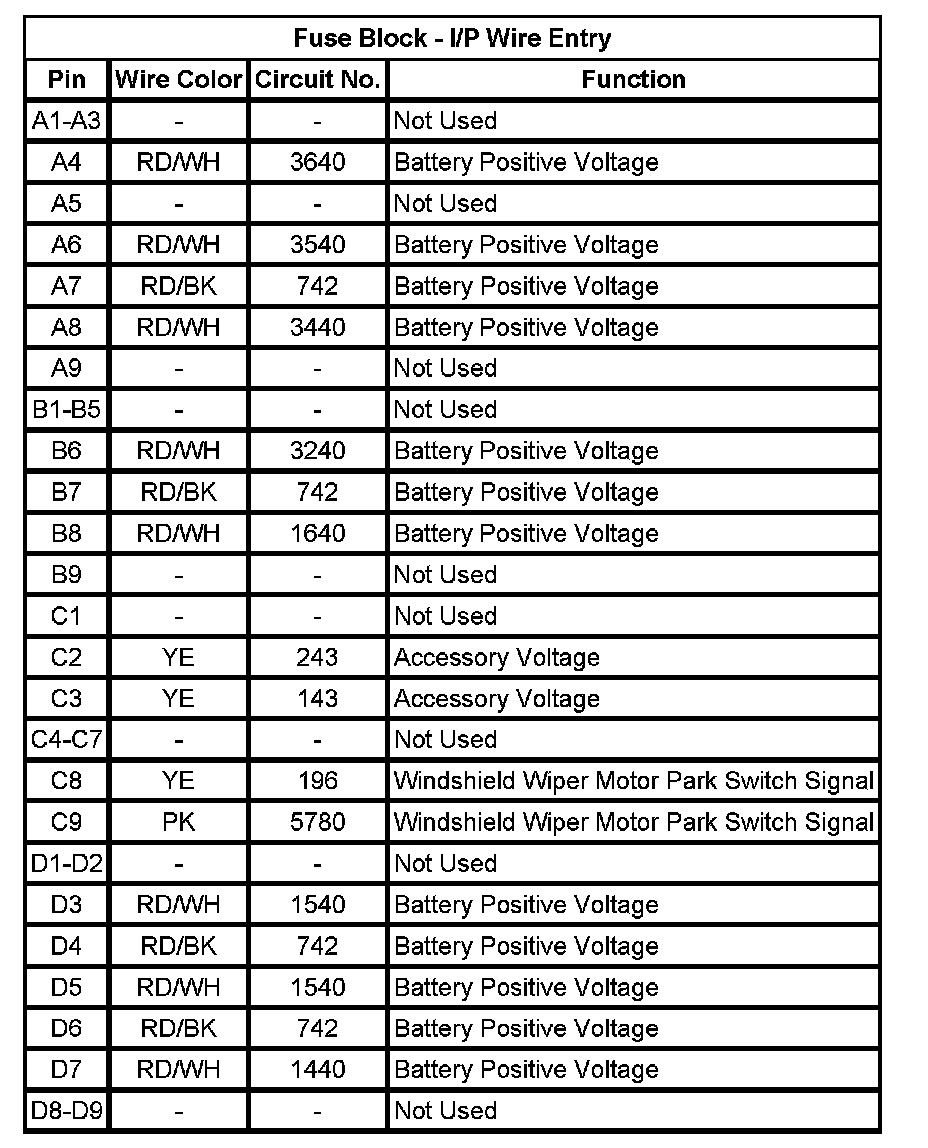

Fuse Block - I/P Wire Entry
