Structure Identification (Z06)



Structure Identification (Z06)

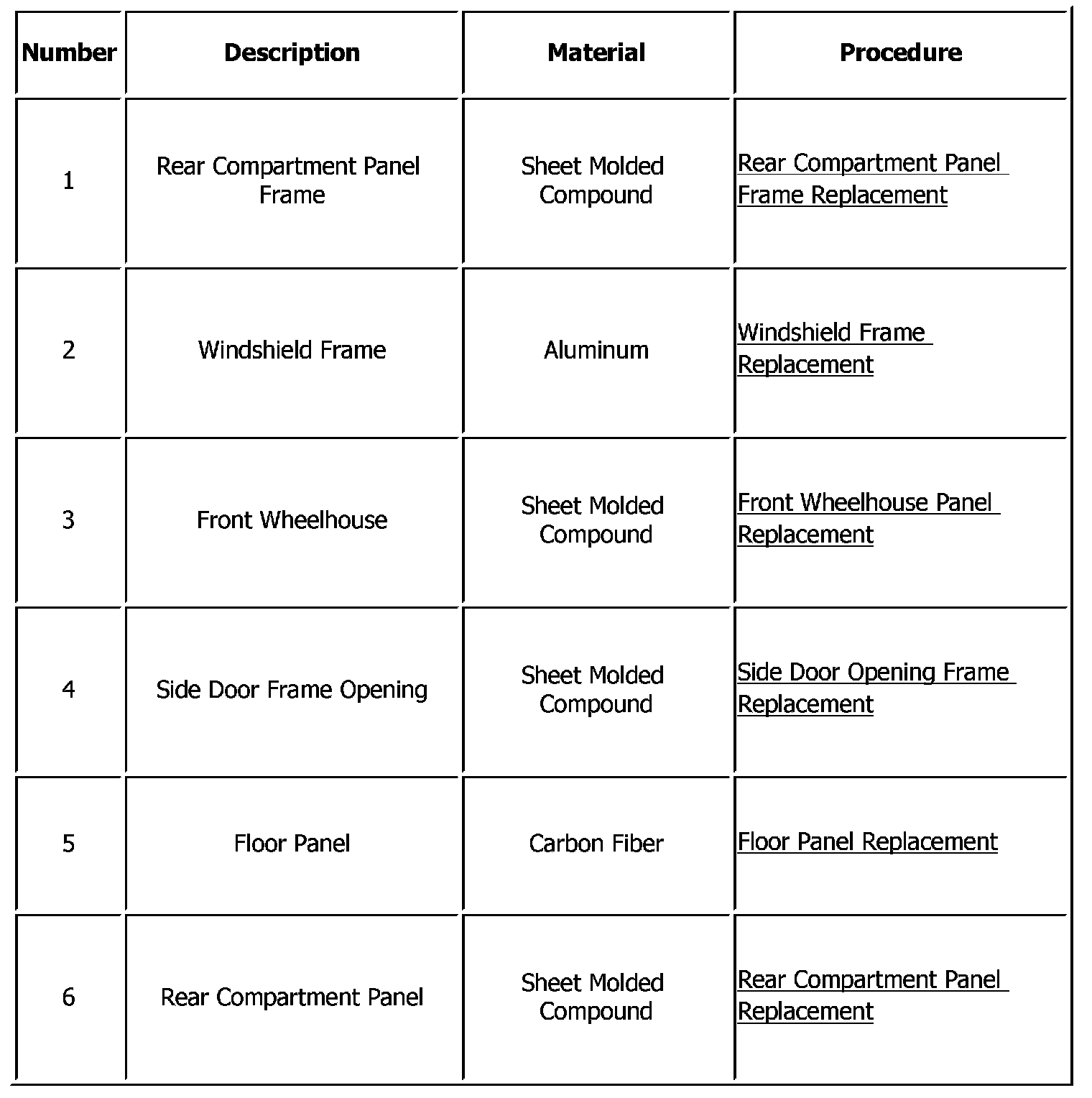

Figure 1: Inner Panel Identification

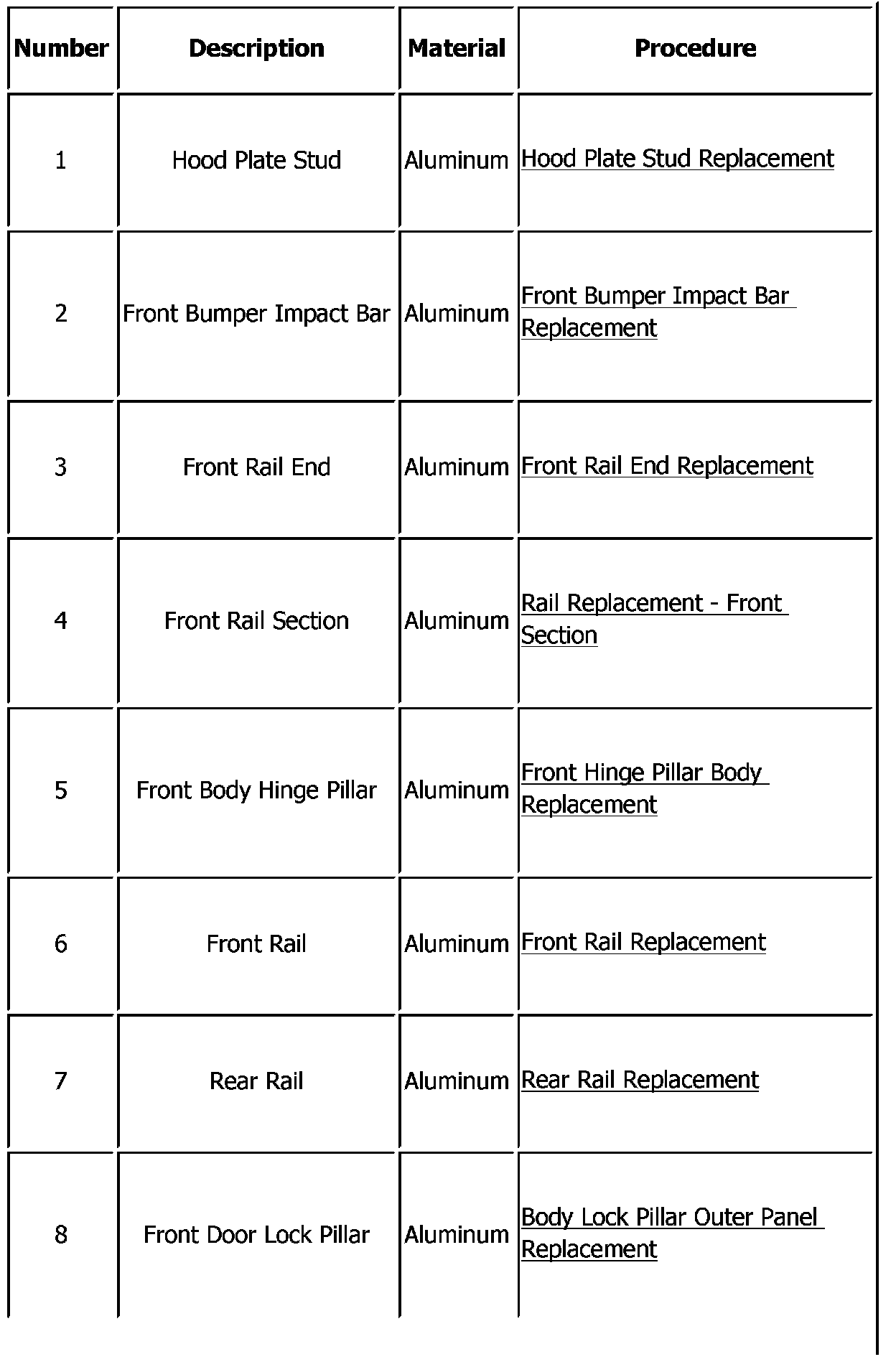

Figure 2: Frame Identification
