Windshield Washer Pump

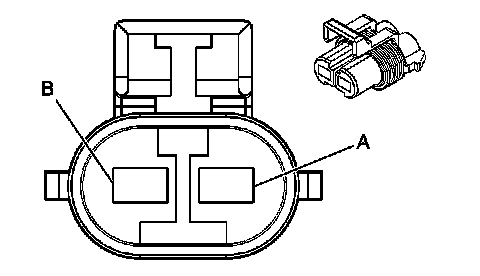

Wiper/Washer Connector End Views

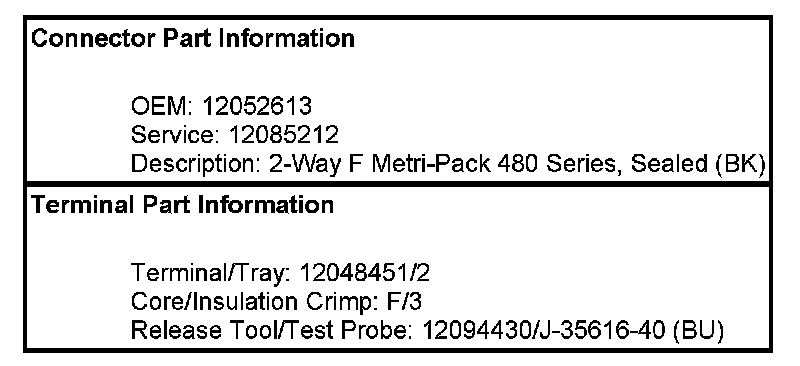

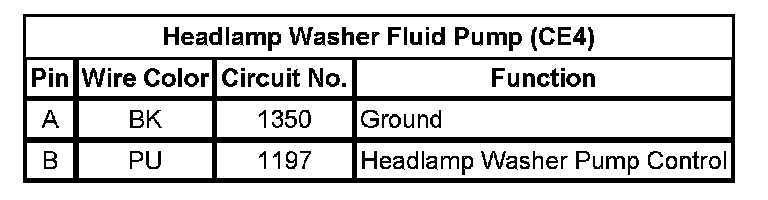

Headlamp Washer Fluid Pump (CE4)

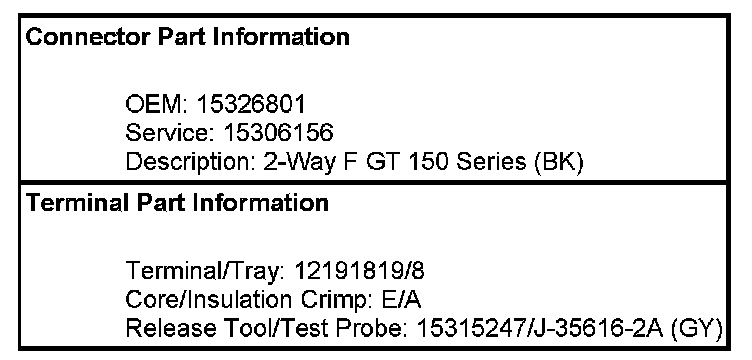

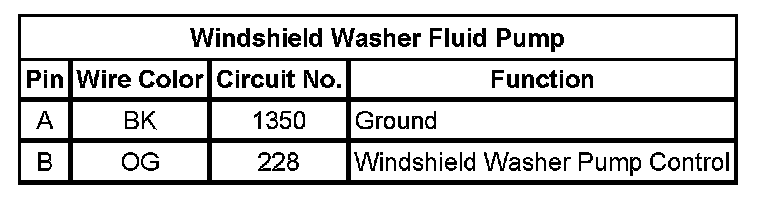

Windshield Washer Fluid Pump
