Vanity Lamp



Lighting Systems Connector End Views

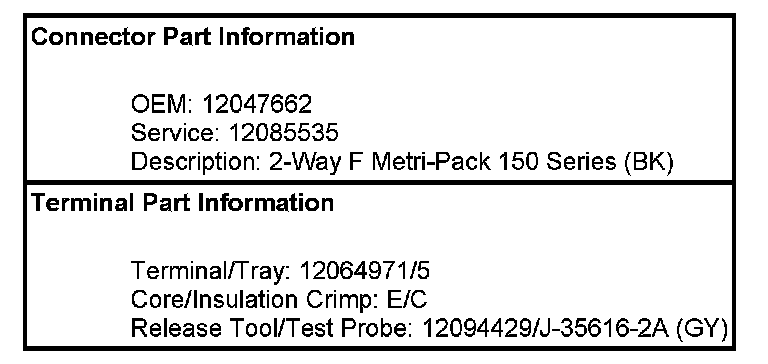

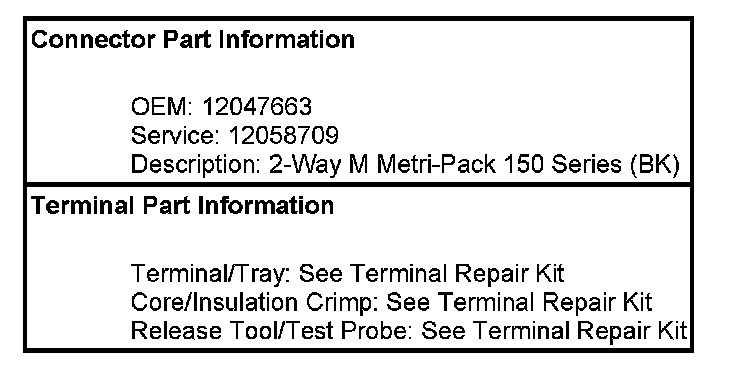

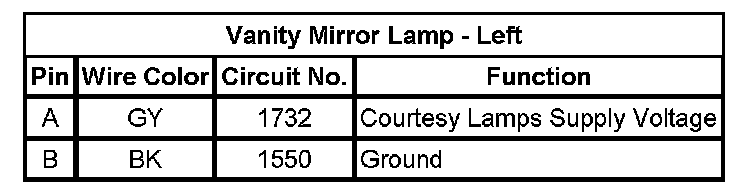

Vanity Mirror Lamp - Left

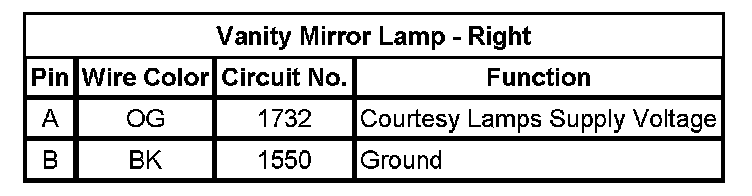

Vanity Mirror Lamp - Right
