Headlamp



Lighting Systems Connector End Views

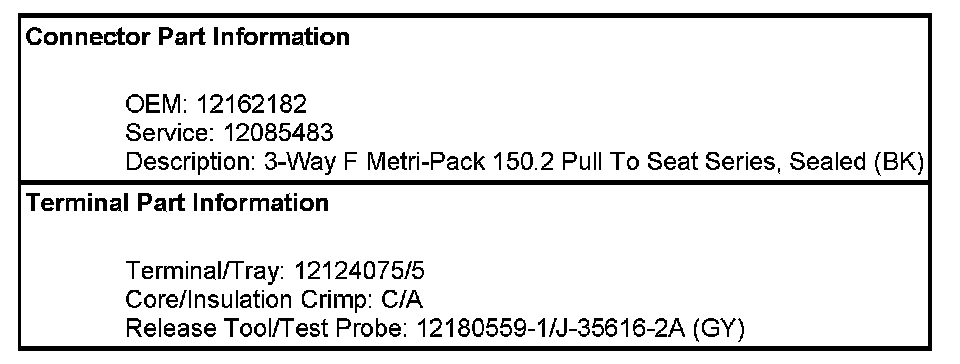

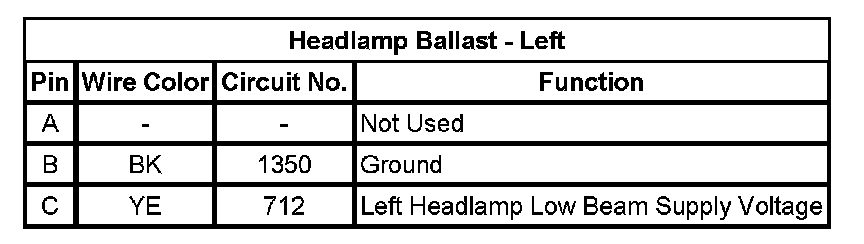

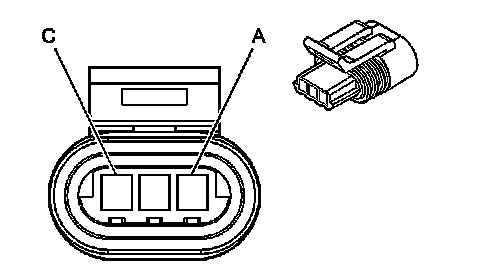

Headlamp Ballast - Left

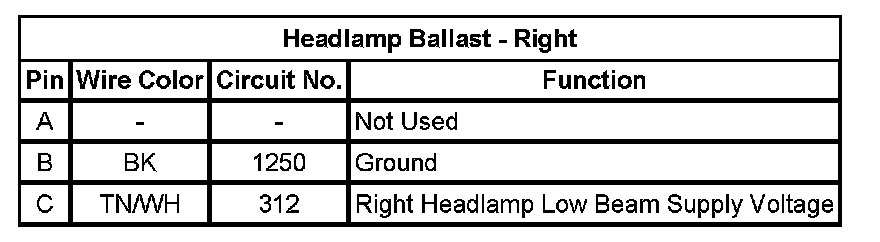

Headlamp Ballast - Right

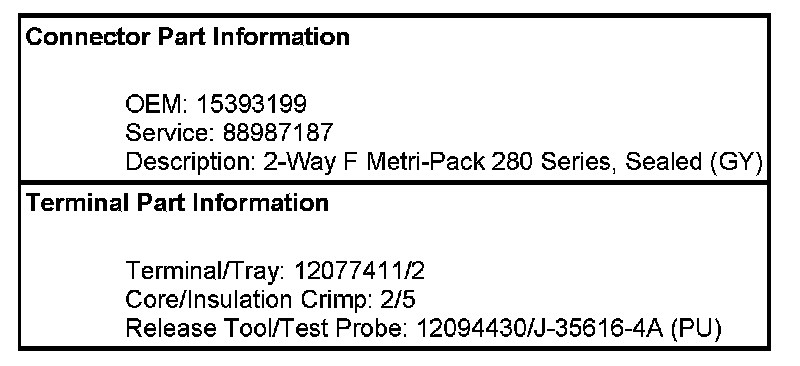

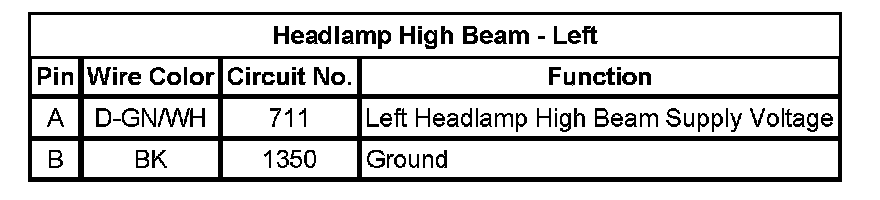

Headlamp High Beam - Left

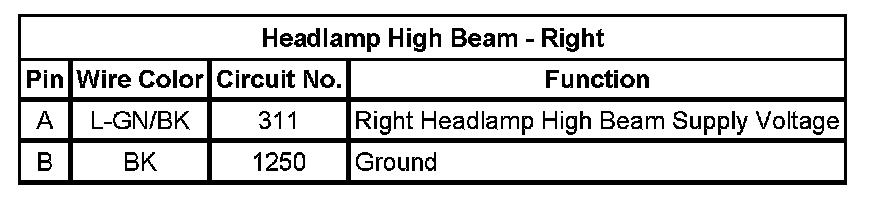

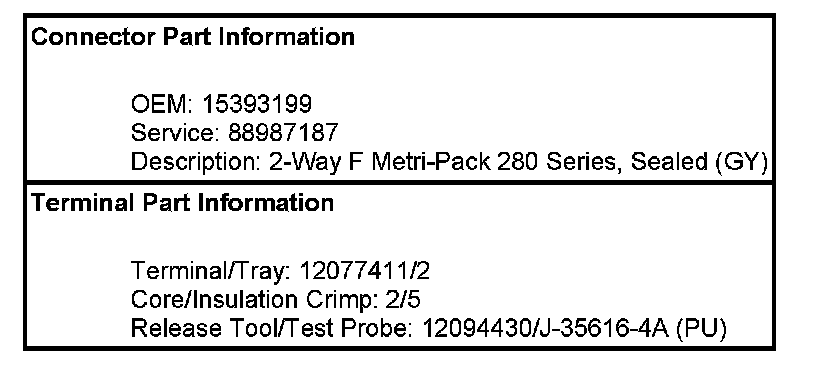

Headlamp High Beam - Right
