Front Door Latch



Vehicle Access Connector End Views

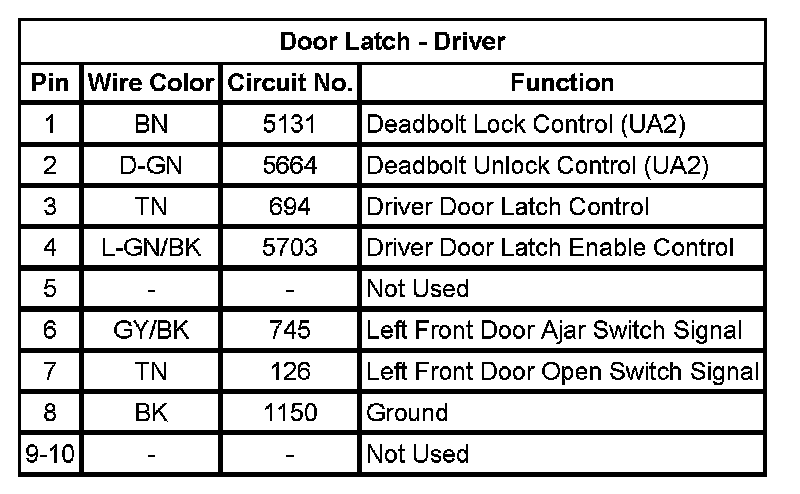

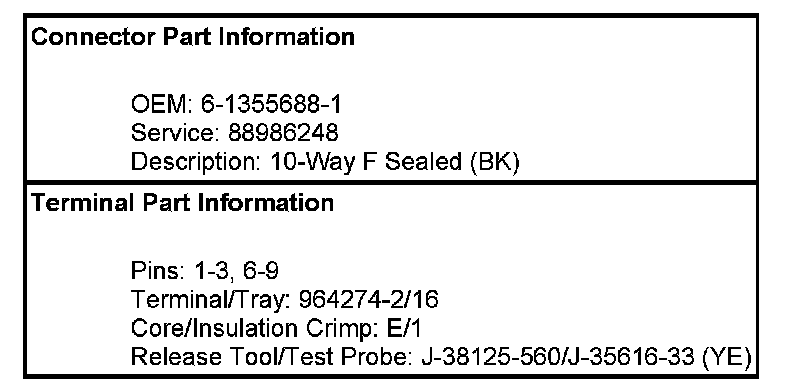

Door Latch - Driver

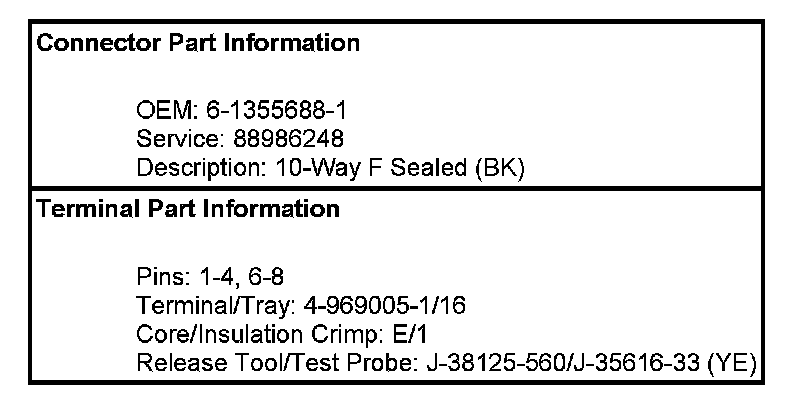

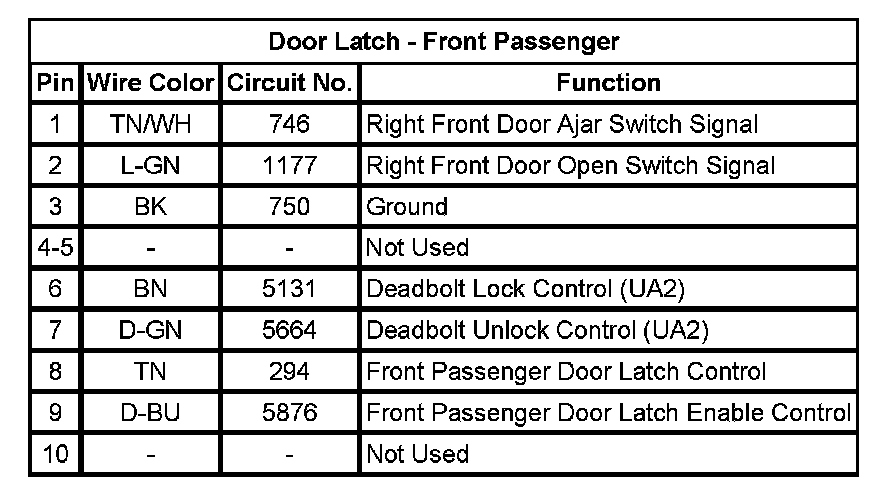

Door Latch - Front Passenger
