System Diagram

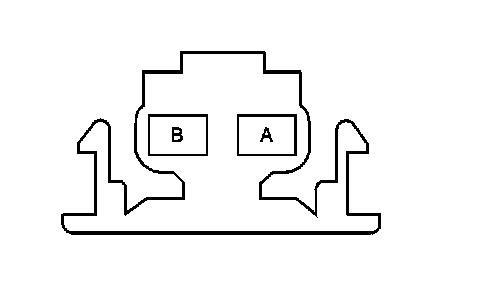

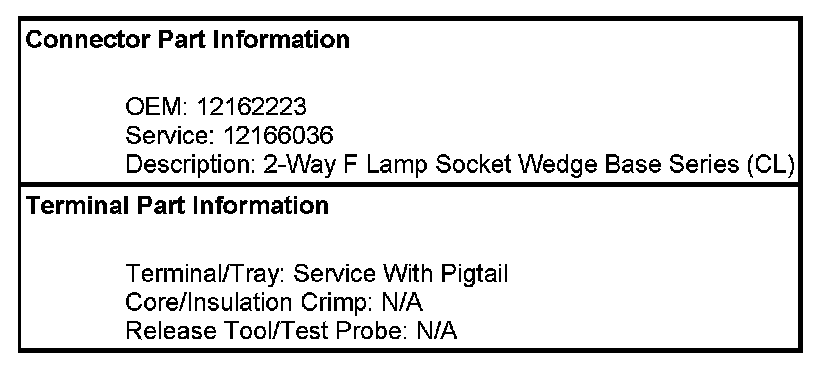

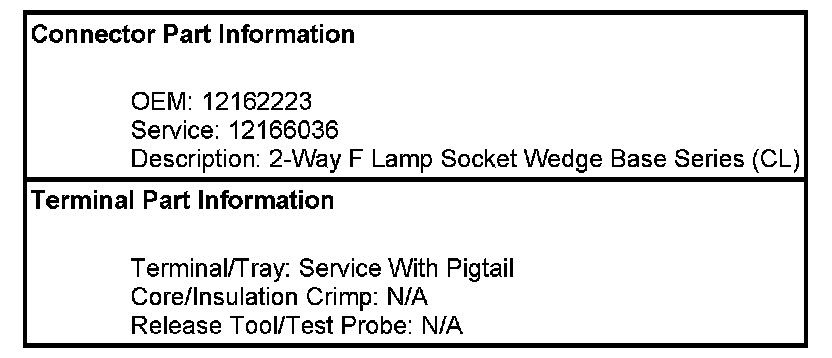

Lighting Systems Connector End Views
Courtesy Lamp - Left
Courtesy Lamp - Right
Rear Compartment Courtesy Lamp - Left

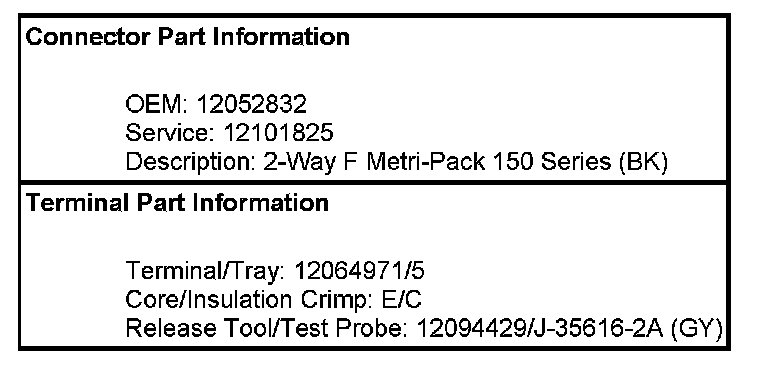

A/T Shift Lock Control Solenoid:
Rear Compartment Courtesy Lamp - Right
A/T Shift Lock Control Solenoid:
Lighting Systems Connector End Views

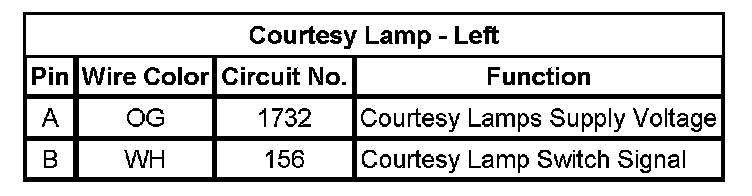

Courtesy Lamp - Left

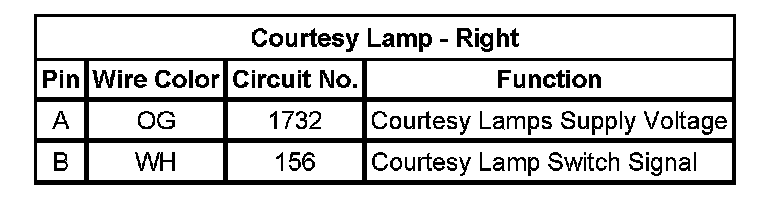

Courtesy Lamp - Right

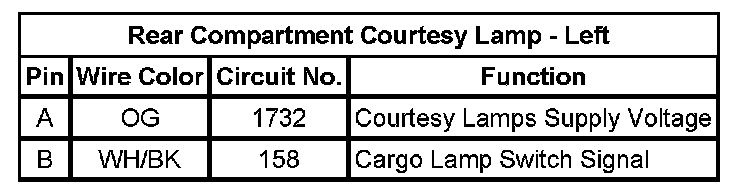

Rear Compartment Courtesy Lamp - Left

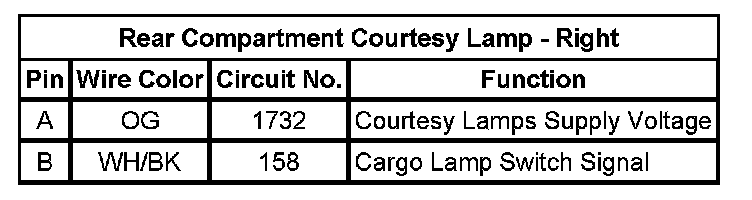

Rear Compartment Courtesy Lamp - Right
