Impact Sensor



SIR Connector End Views

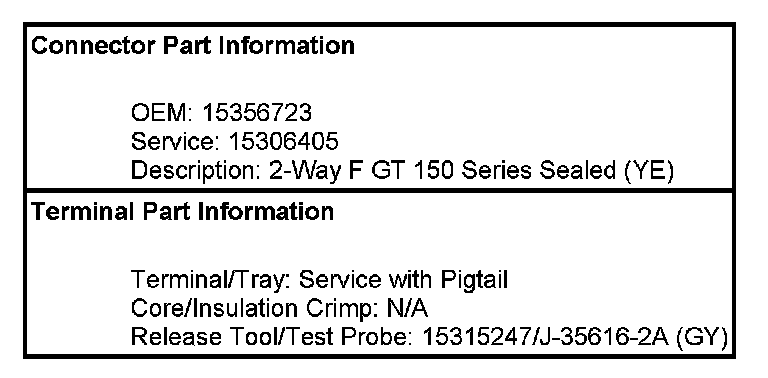

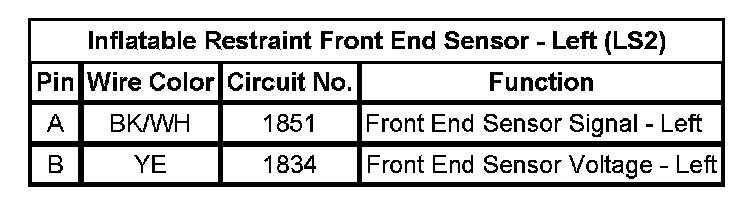

Inflatable Restraint Front End Sensor - Left (LS2)

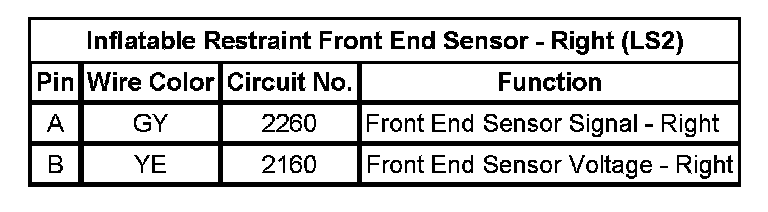

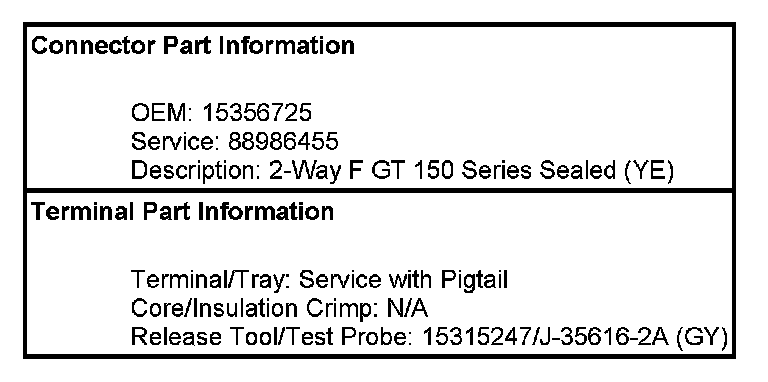

Inflatable Restraint Front End Sensor - Right (LS2)

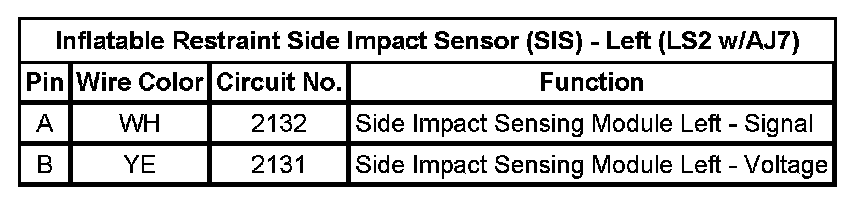

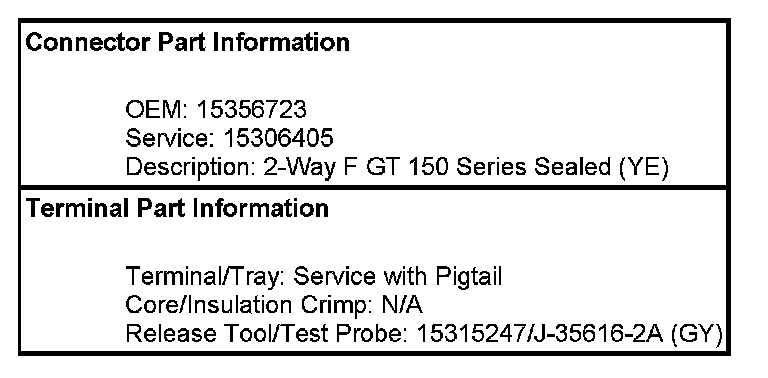

Inflatable Restraint Side Impact Sensor (SIS) - Left (LS2 w/AJ7)

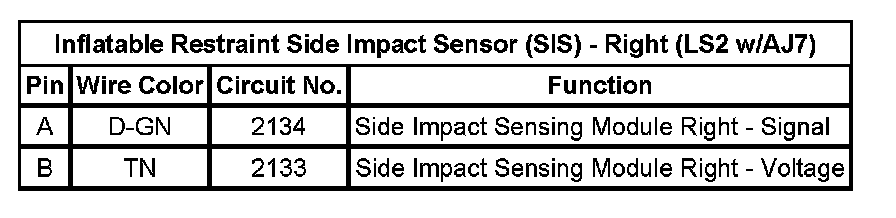

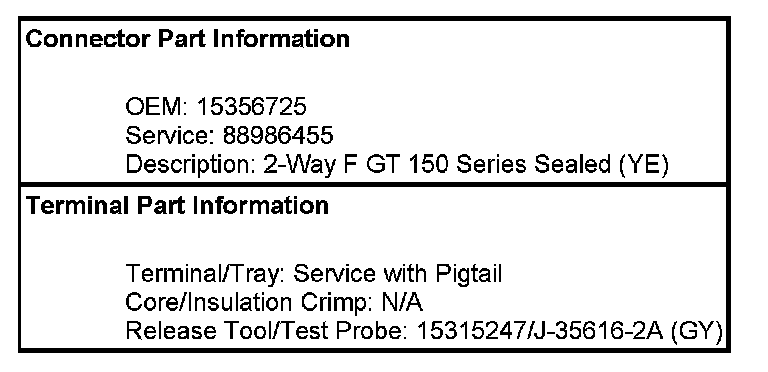

Inflatable Restraint Side Impact Sensor (SIS) - Right (LS2 w/AJ7)

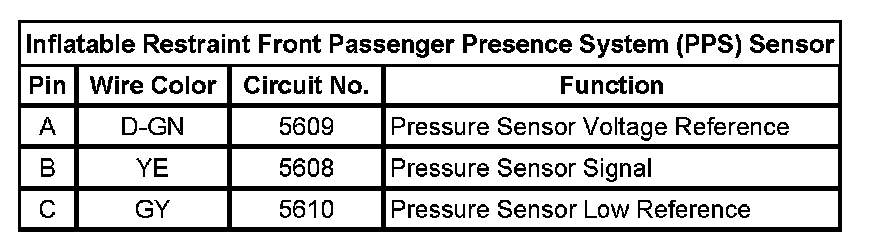

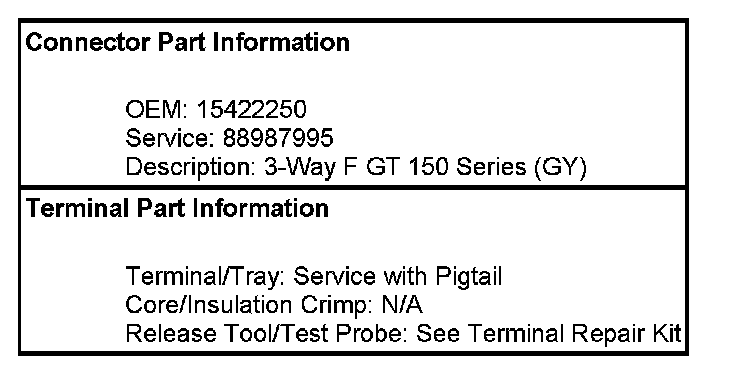

Inflatable Restraint Front Passenger Presence System (PPS) Sensor
