Home >> Chevrolet >> 2007 >> Colorado 2WD L4-2.9L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Switch

Seat Temperature Switch

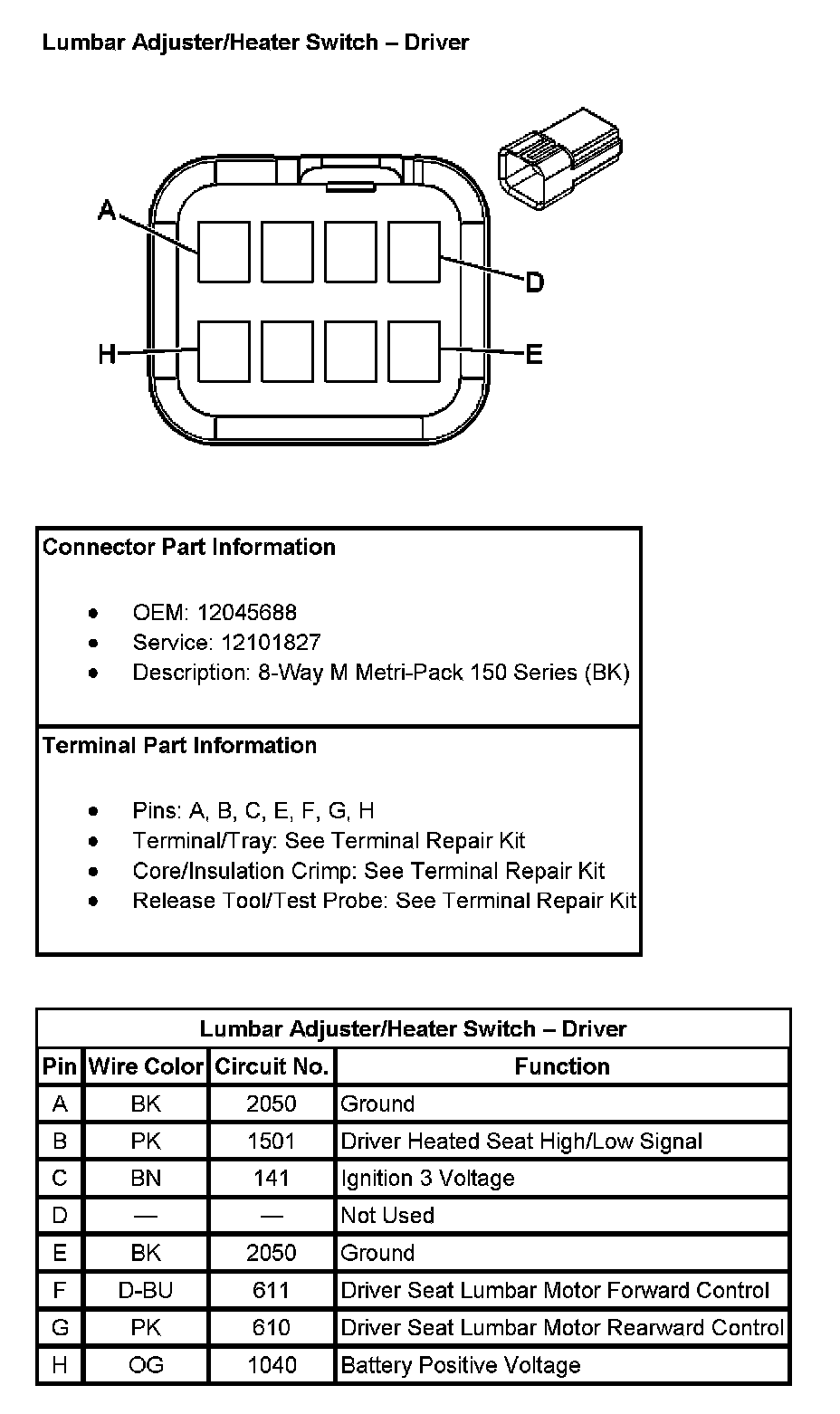

Lumbar Adjuster/Heater Switch - Driver:

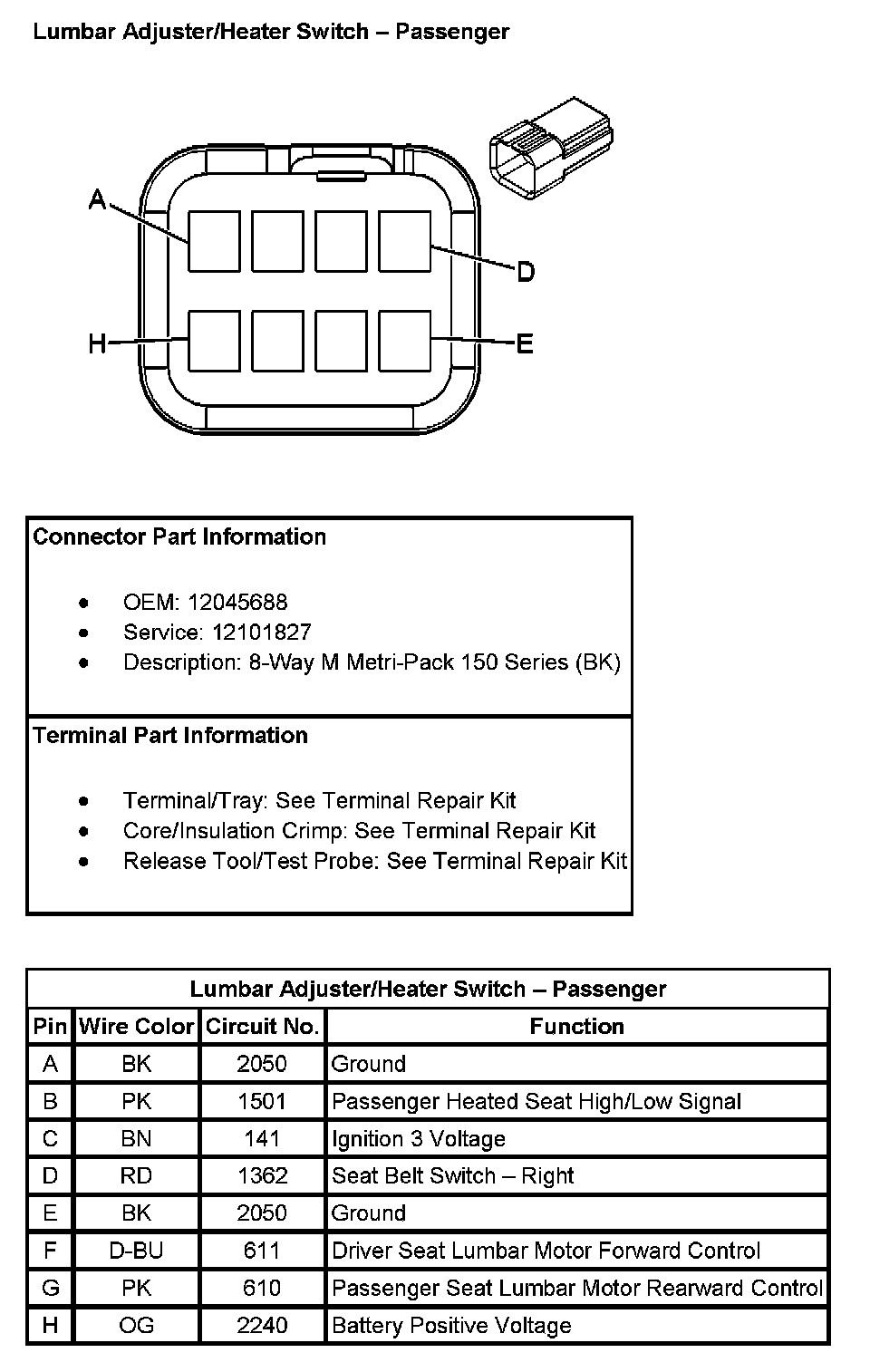

Lumbar Adjuster/Heater Switch - Passenger:
