Marker Lamp

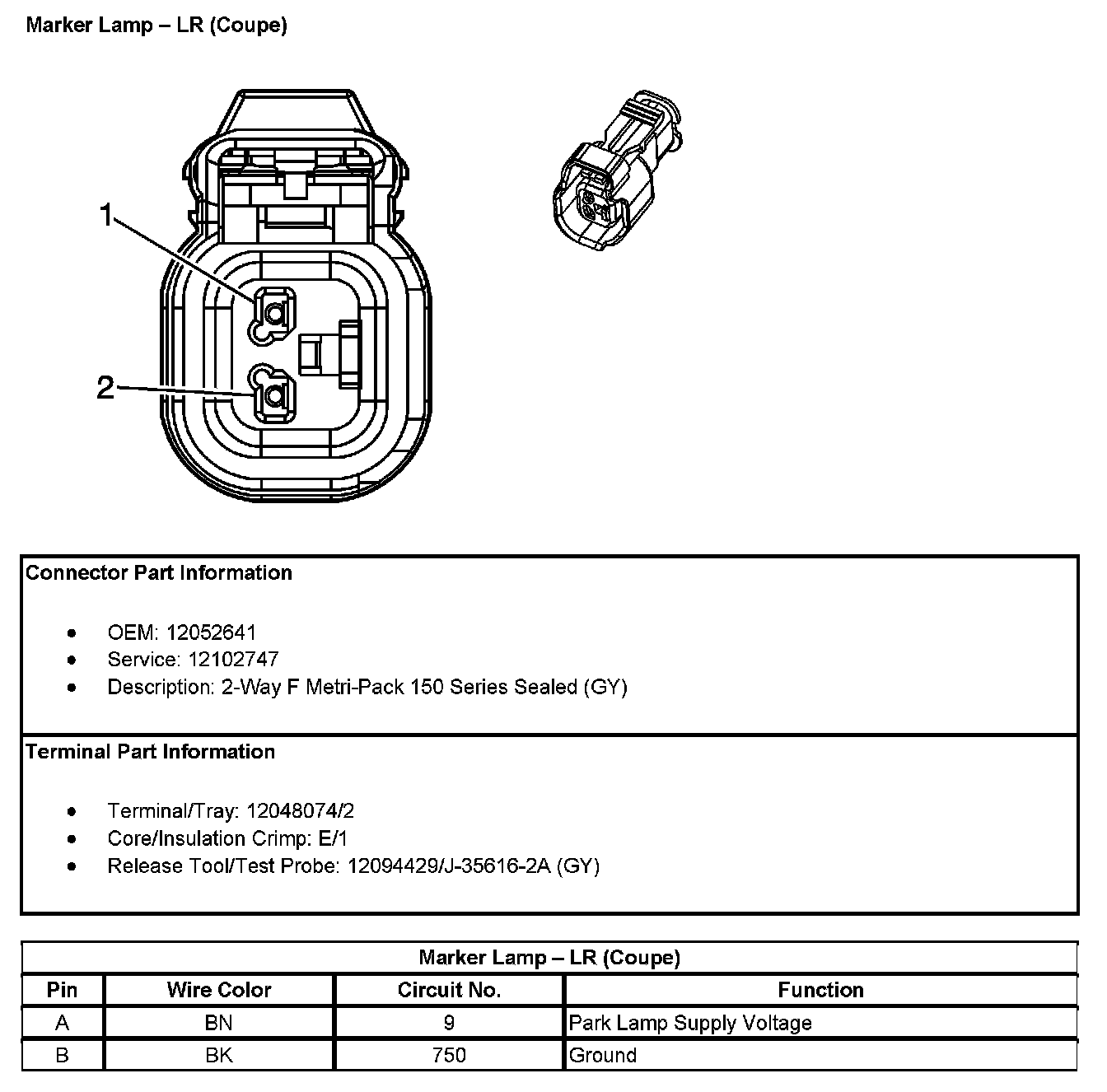

Marker Lamp - LR (Coupe):

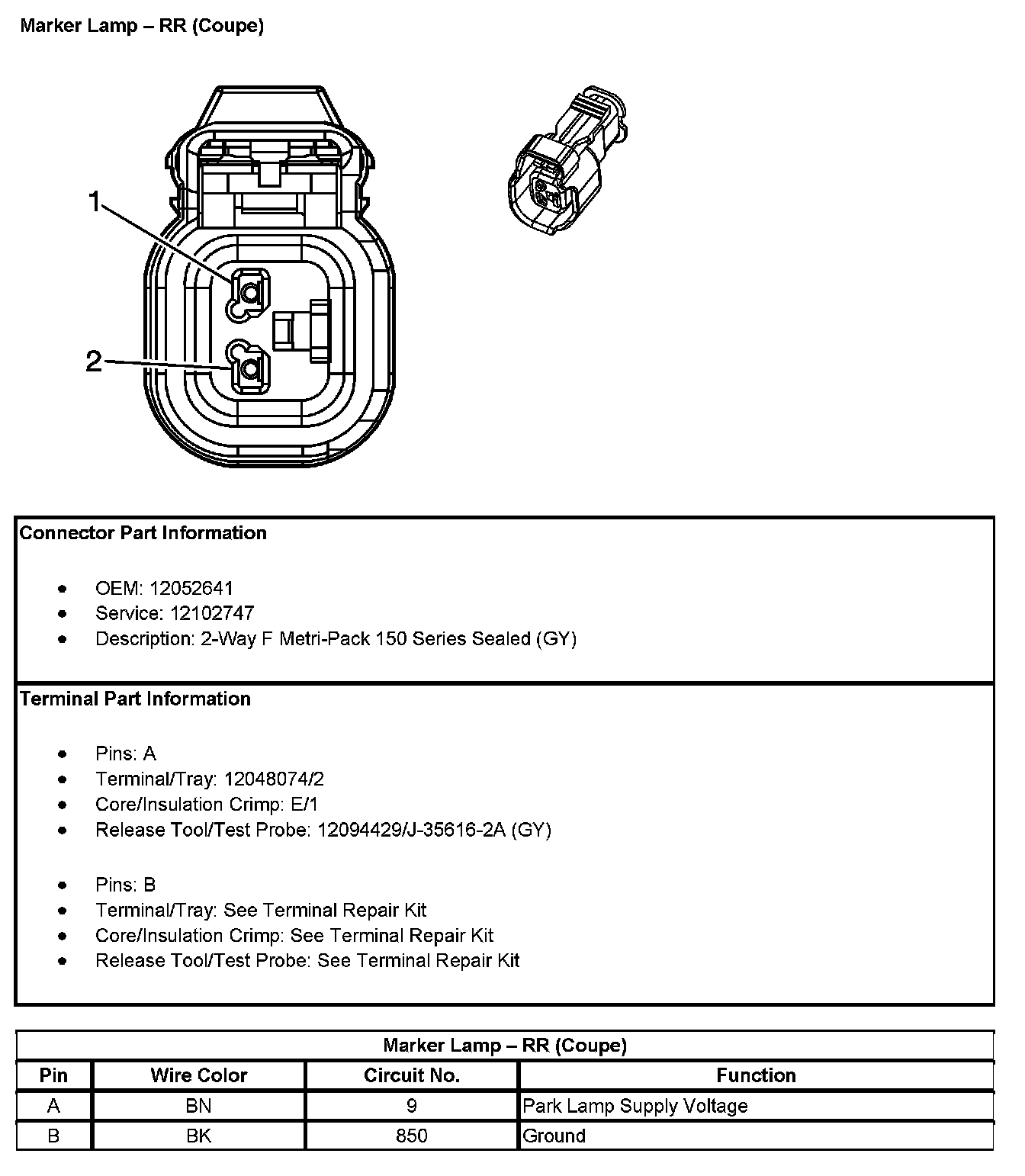

Marker Lamp - RR (Coupe):

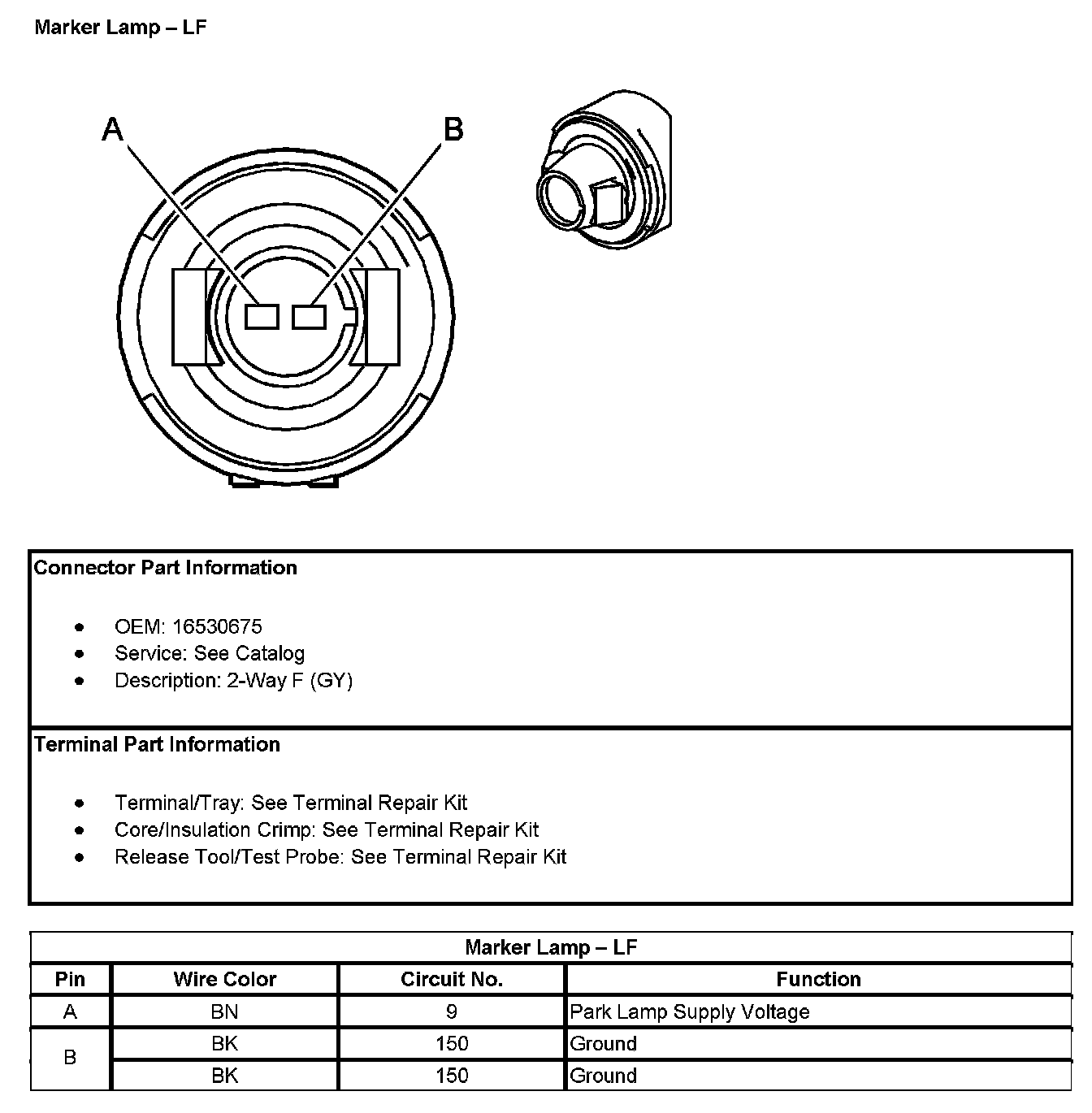

Marker Lamp - LF:

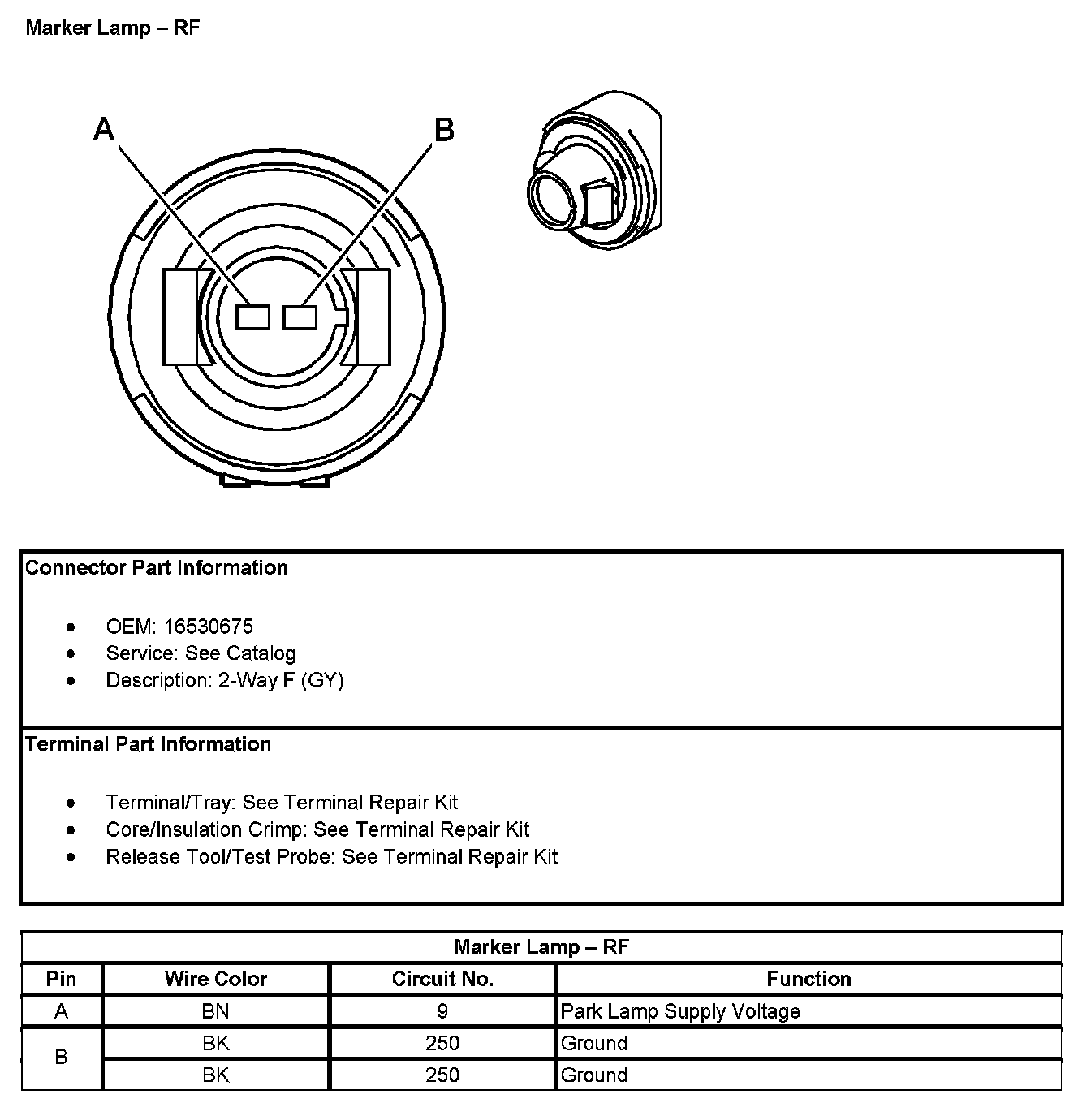

Marker Lamp - RF:

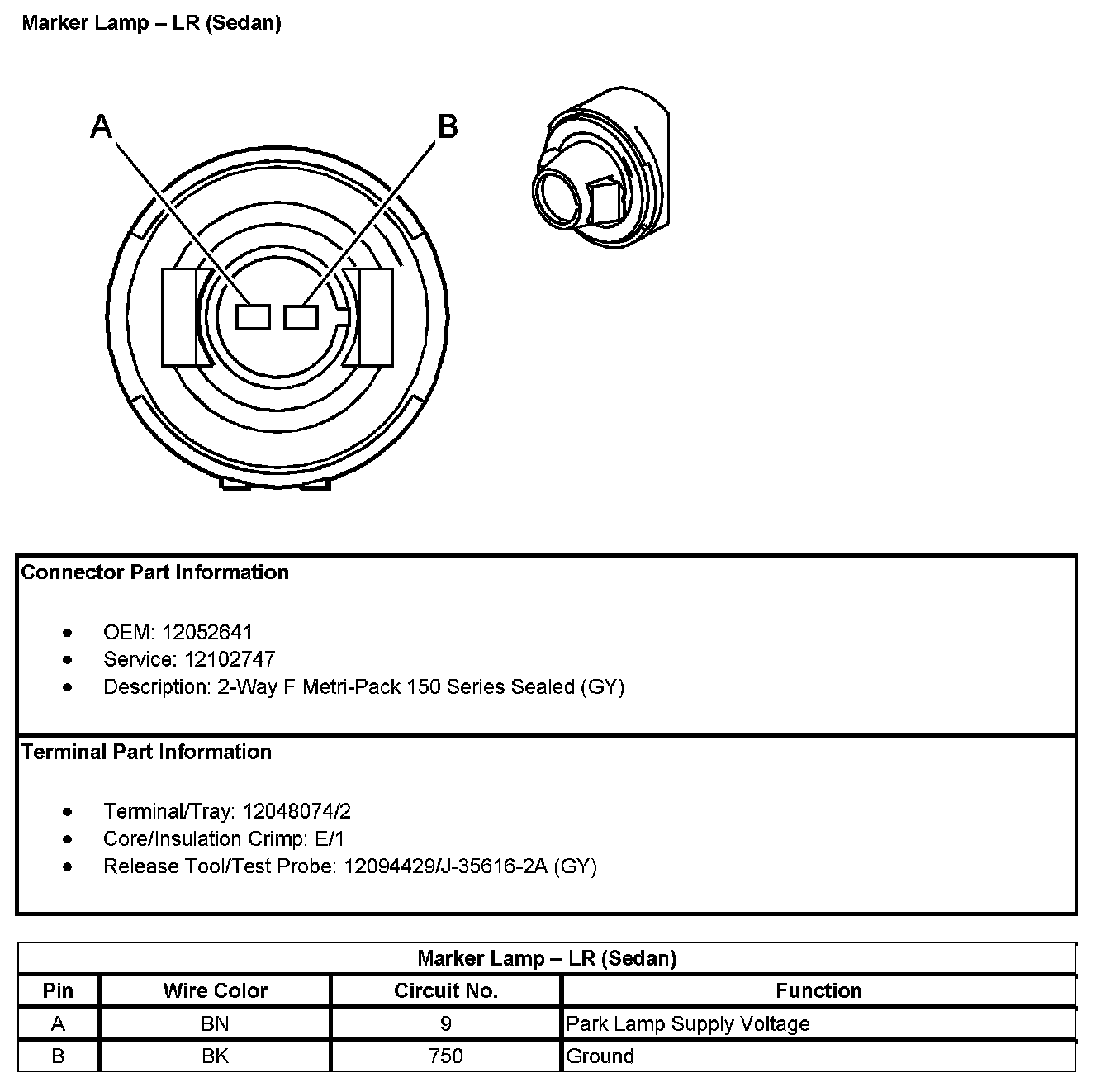

Marker Lamp - LR (Sedan):

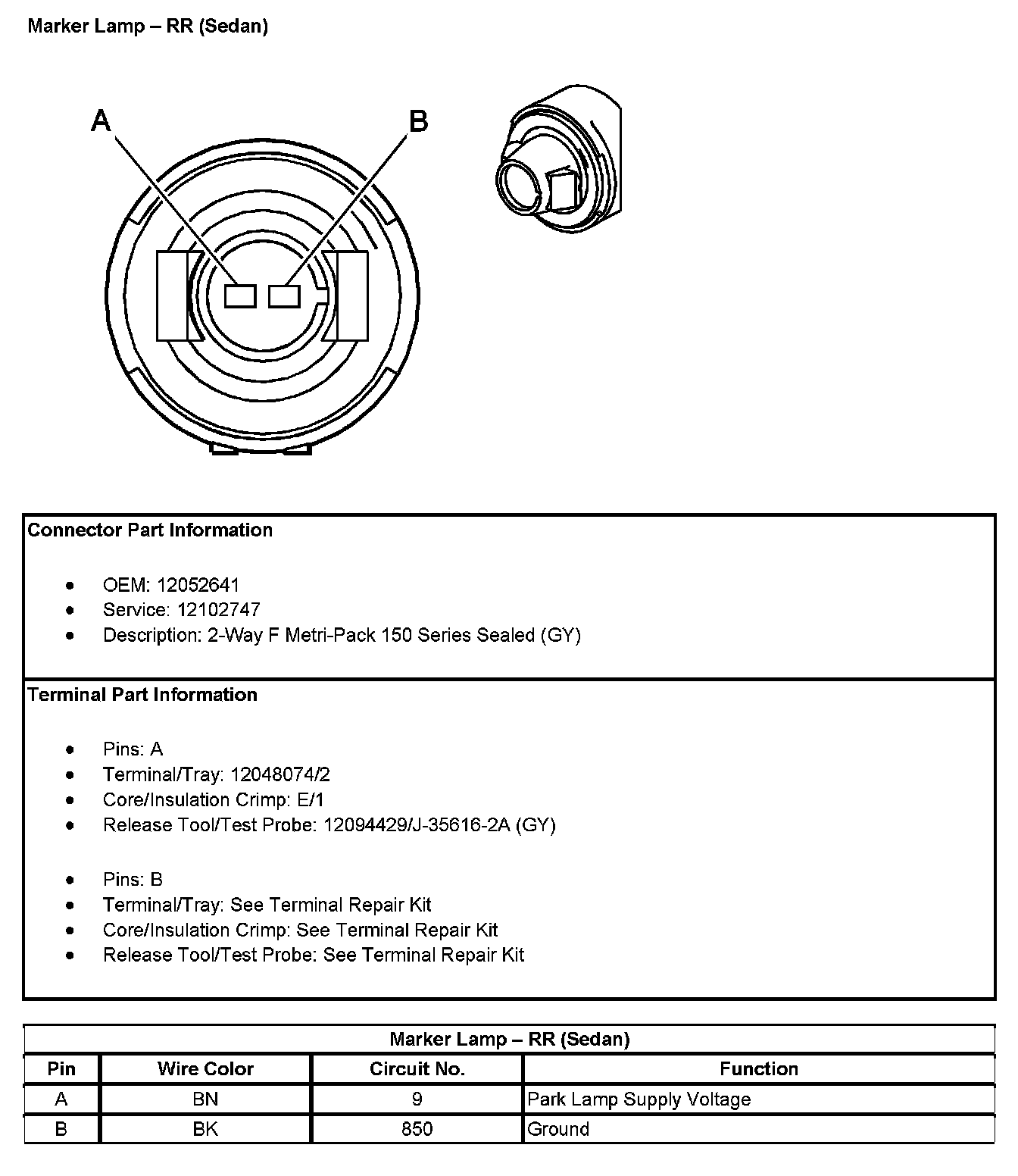

Marker Lamp - RR (Sedan):
