Home >> Chevrolet >> 2007 >> Cobalt L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Front Door Latch

Front Door Latch

Door Latch - Driver (With RPO Code AU3):

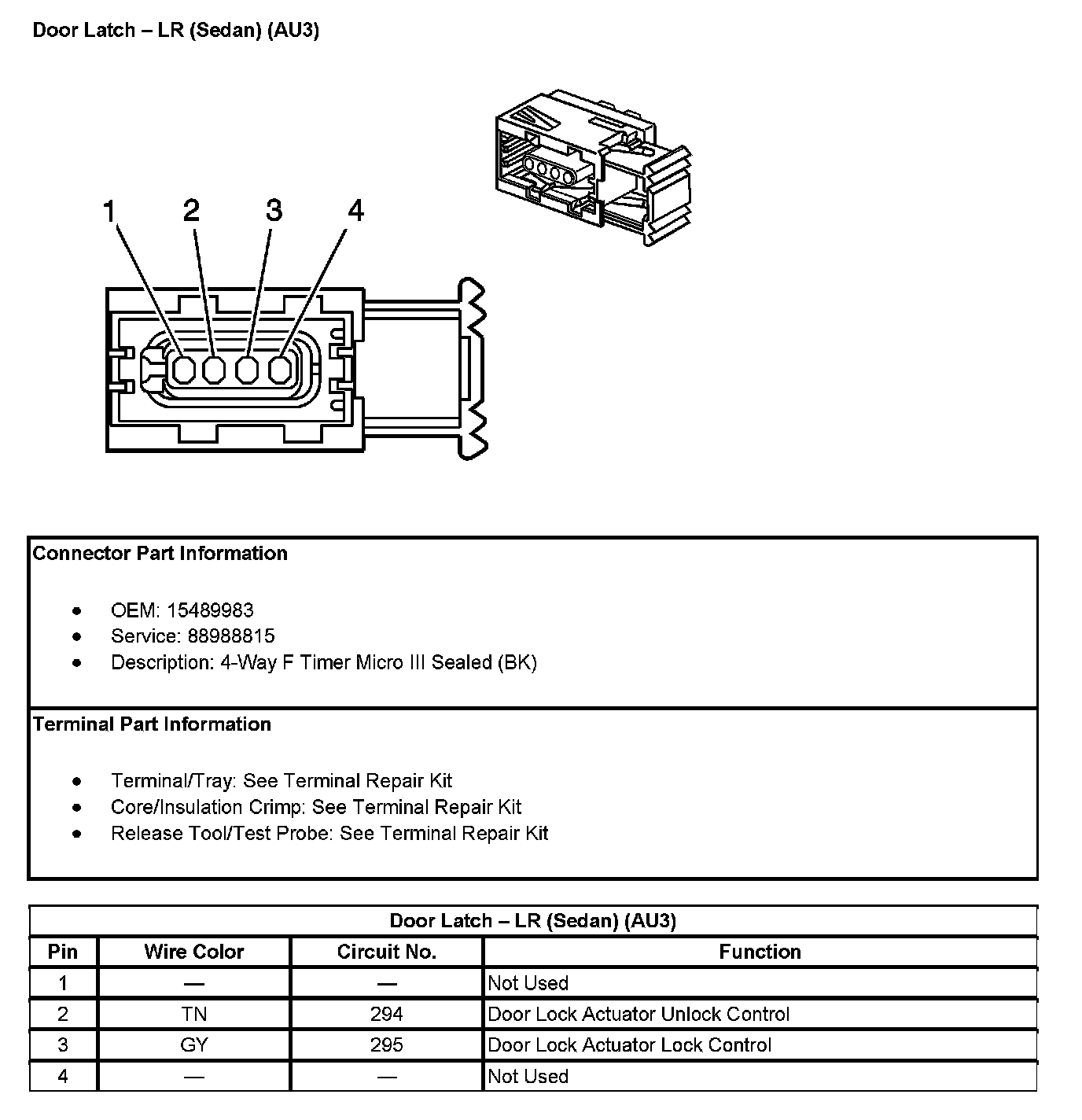

Door Latch - LR (Sedan) (With RPO Code AU3):

Door Latch - Passenger (With RPO Code AU3):

Door Latch - RR (Sedan) (With RPO Code AU3):
