Brake Lamp
Brake Lamp

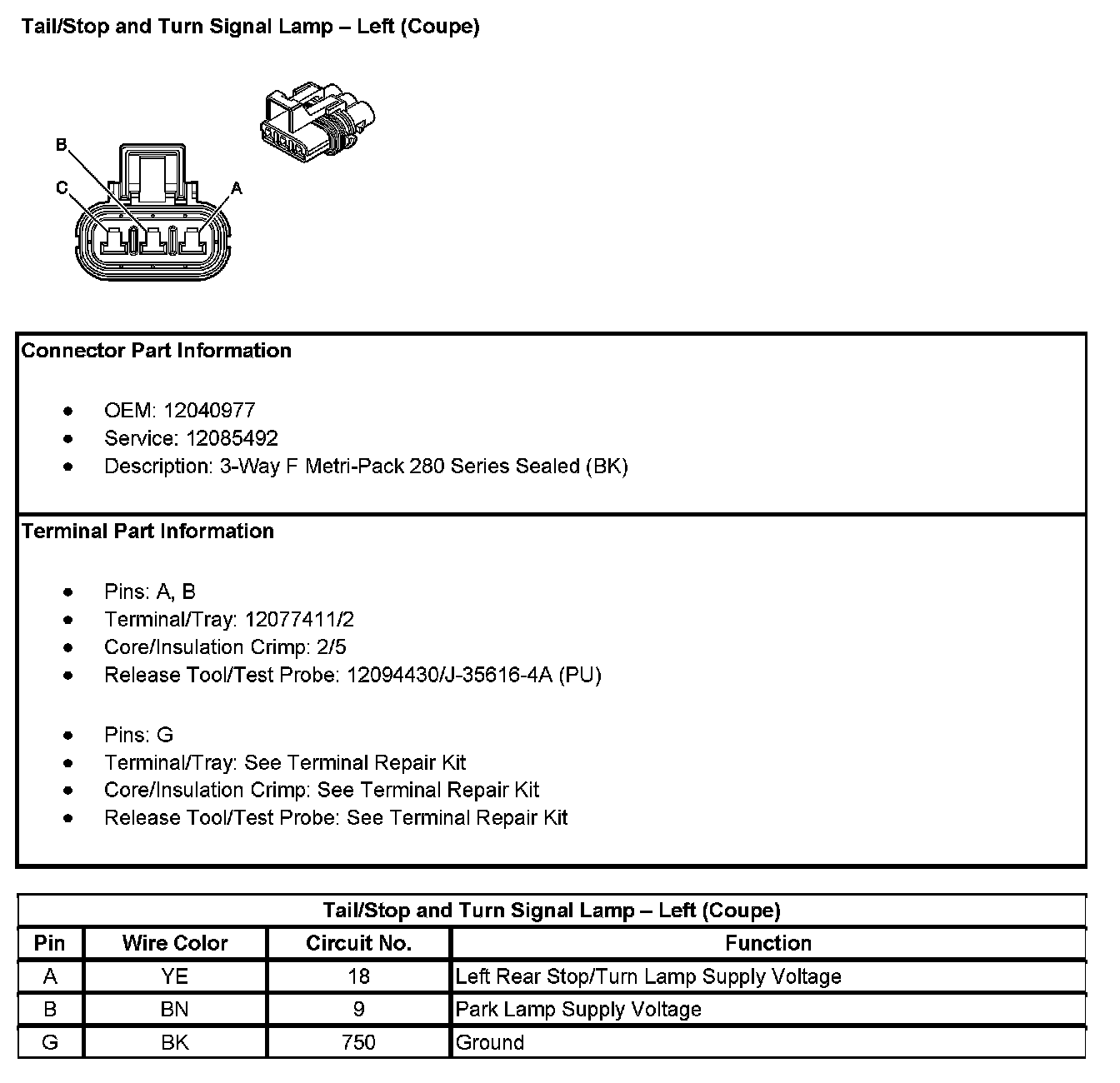

Tail/Stop And Turn Signal Lamp - Left (Coupe):

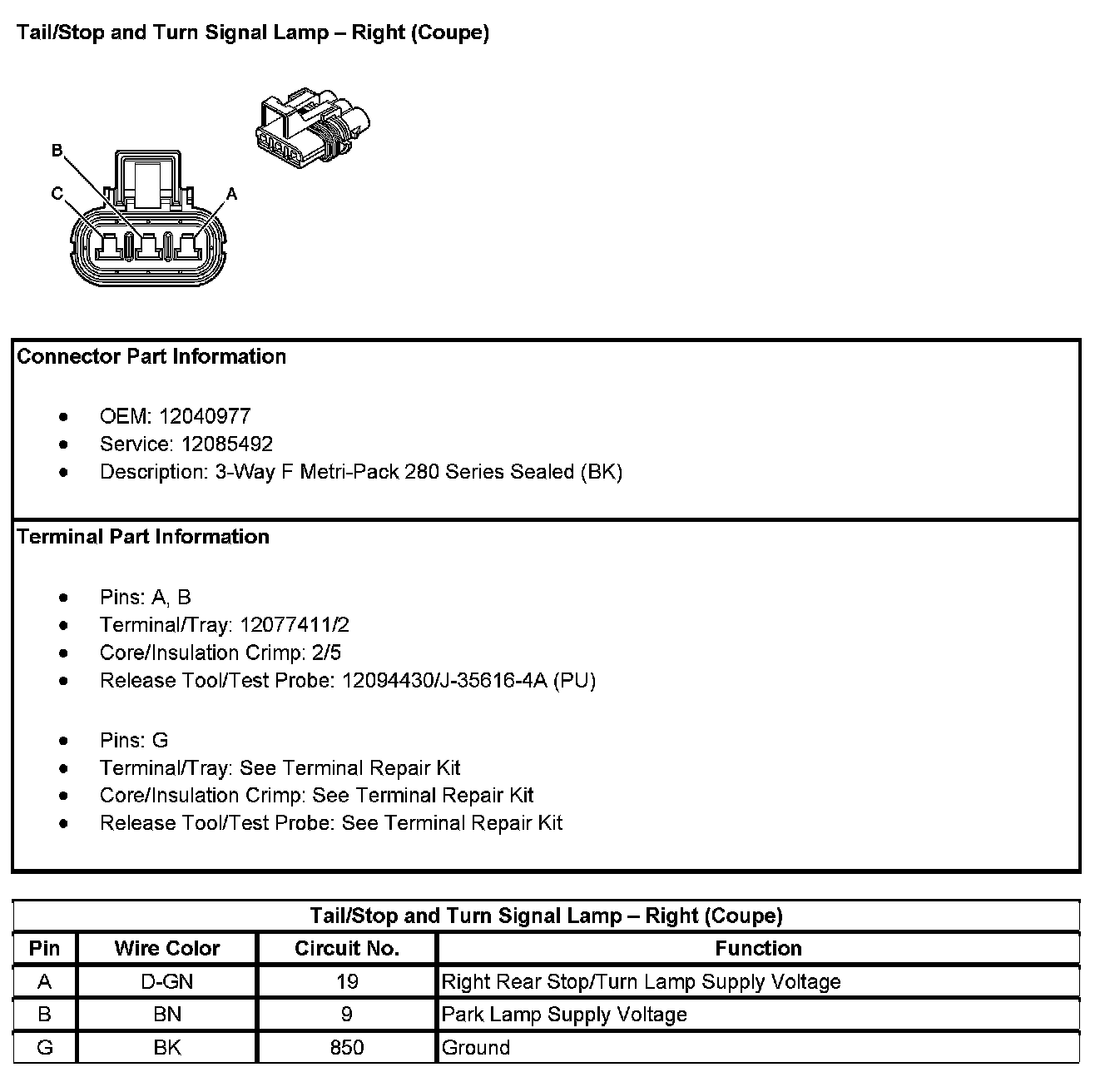

Tail/Stop And Turn Signal Lamp - Right (Coupe):
Tail/Stop And Turn Signal Lamp - Left (Sedan):

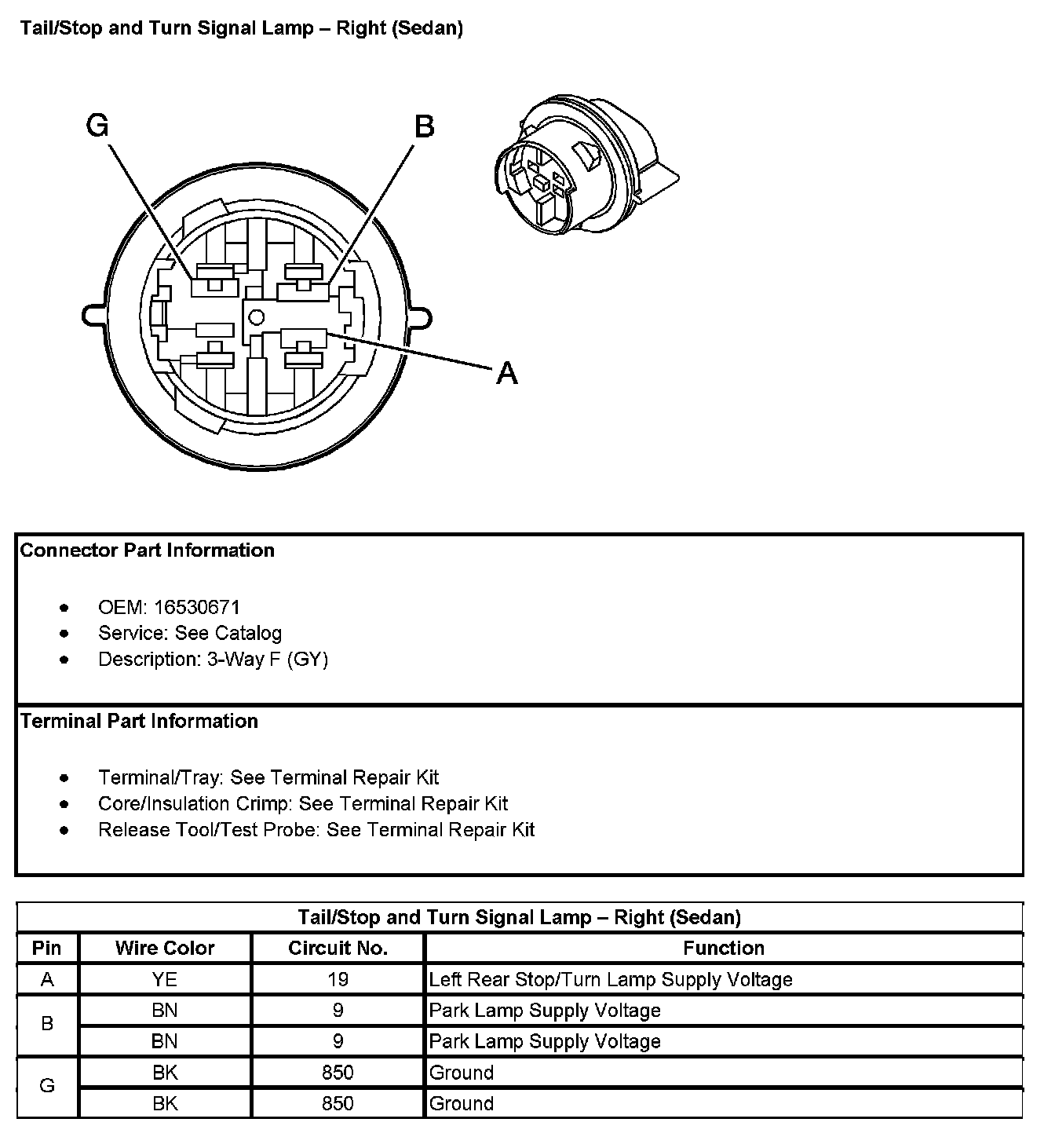

Tail/Stop And Turn Signal Lamp - Right (Sedan):
