Connector End Views (Notchback)



Connector End Views (Notchback)

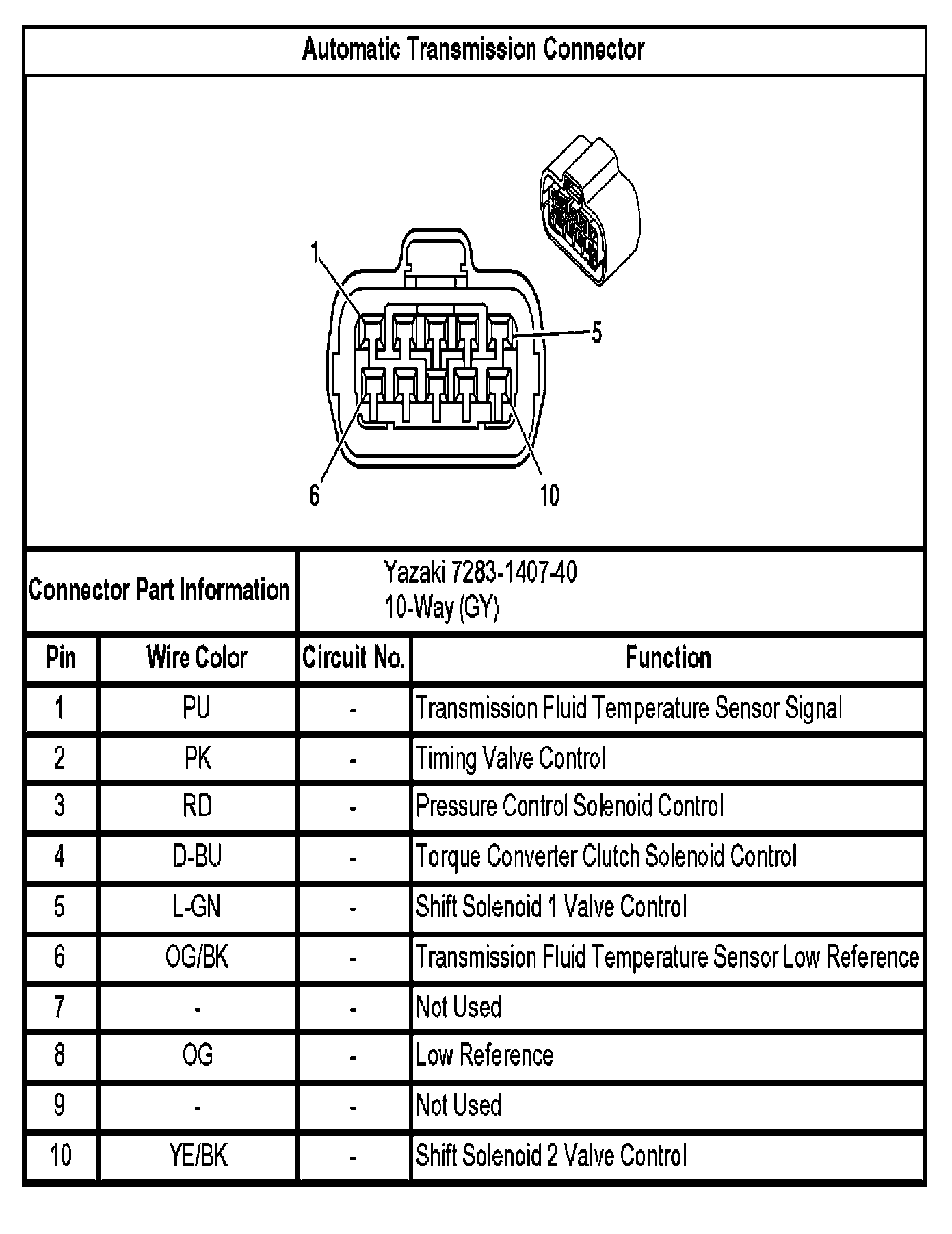

Automatic Transmission Connector:
