Installation Procedure

  1. Position the heat shield to the underbody.

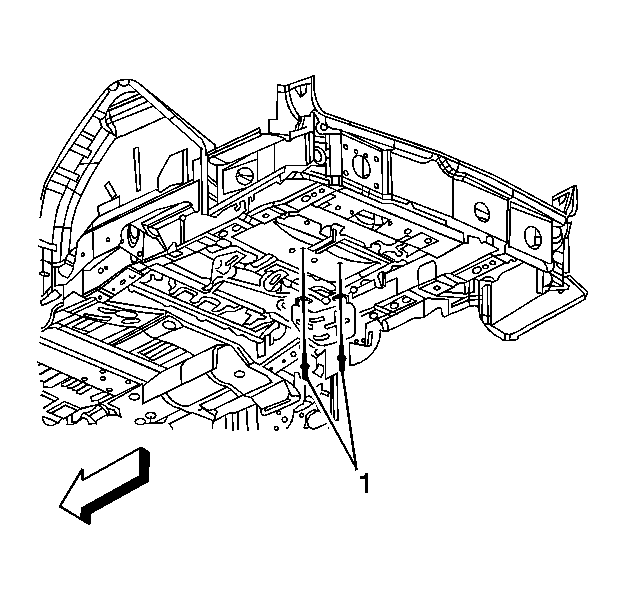

    2. Fig 1: Identifying Exhaust Resonator Heat Shield Rivets
    GM1681509Courtesy of GENERAL MOTORS CORP.
  2. Install NEW rivets (1) attaching the resonator heat shield to the underbody.
  3. Install muffler. Refer to Muffler Replacement .
