Power Trunk / Liftgate Control Module

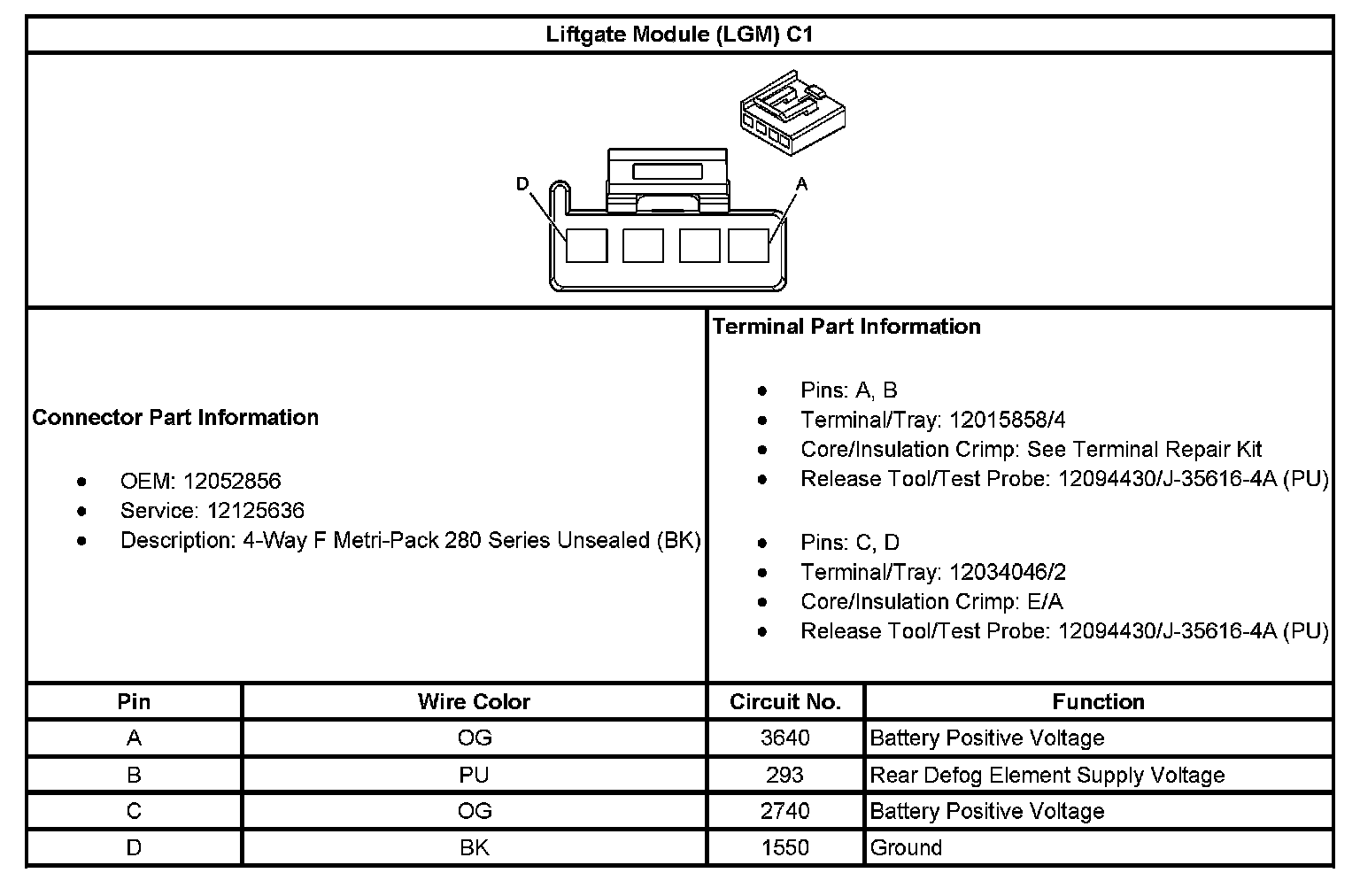

Liftgate Module (LGM) C1:



Liftgate Module (LGM) C2:

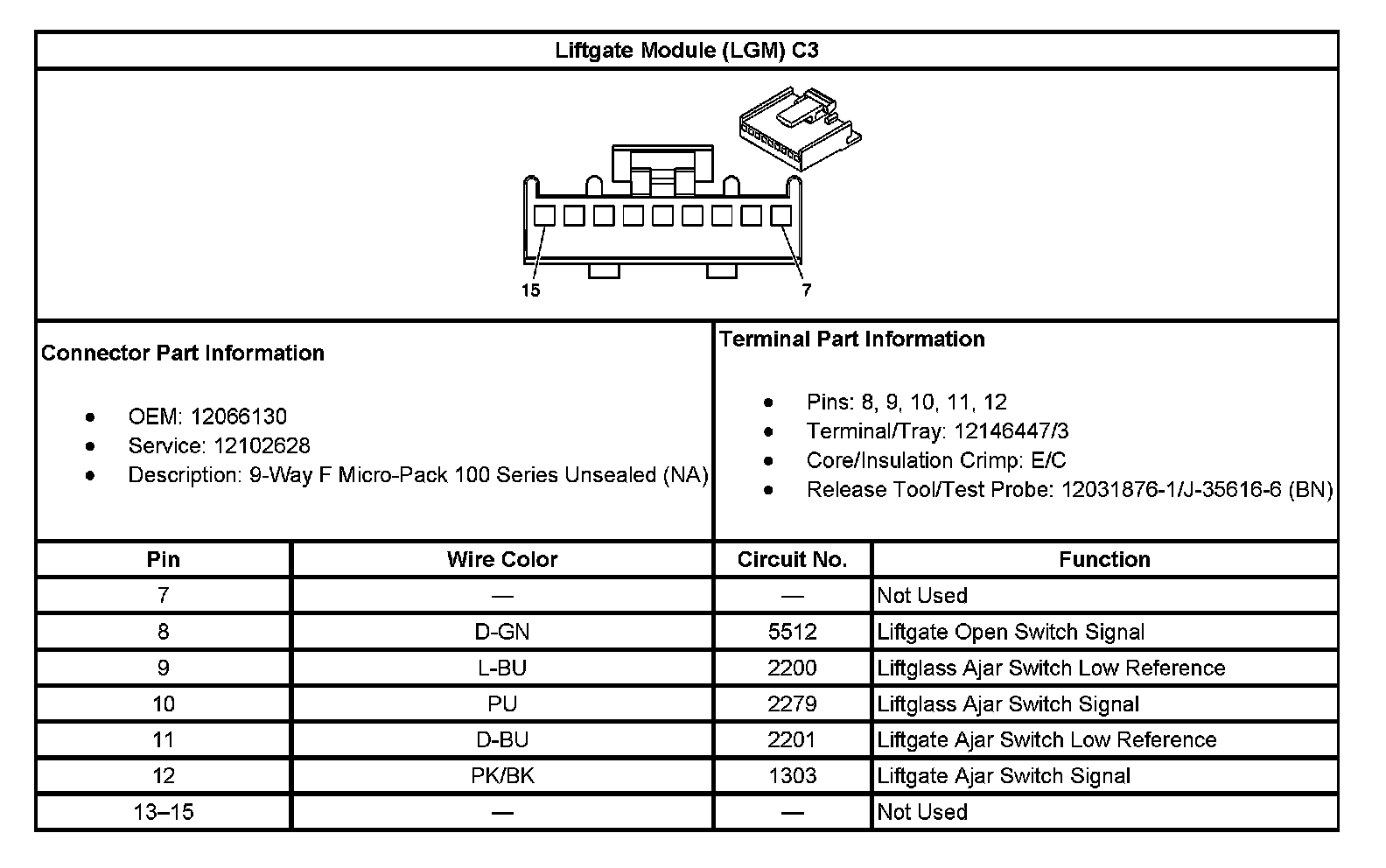

Liftgate Module (LGM) C3:
