Driver Door Module (DDM)

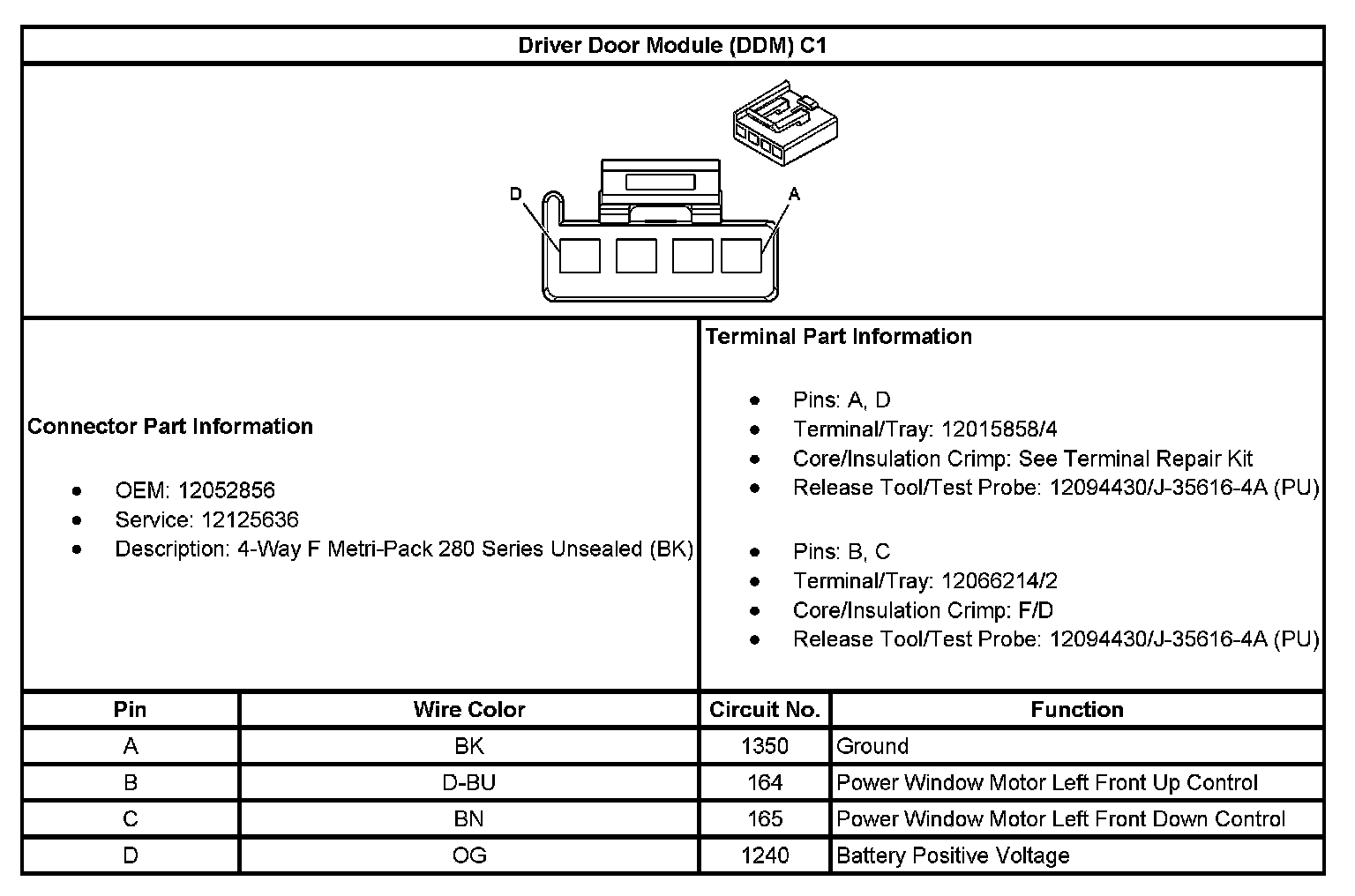

Driver Door Module (DDM) C1:

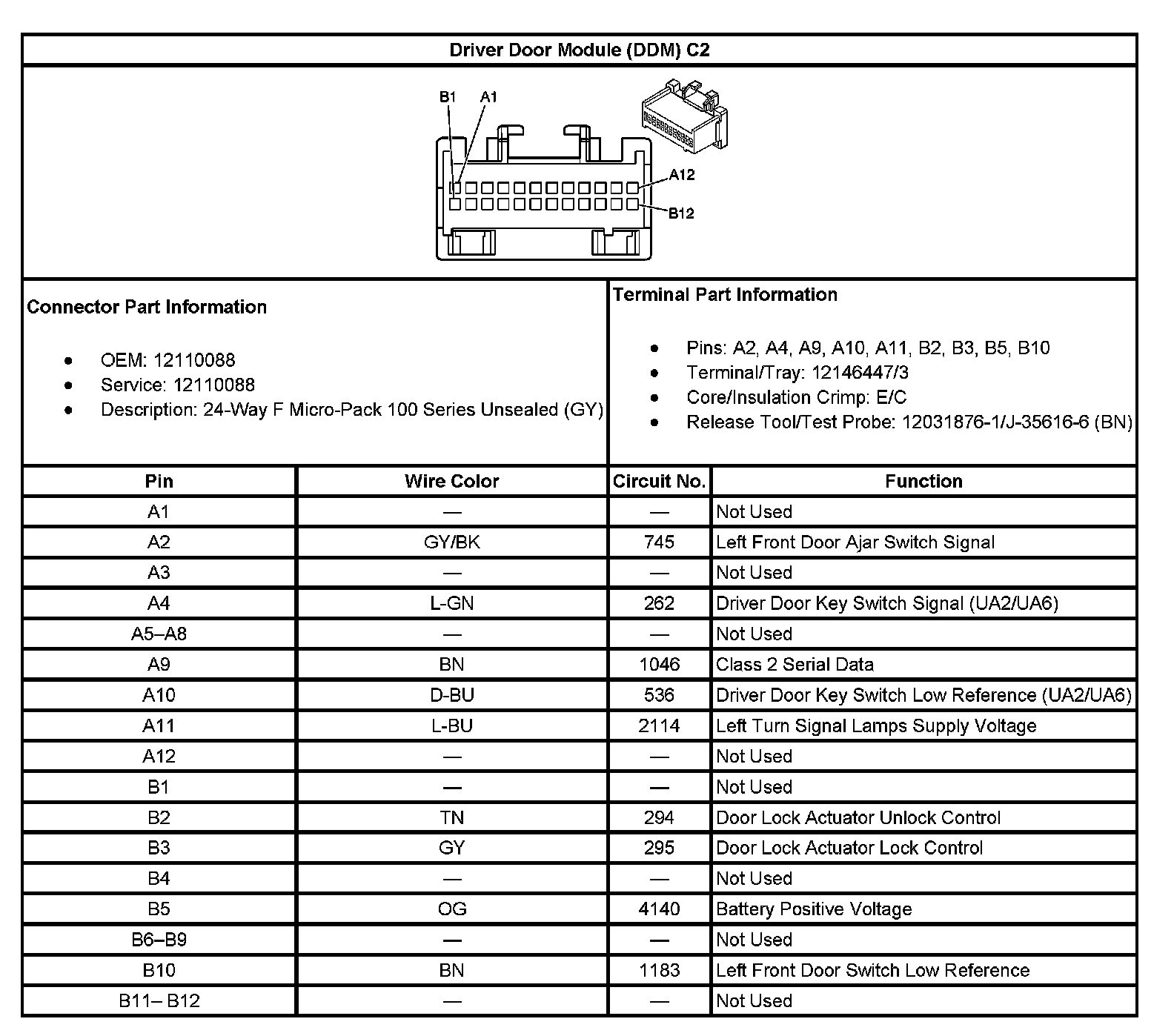

Driver Door Module (DDM) C2:

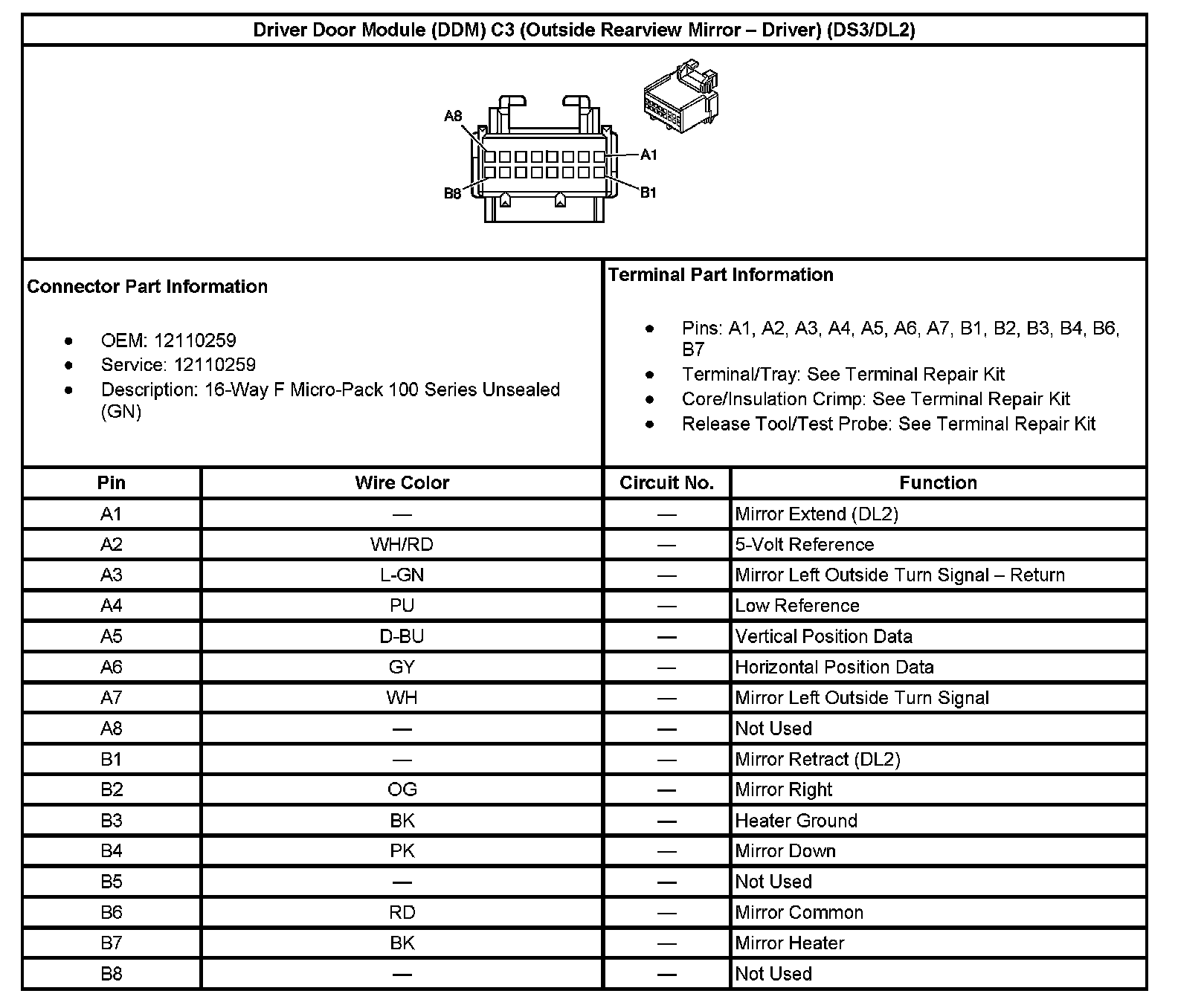

Driver Door Module (DDM) C3 (Outside Rearview Mirror - Driver) (With RPO Code DS3/DL2):

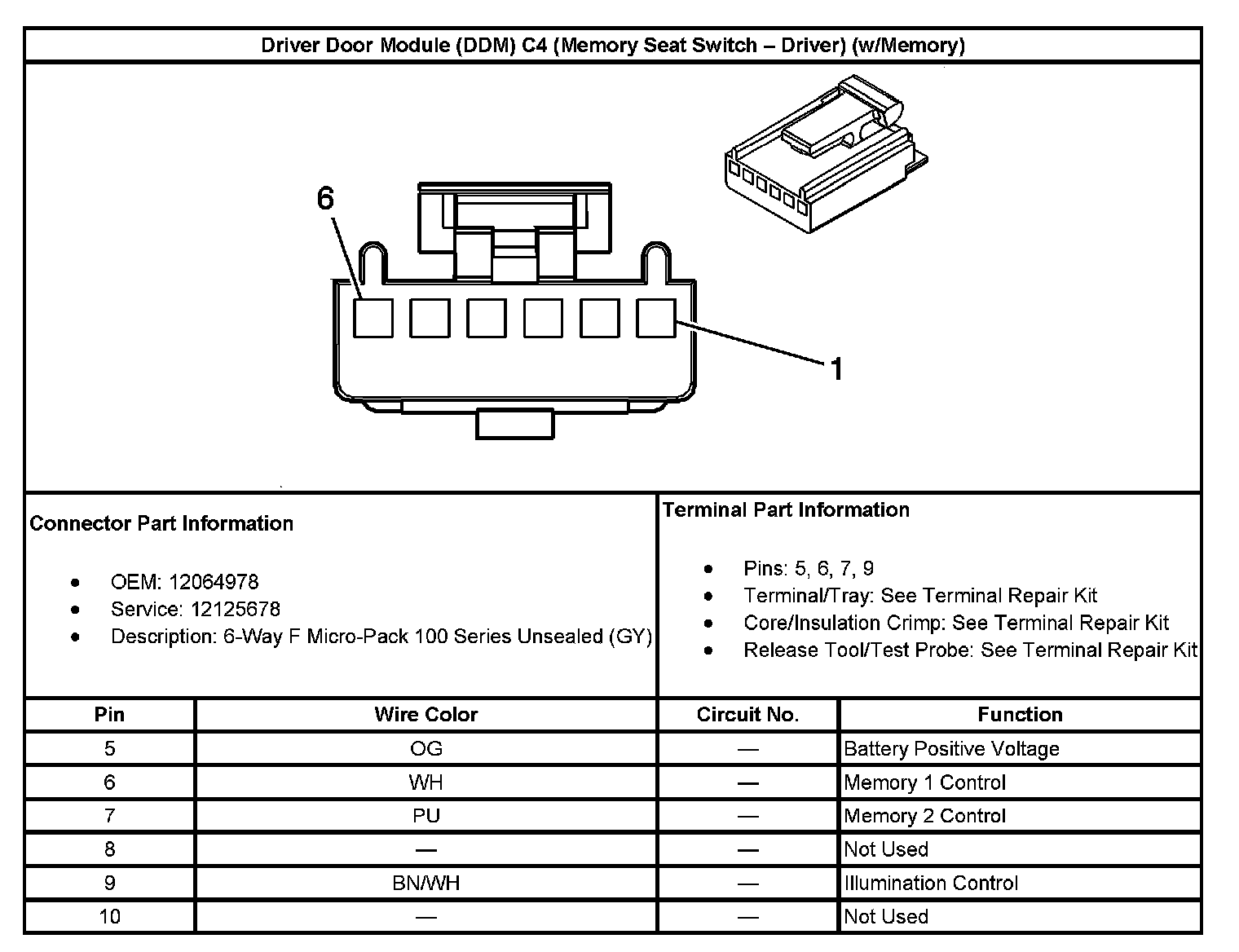

Driver Door Module (DDM) C4 (Memory Seat Switch - Driver) (Without Memory):

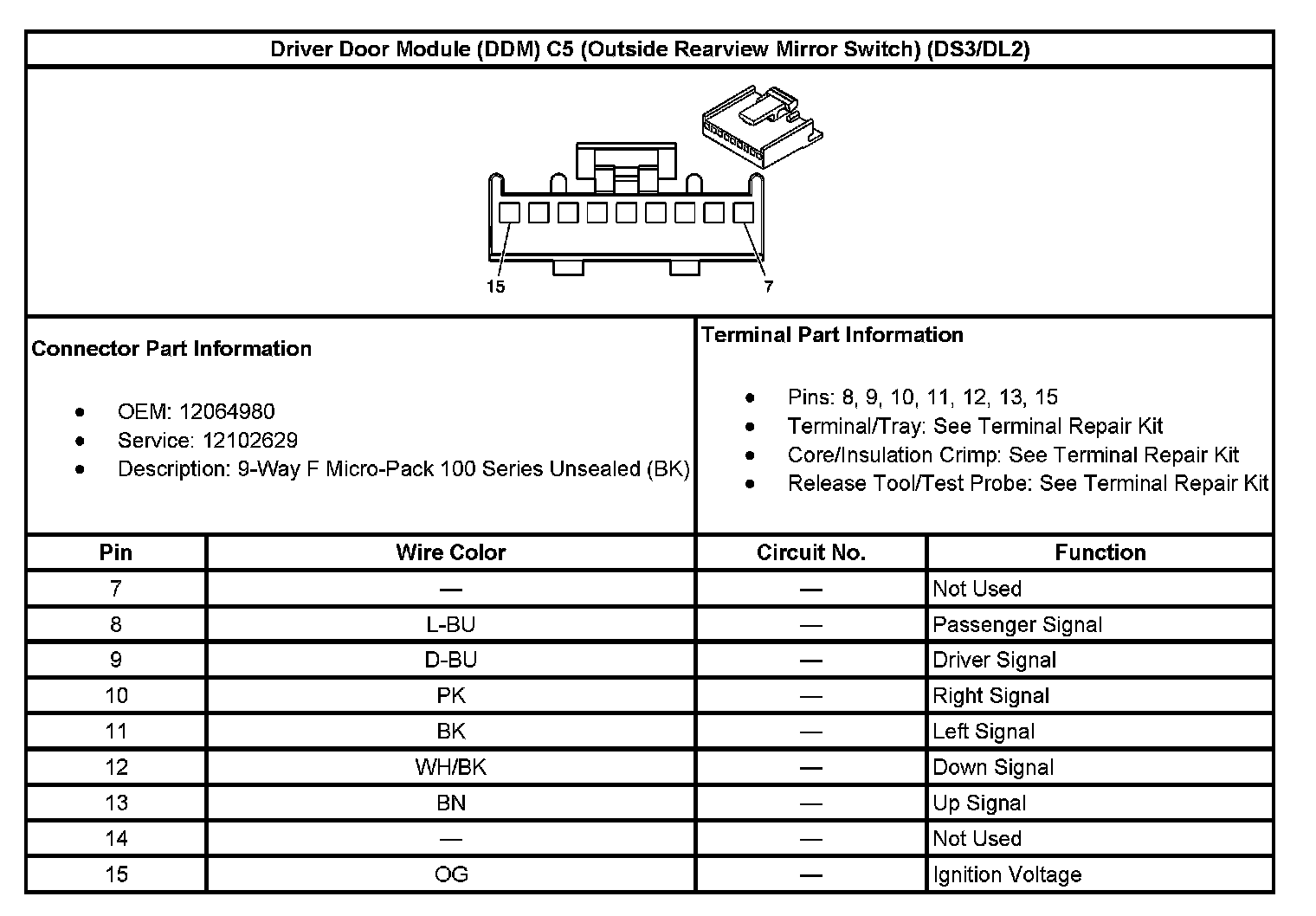

Driver Door Module (DDM) C5 (Outside Rearview Mirror Switch) (With RPO Code DS3/DL2):
