Home >> Chevrolet >> 2006 >> SSR V8-6.0L VIN H >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Locations

Data Link Connector: Locations

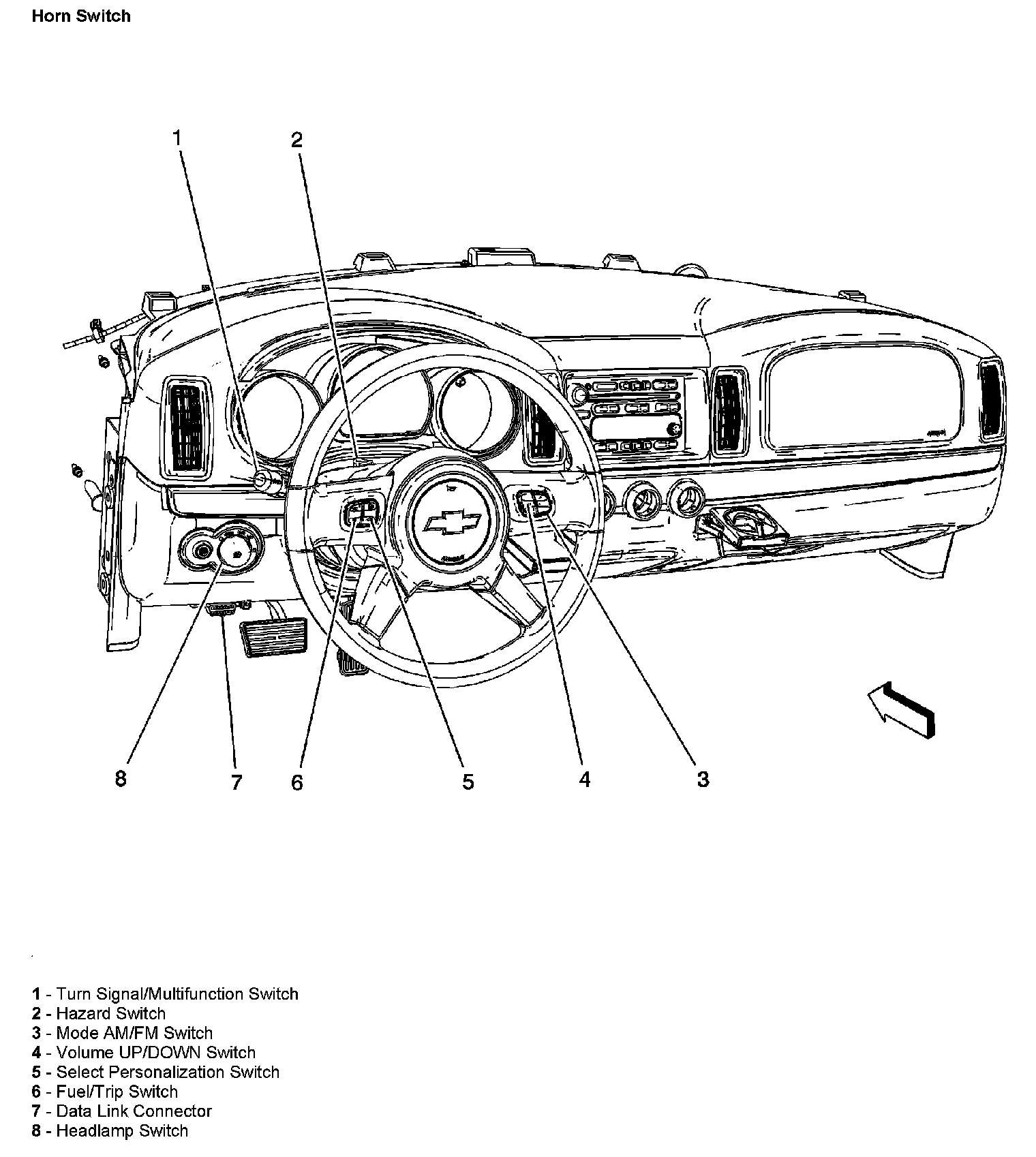

Horn Switch:

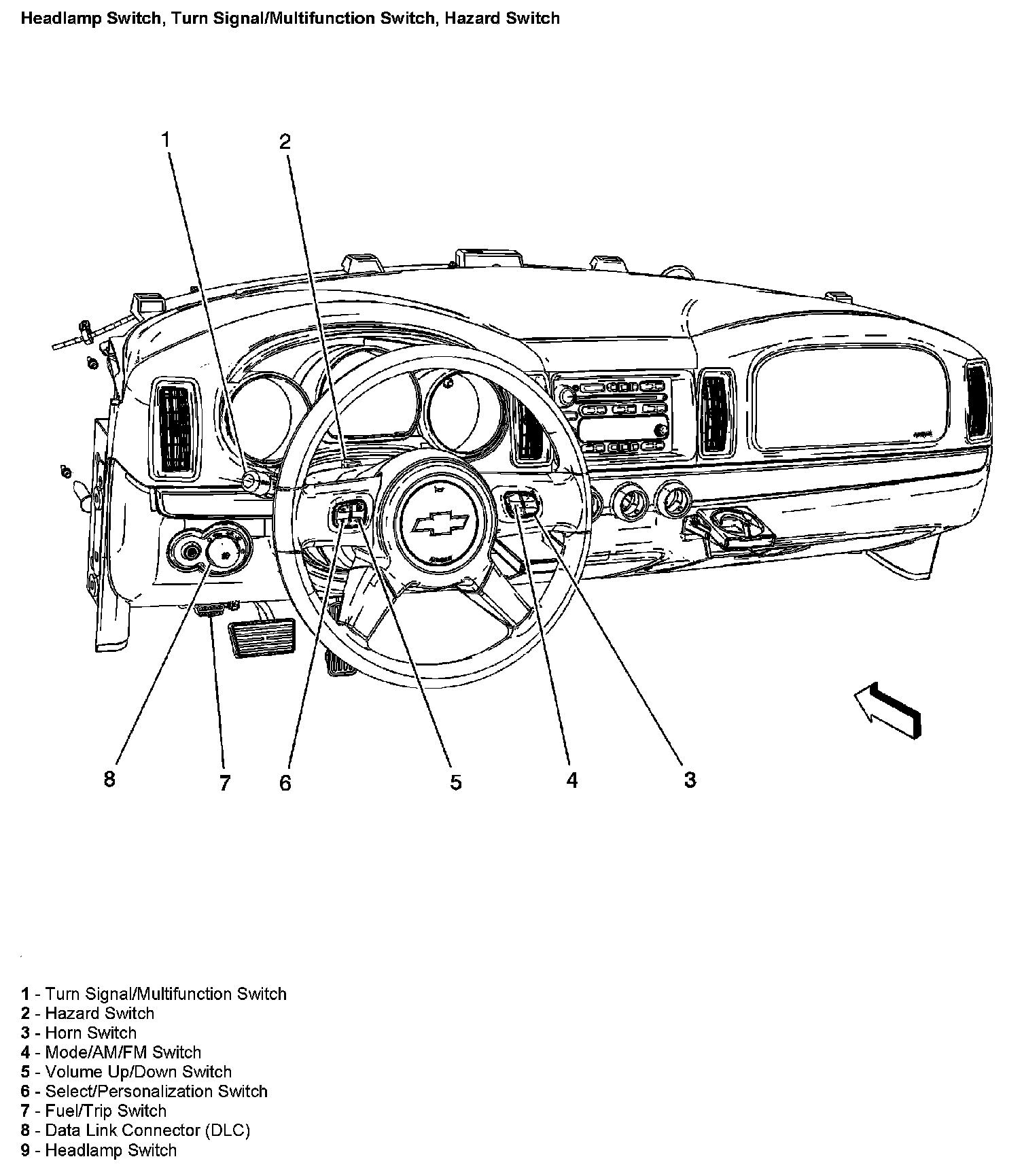

Headlamp Switch, Turn Signal/Multifunction Switch, Hazard Switch:

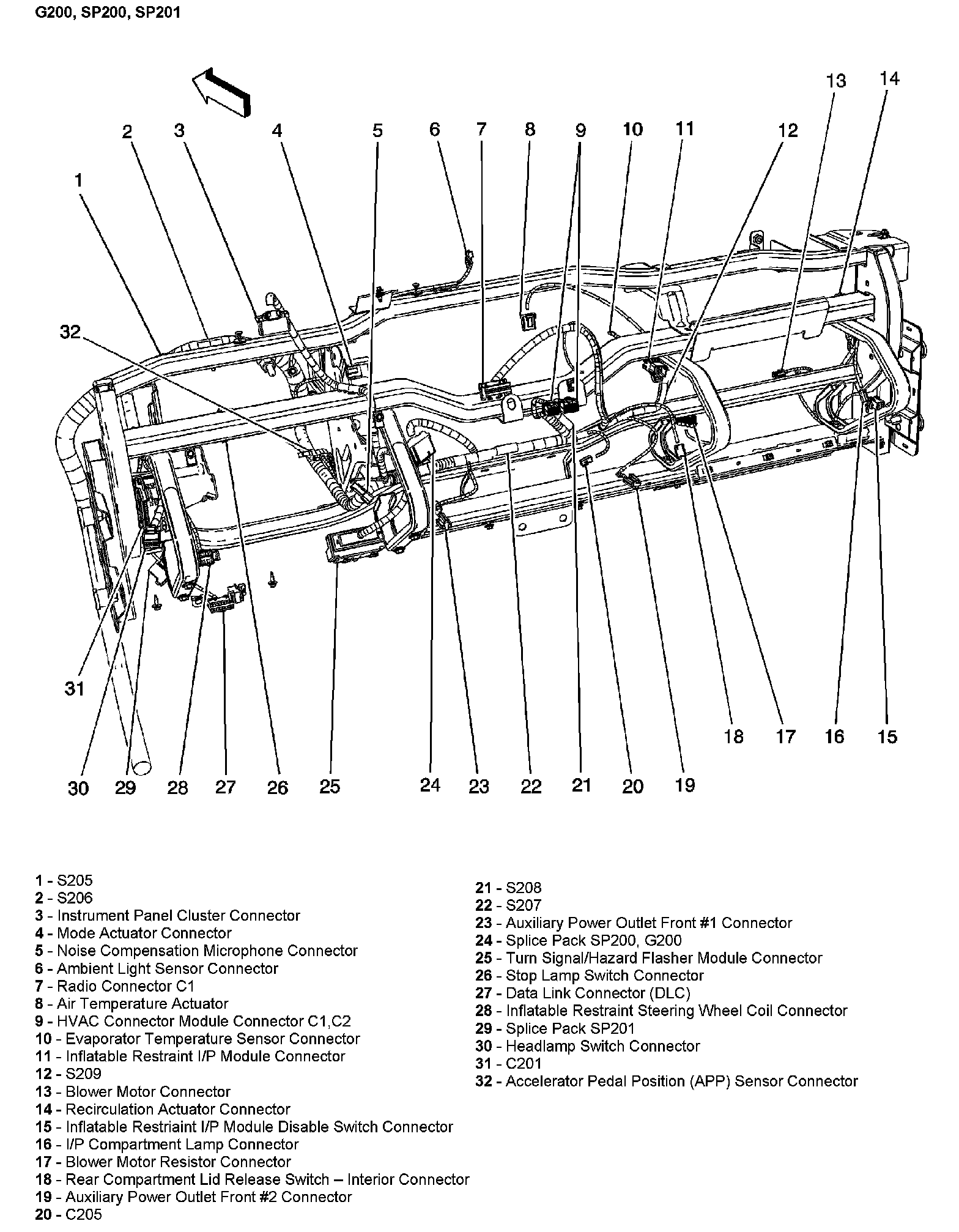

G200, SP200, SP201:
