Removal Procedure

WARNING: This page is about a different car, the 2006 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

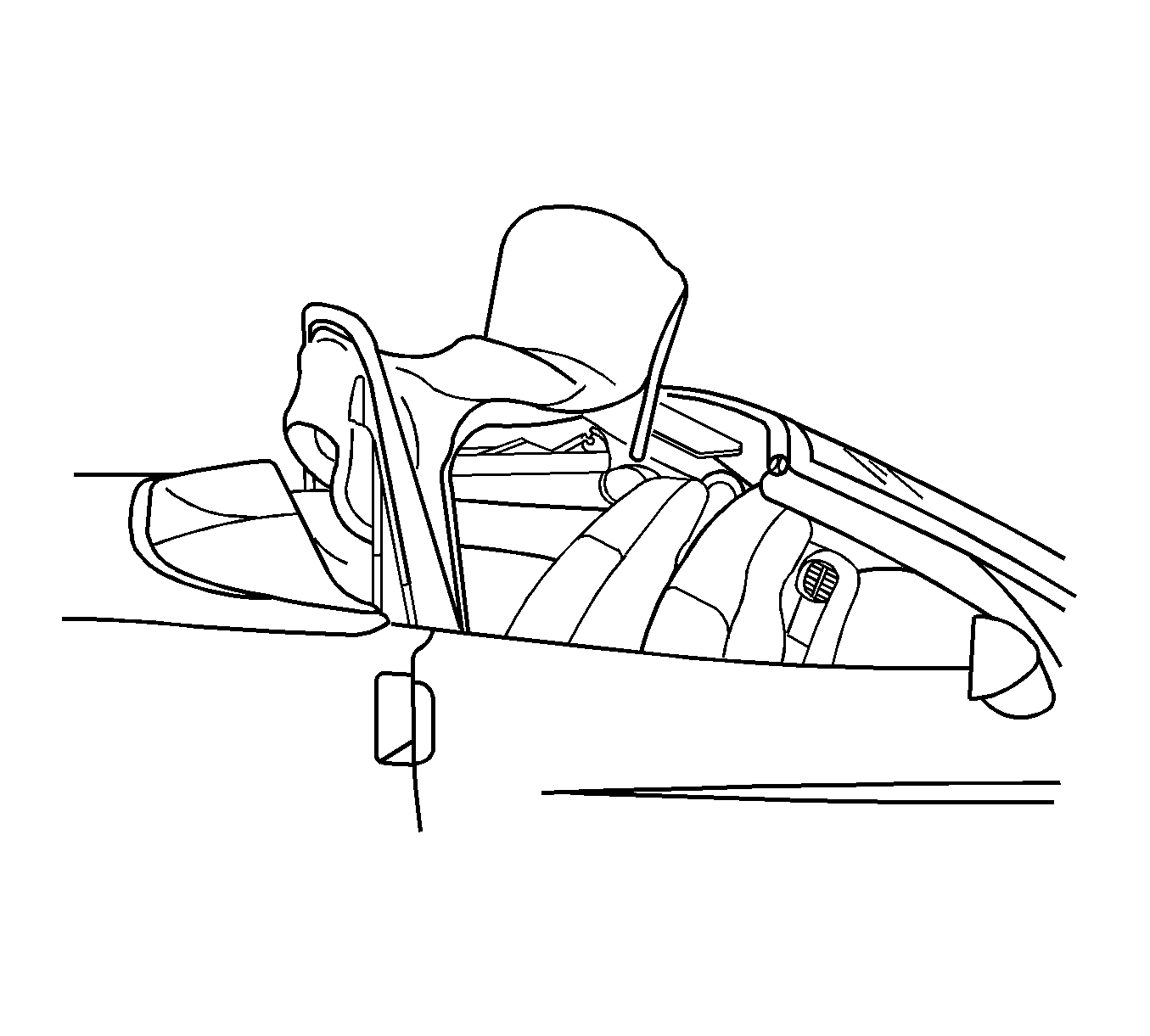

Fig 1: Folding Top
GM1507225Courtesy of GENERAL MOTORS CORP.
CAUTION: Refer to Servicing Electrical Components Caution in Cautions and Notices.
  1. Place the folding top with the #1 bow and #5 bow in the up position.
  2. Open the rear compartment.
  3. Disconnect the battery. Refer to Battery Negative Cable Disconnect/Connect Procedure (7.0L) or Battery Negative Cable Disconnect/Connect Procedure (6.0L) in Engine Electrical.
  4. Remove the rear compartment side carpet. Refer to Trim Panel Carpet - Rear Compartment Rear Center in Interior Trim.

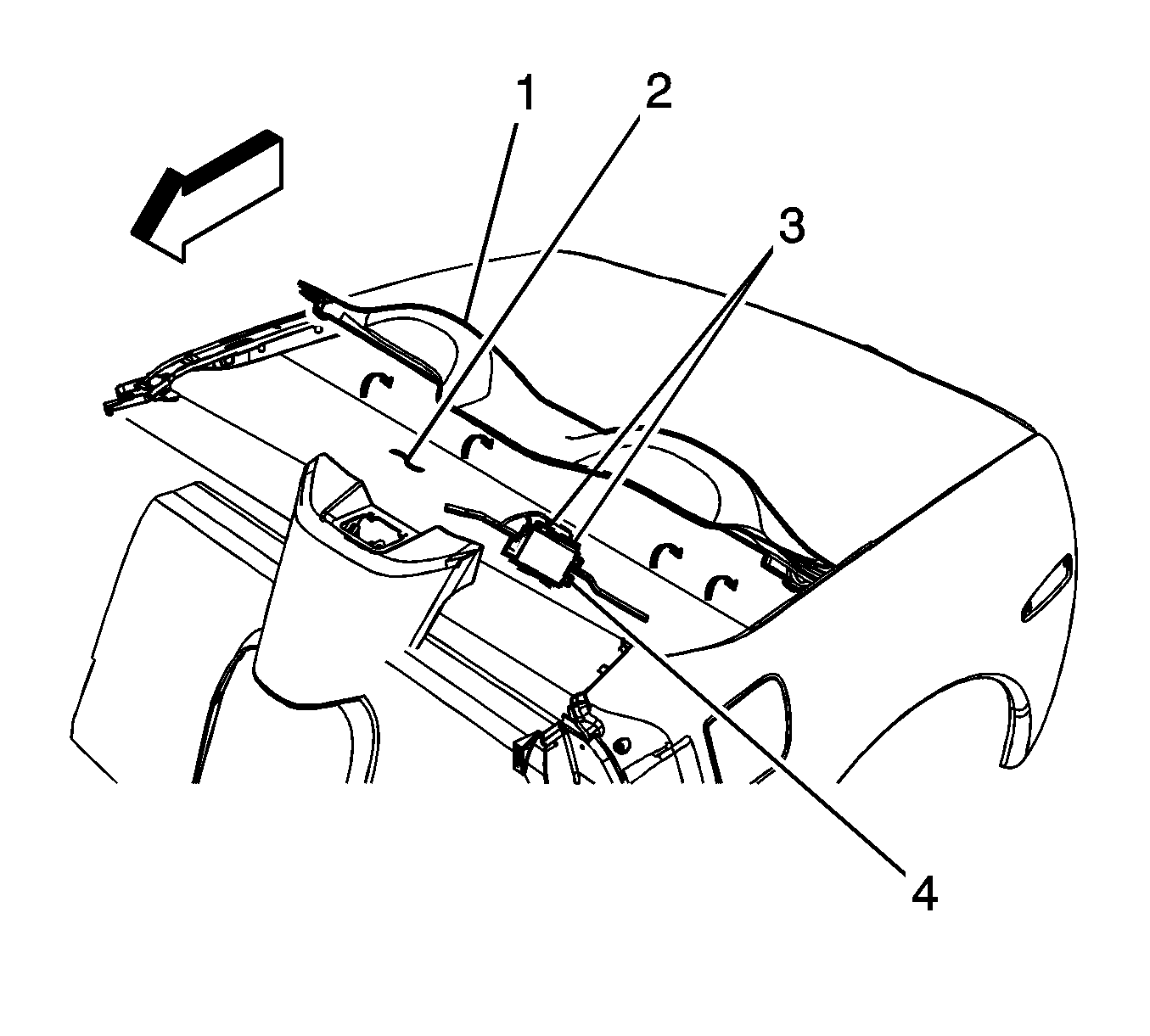

    5. Fig 2: Disconnecting The Electrical Connectors From The Folding Top Control Module
    GM1509583Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the electrical connectors (1) from the folding top control module (2).
  6. Remove the control module by lifting up to release the hook and loop fastener.
