LEMON Manuals
: Even more car manuals for everyone
Home
>>
Chevrolet
>>
2006
>>
Impala V8-5.3L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Oil Level Sensor
Oil Level Sensor

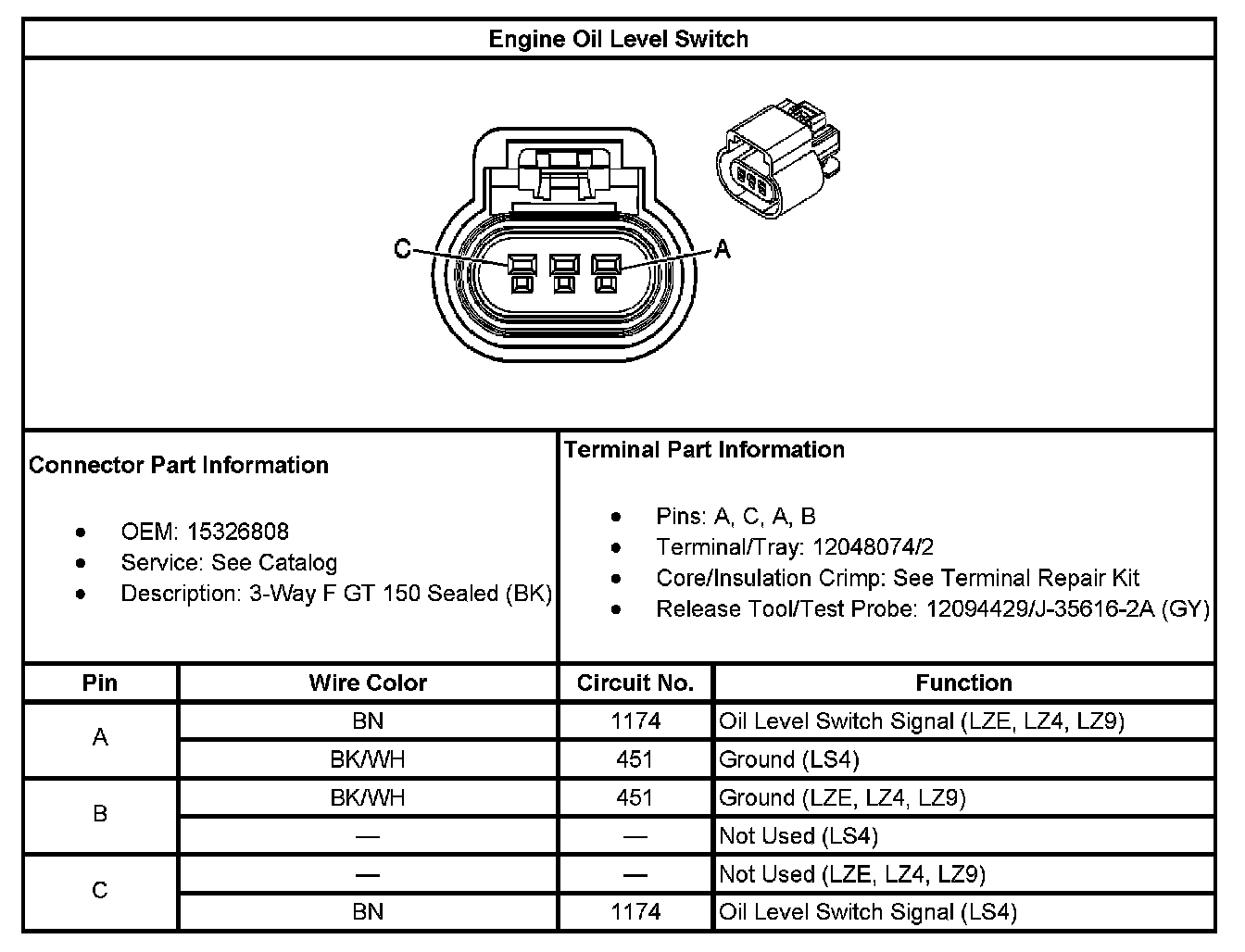

Engine Oil Level Switch:
