Impala V8-5.3L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Global Positioning System Module
Global Positioning System Module

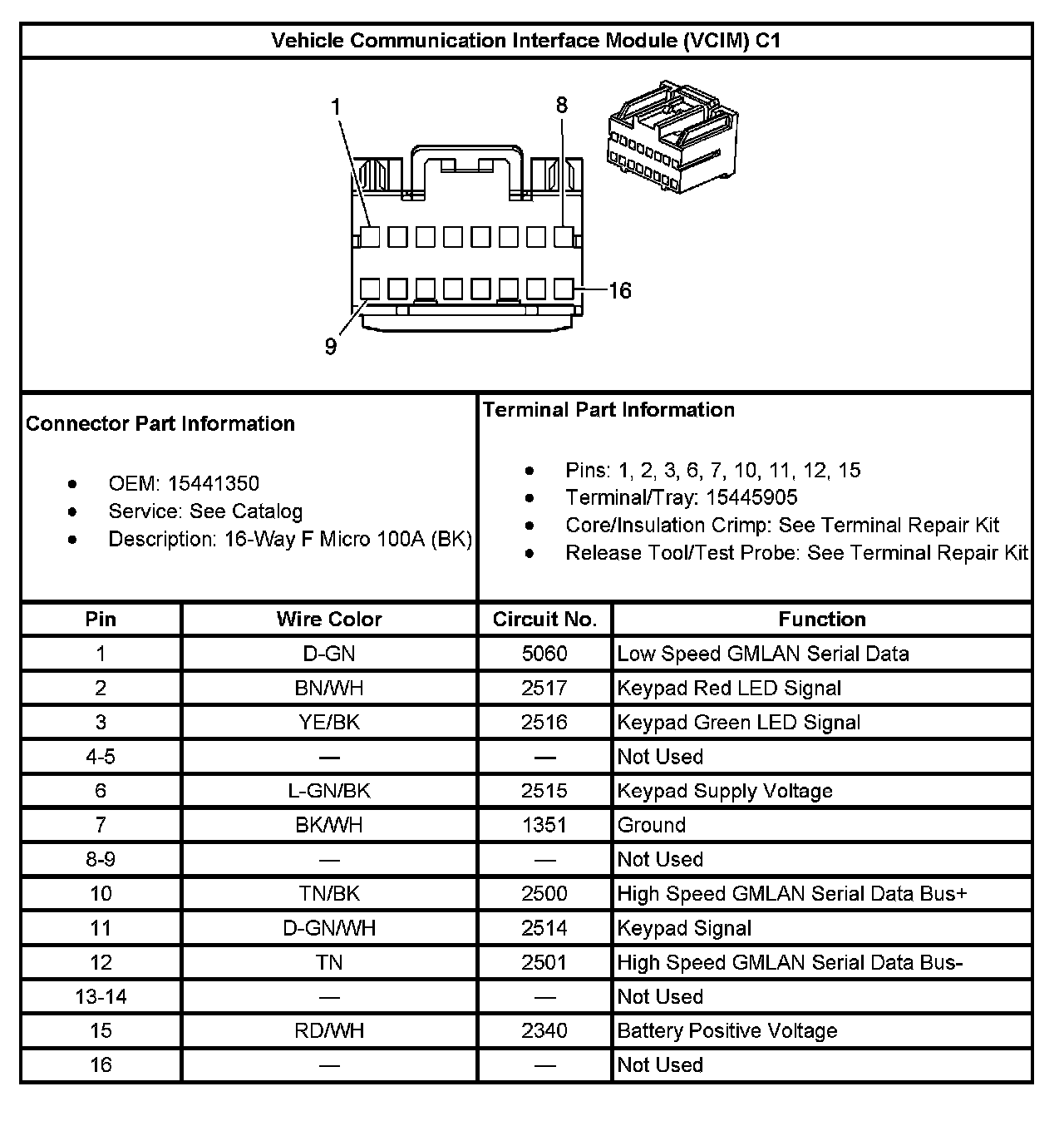

Vehicle Communication Interface Module (VCIM) C1:

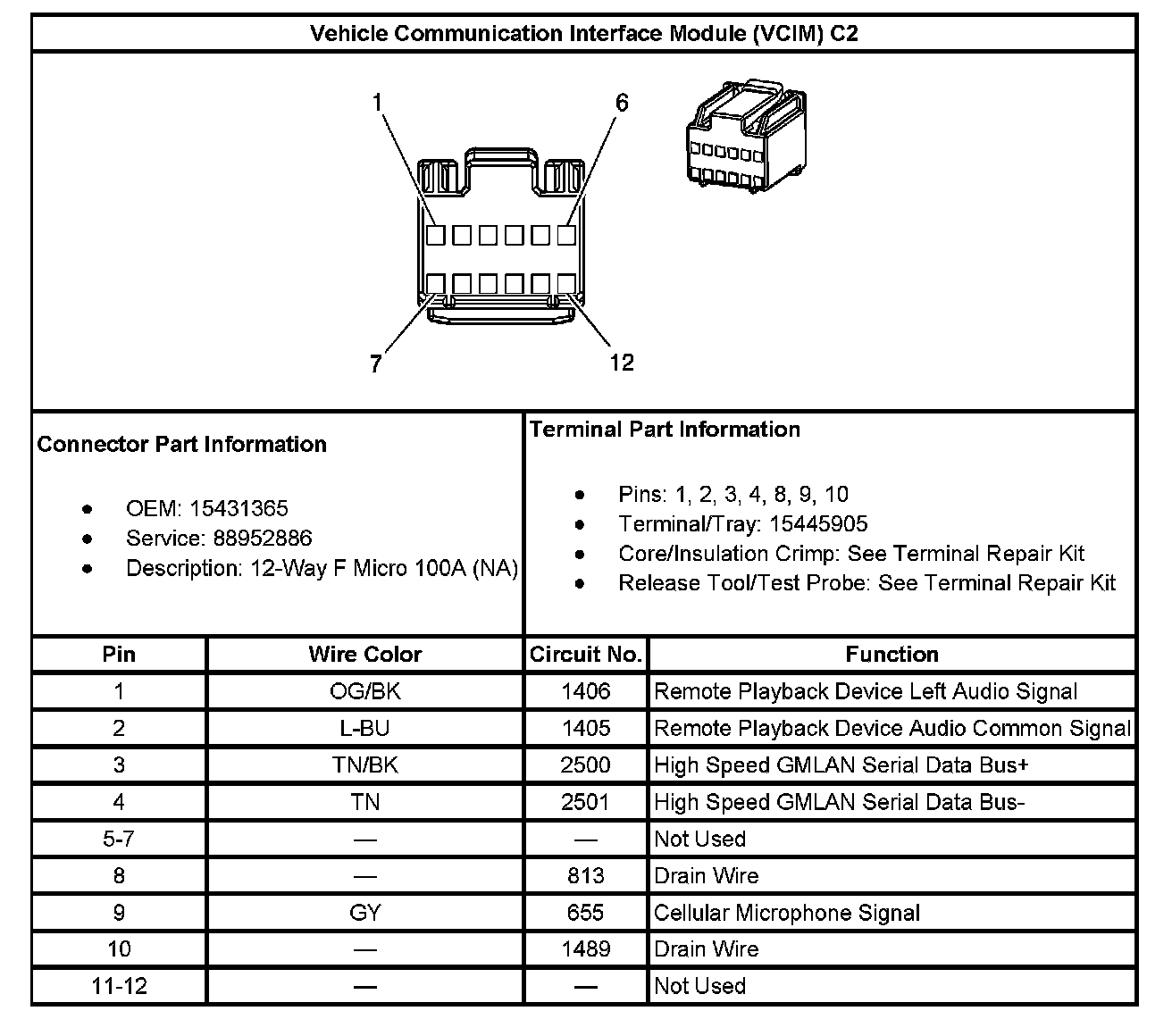

Vehicle Communication Interface Module (VCIM) C2:
