Home >> Chevrolet >> 2006 >> HHR L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Electronic Throttle Actuator >> Diagrams

Electronic Throttle Actuator: Diagrams

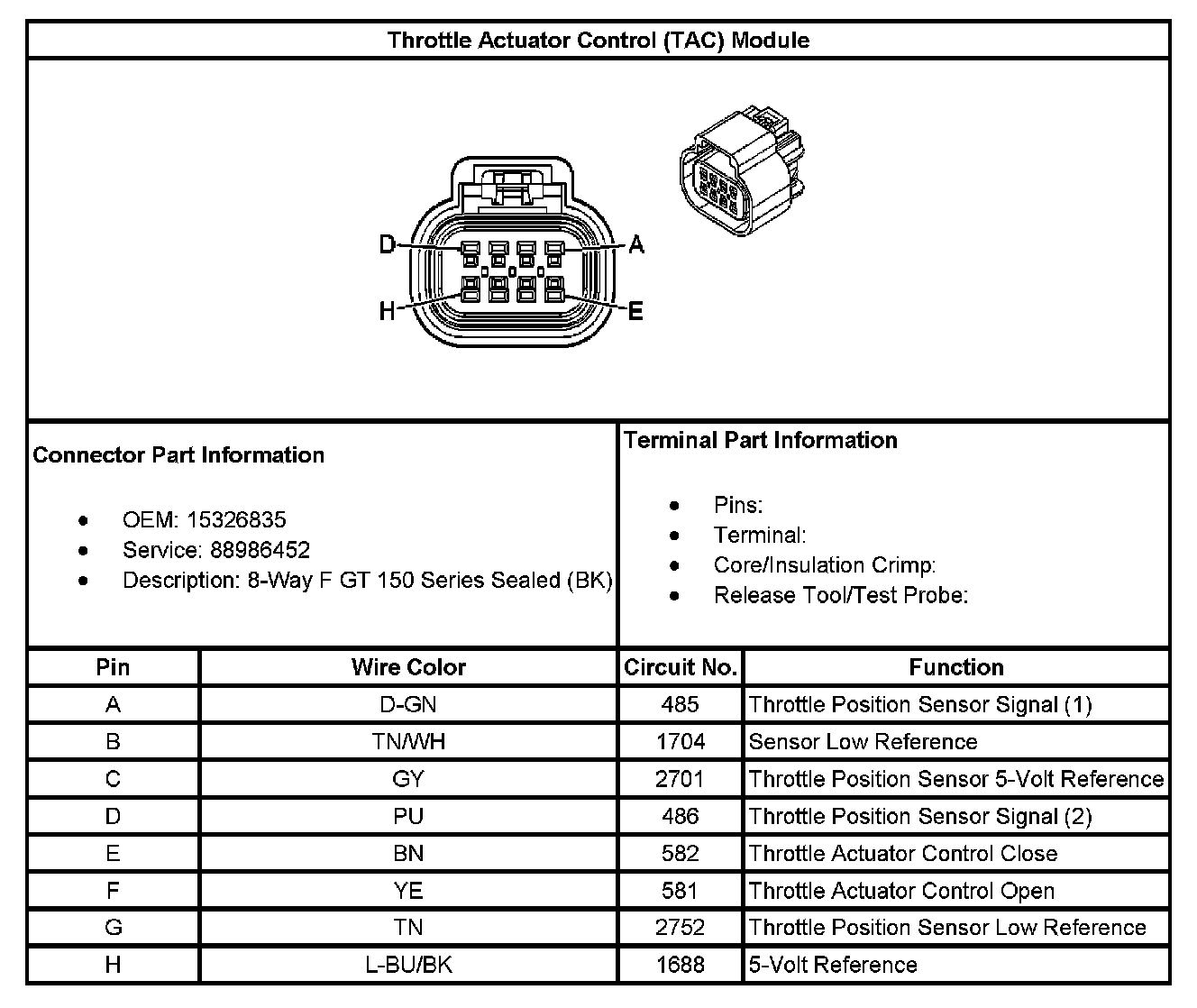

Throttle Actuator Control (TAC) Module:
