Home >> Chevrolet >> 2006 >> HHR L4-2.2L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Diagrams

Power Window Switch: Diagrams

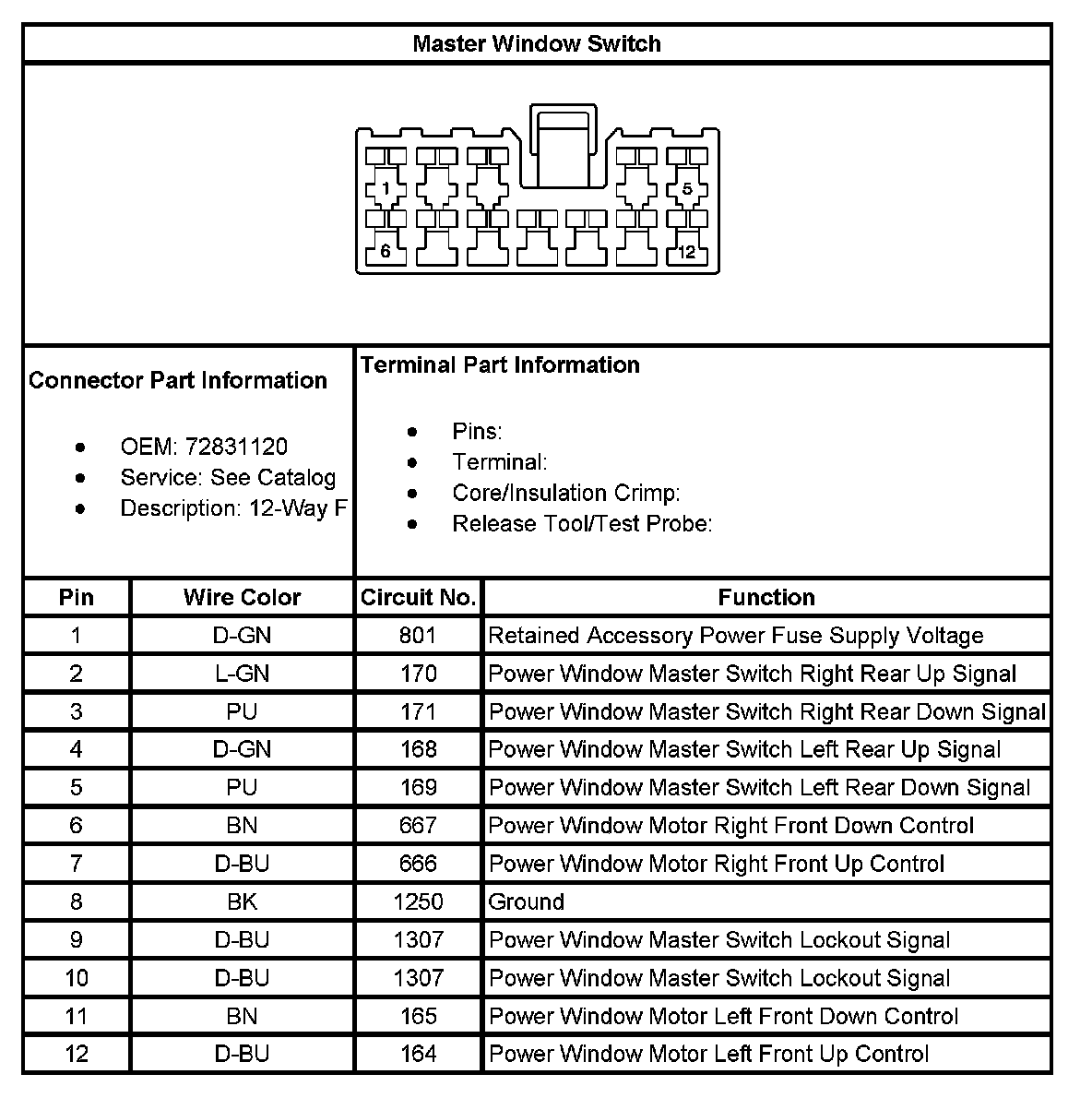

Master Window Switch:

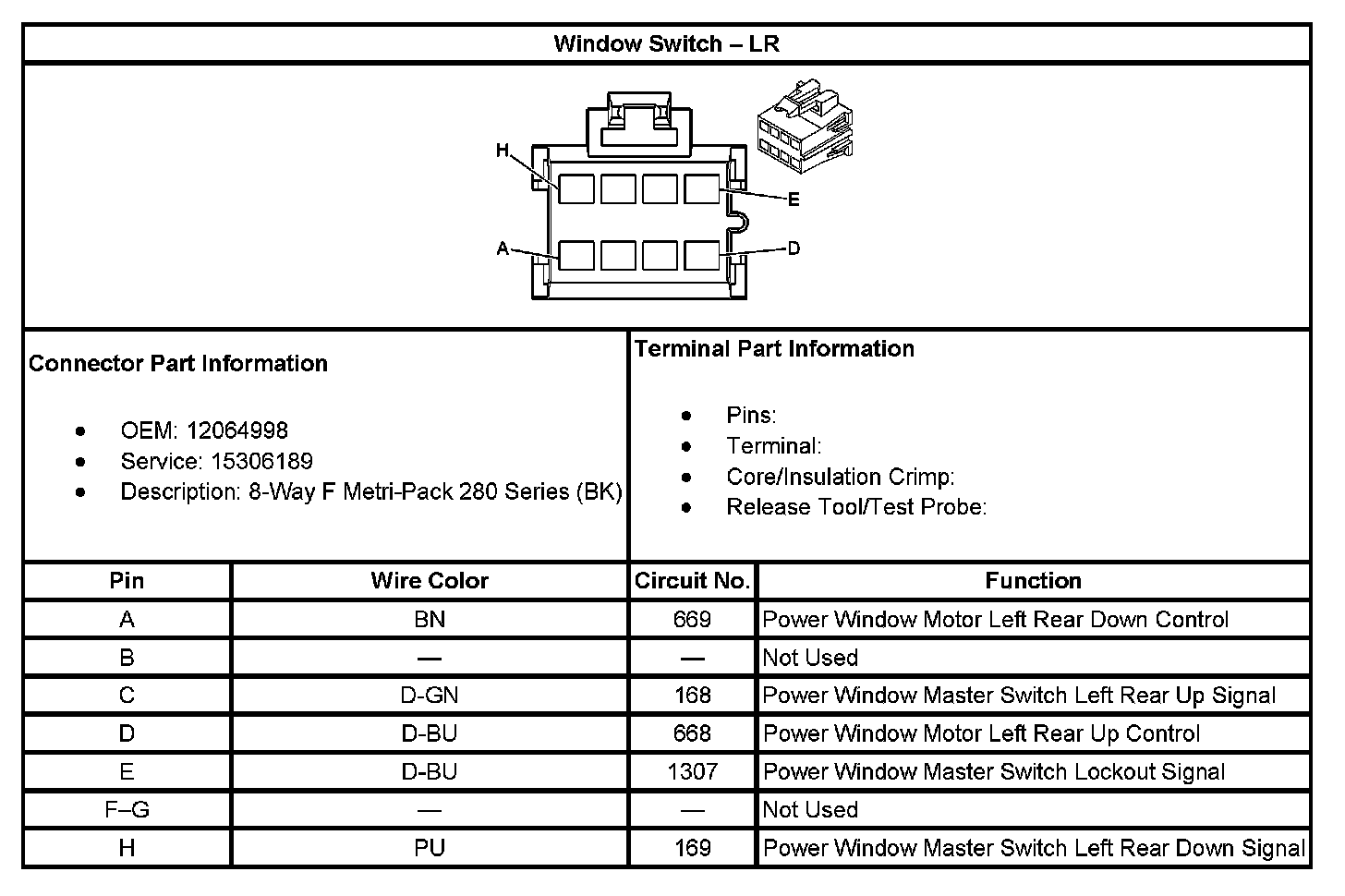

Window Switch - LR:

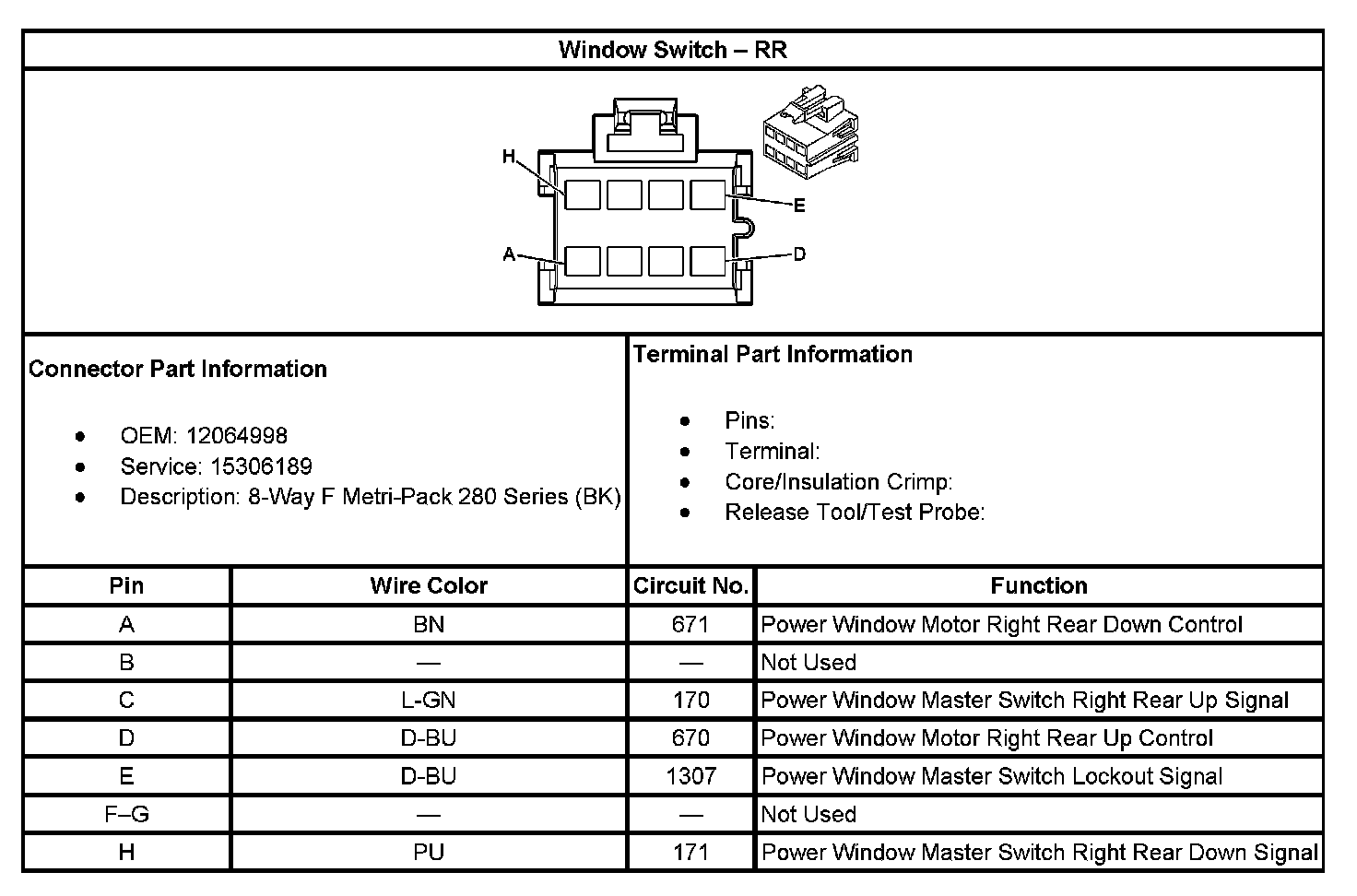

Window Switch - RR:
