Home >> Chevrolet >> 2006 >> HHR L4-2.2L >> Repair and Diagnosis >> Starting and Charging >> Testing and Inspection >> Component Tests and General Diagnostics >> Charging System Test

Charging System Test

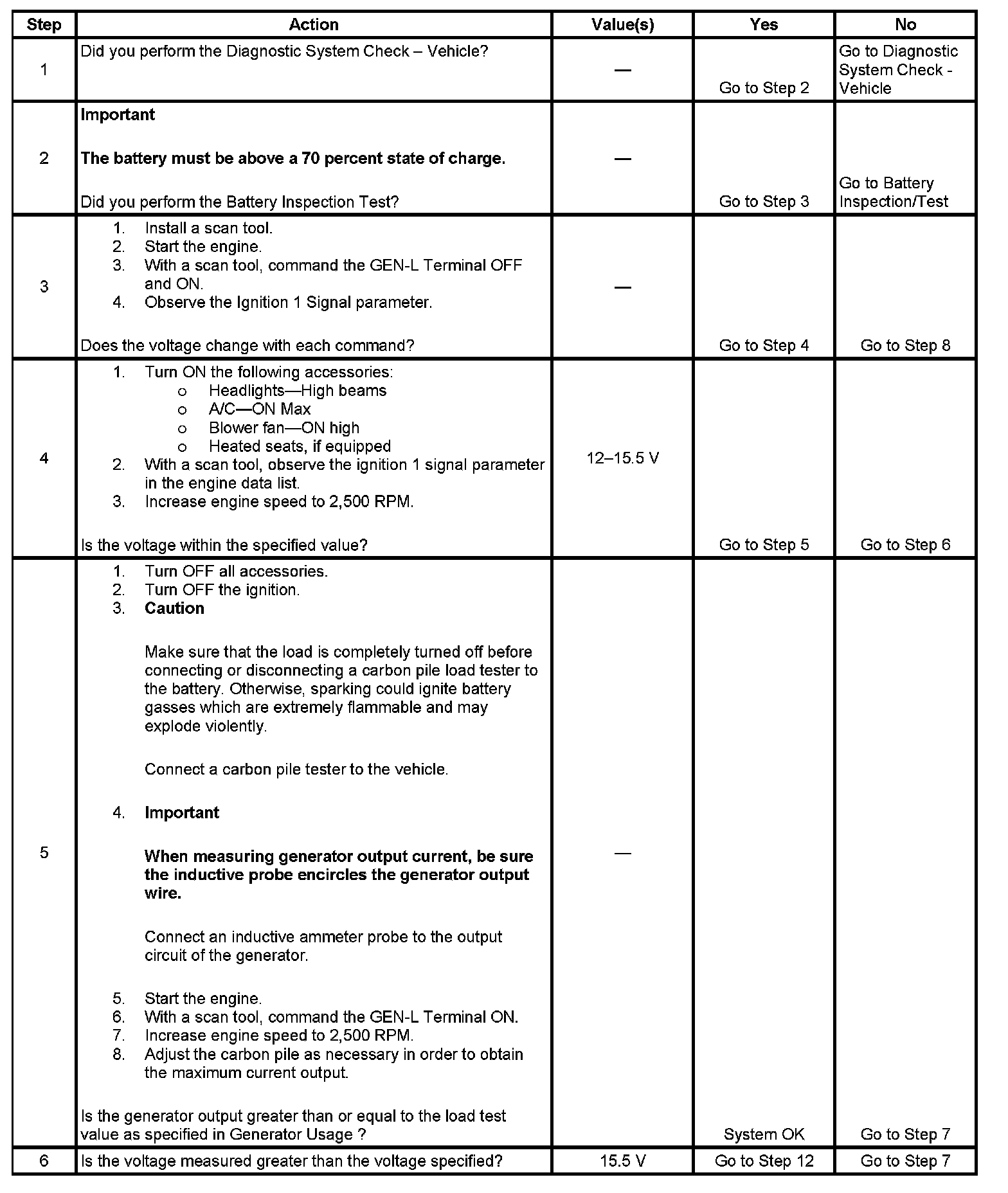

Step 1 - Step 6:

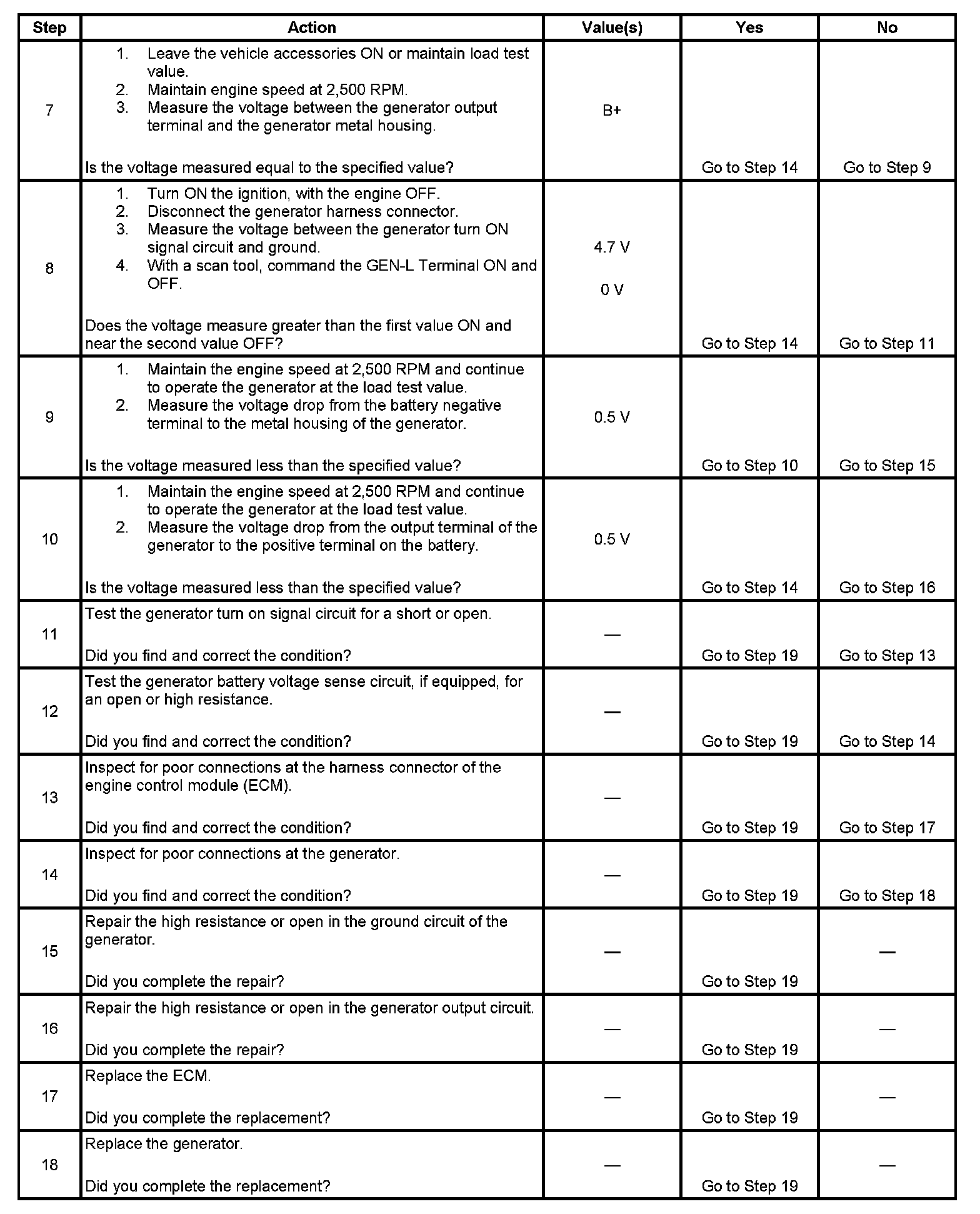

Step 7 - Step 18:



Step 19:
