Home >> Chevrolet >> 2006 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Mirrors >> System Diagram

System Diagram

Inside Rearview Mirror (Without RPO Code UE1/DD8):

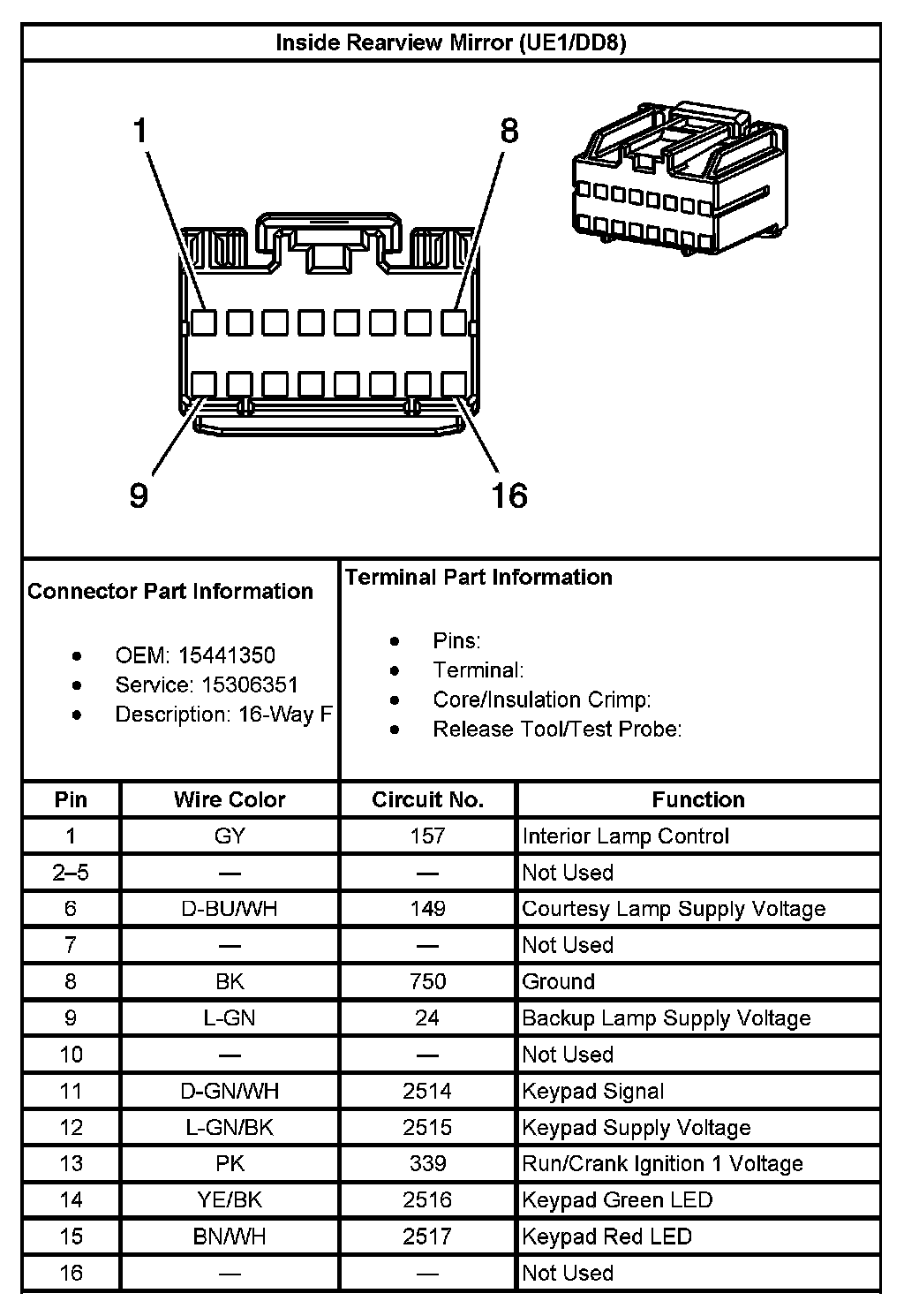

Inside Rearview Mirror (With RPO Code UE1/DD8):
