Home >> Chevrolet >> 2006 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Impact Sensor >> Inflatable Restraint Front Passenger Presence System (PPS) Sensor

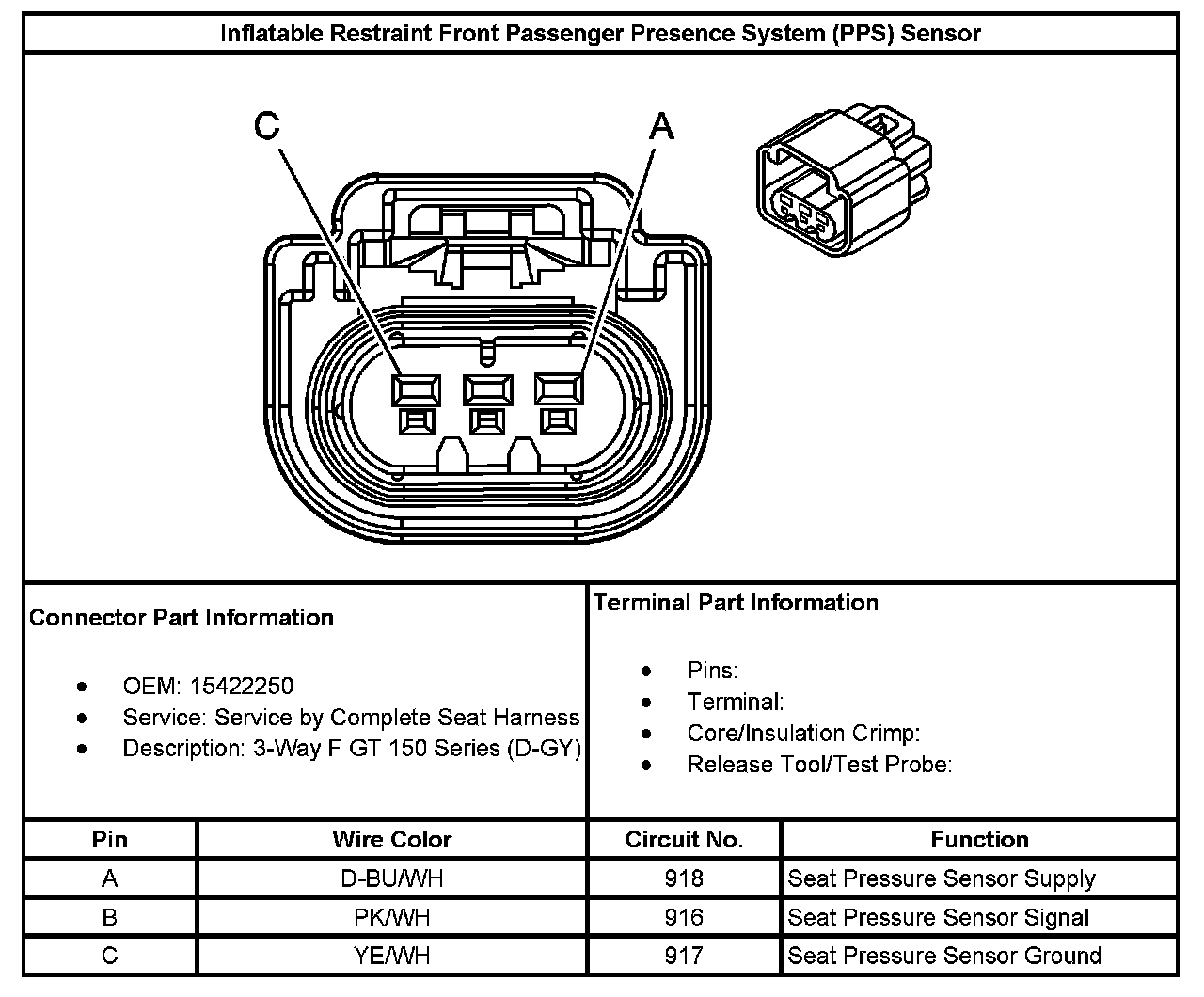

Inflatable Restraint Front Passenger Presence System (PPS) Sensor

Inflatable Restraint Front Passenger Presence System (PPS) Sensor:
