Home >> Chevrolet >> 2006 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Front Door Latch

Front Door Latch

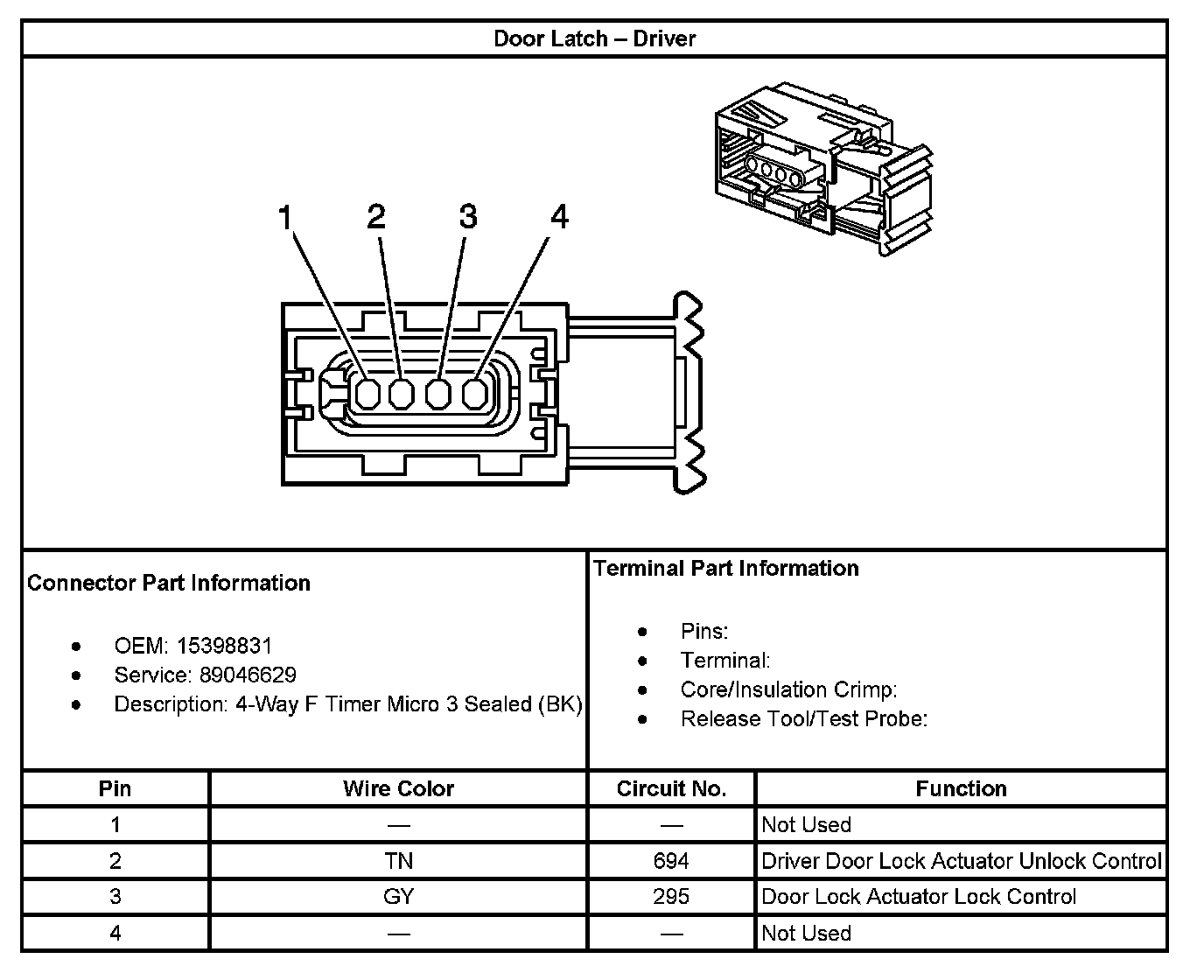

Door Latch - Driver:

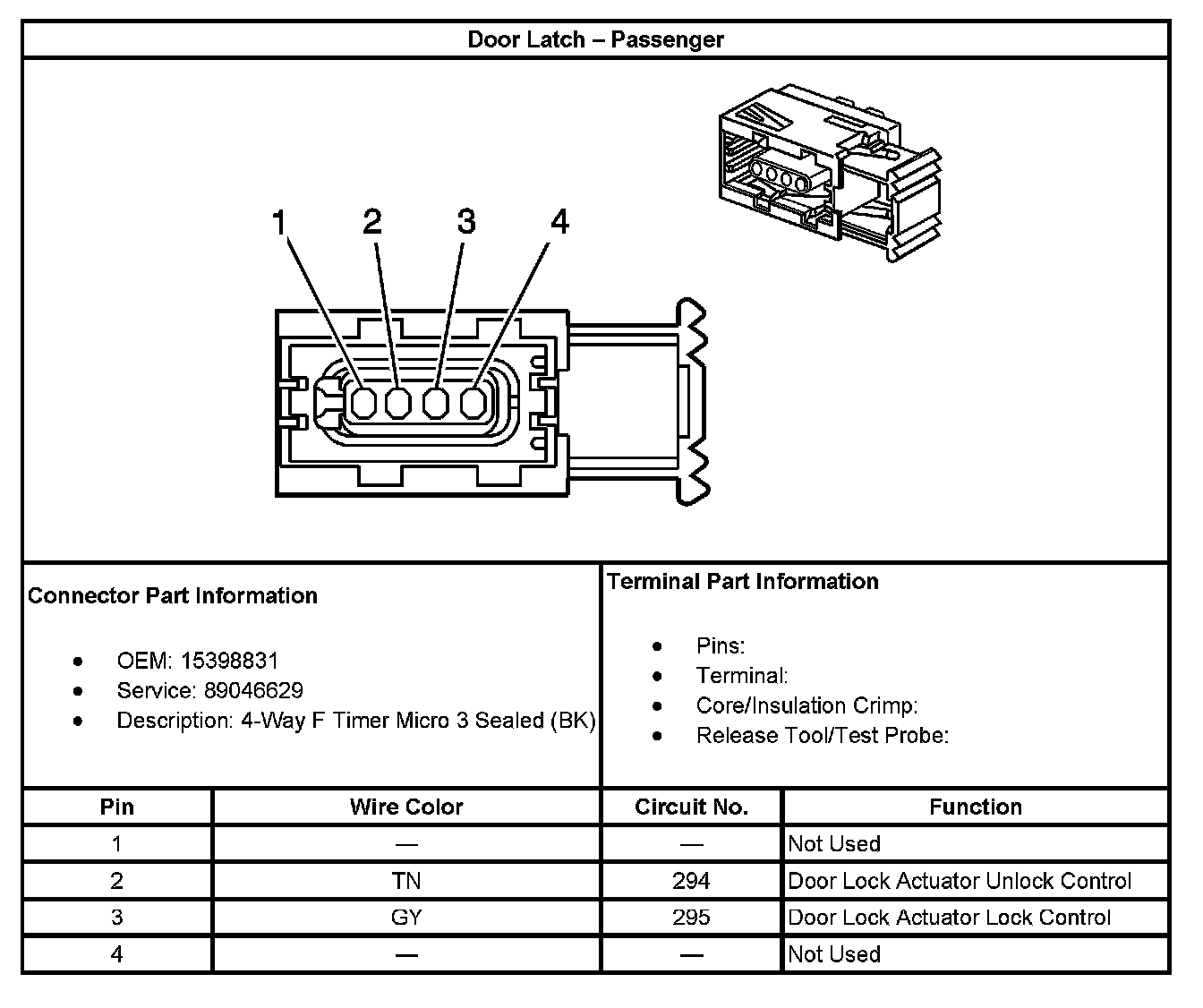

Door Latch - Passenger:
