Home >> Chevrolet >> 2006 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Switch

Door Switch

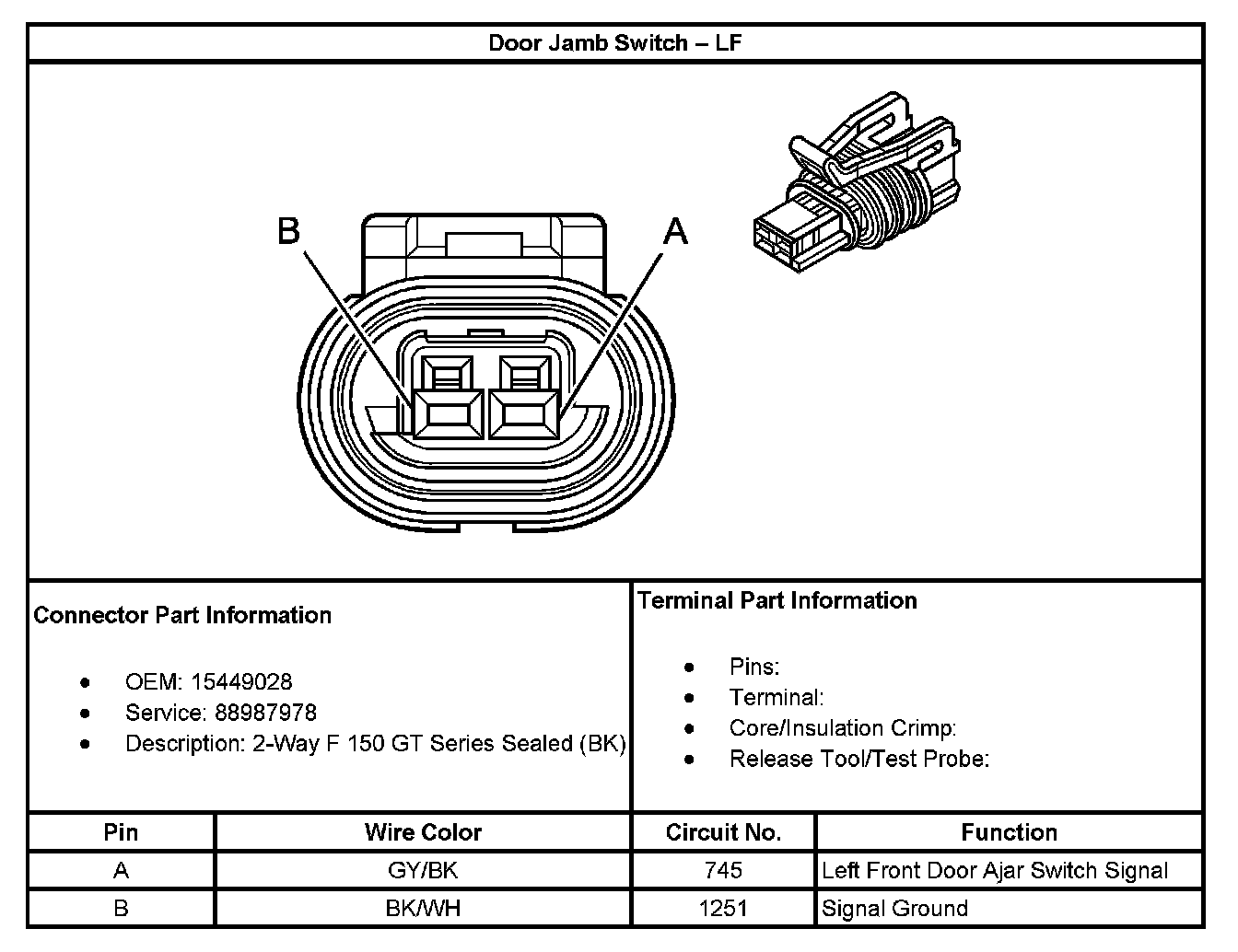

Door Jamb Switch - LF:

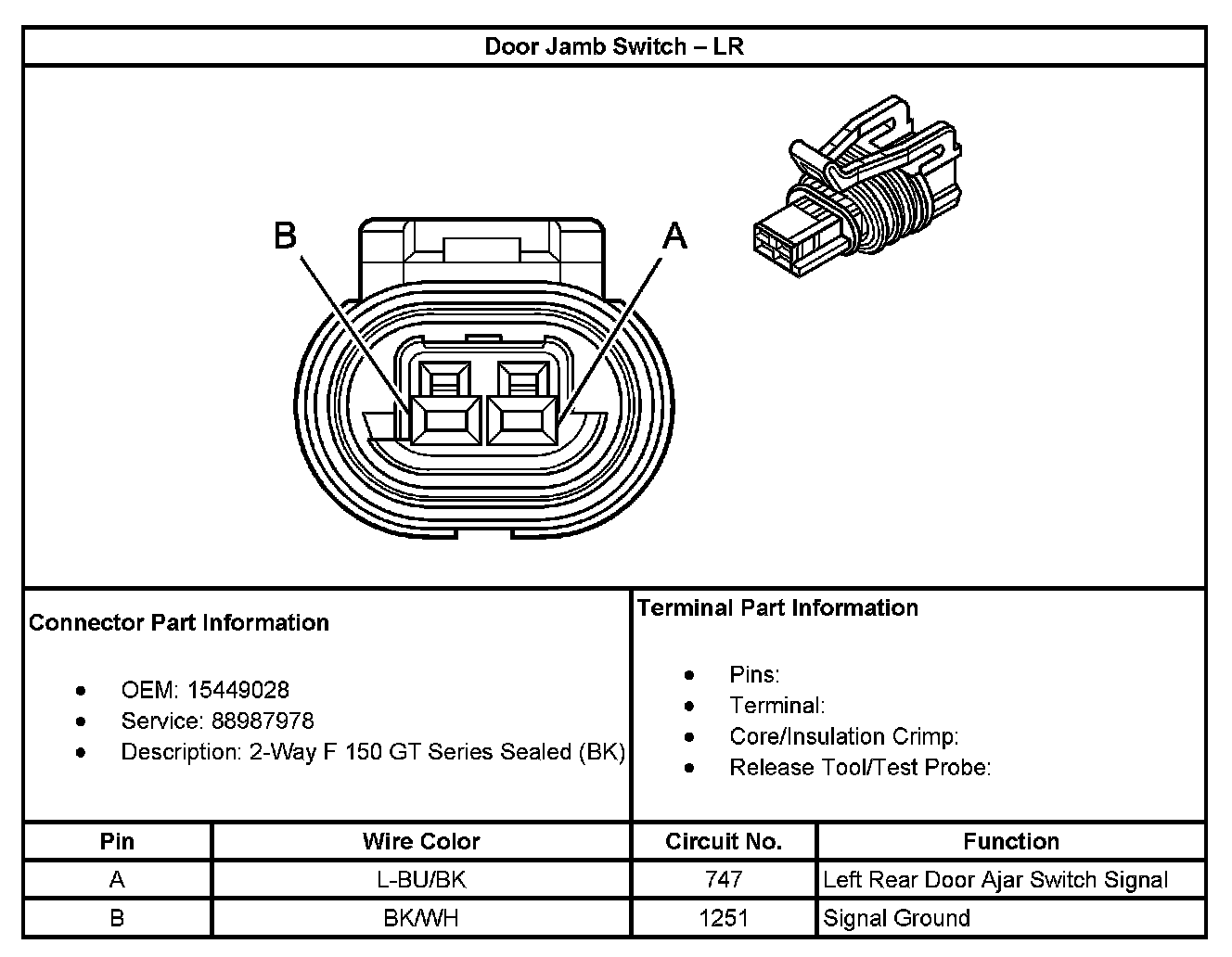

Door Jamb Switch - LR:

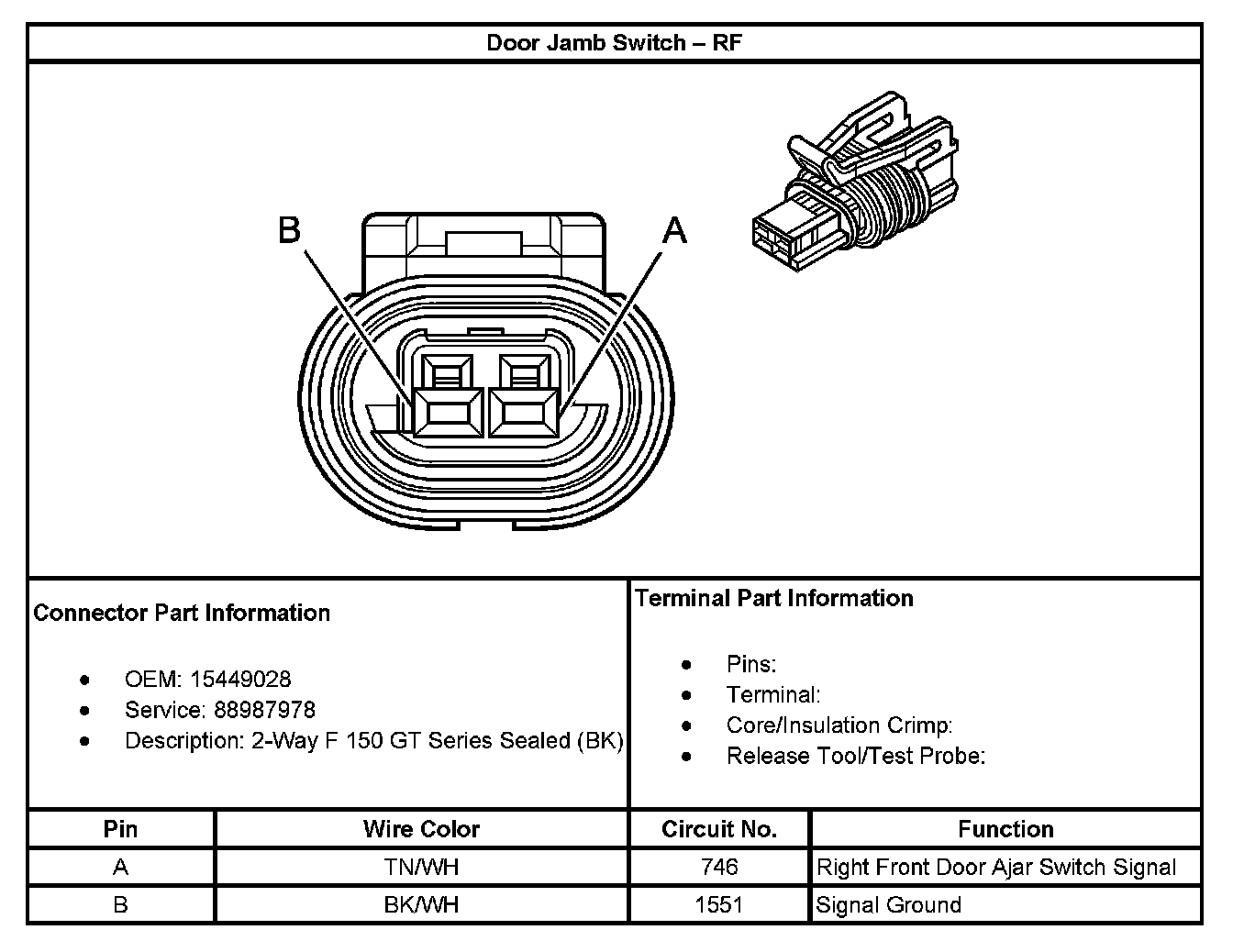

Door Jamb Switch - RF:

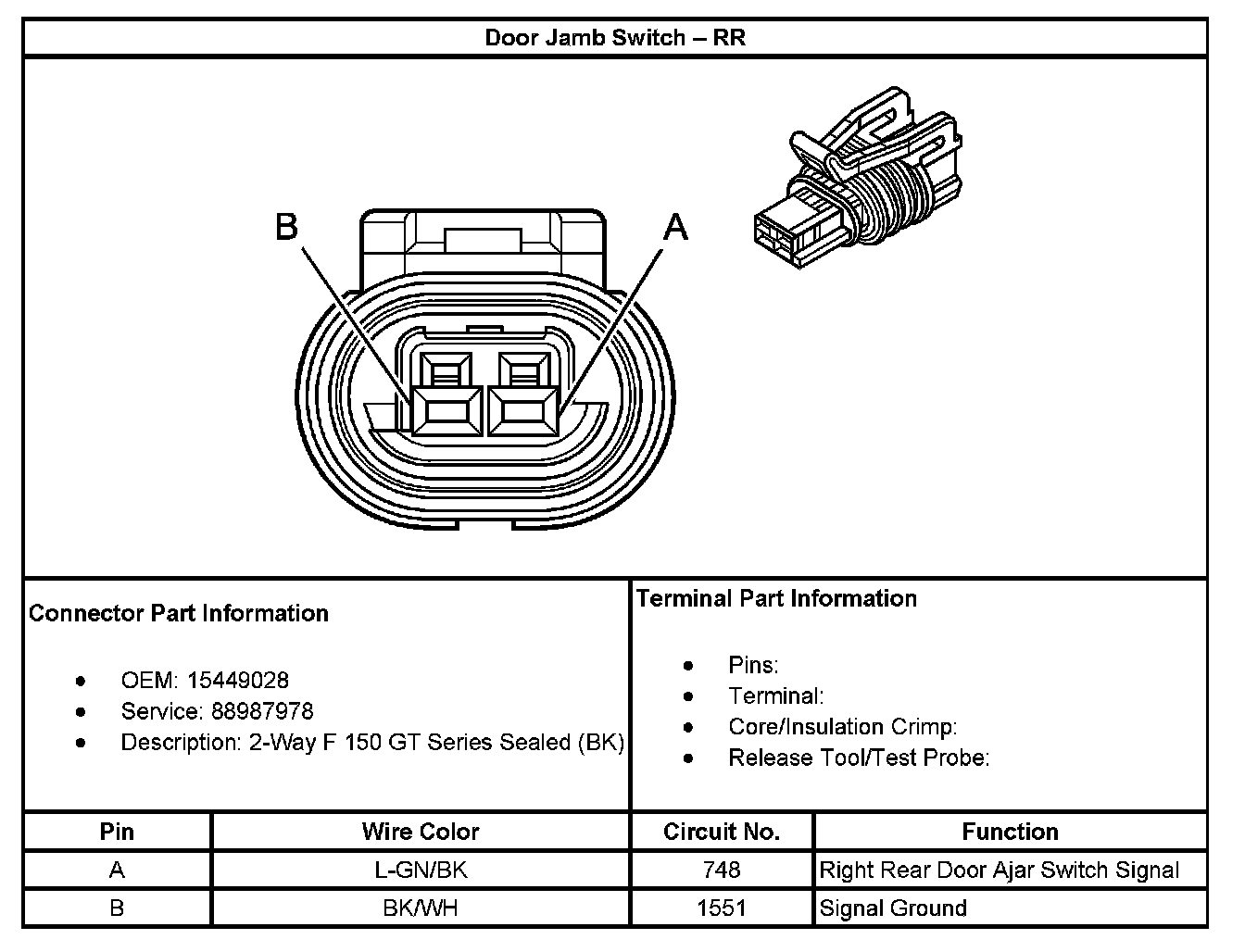

Door Jamb Switch - RR:
