Home >> Chevrolet >> 2006 >> HHR L4-2.2L >> Repair and Diagnosis >> Diagrams >> Components

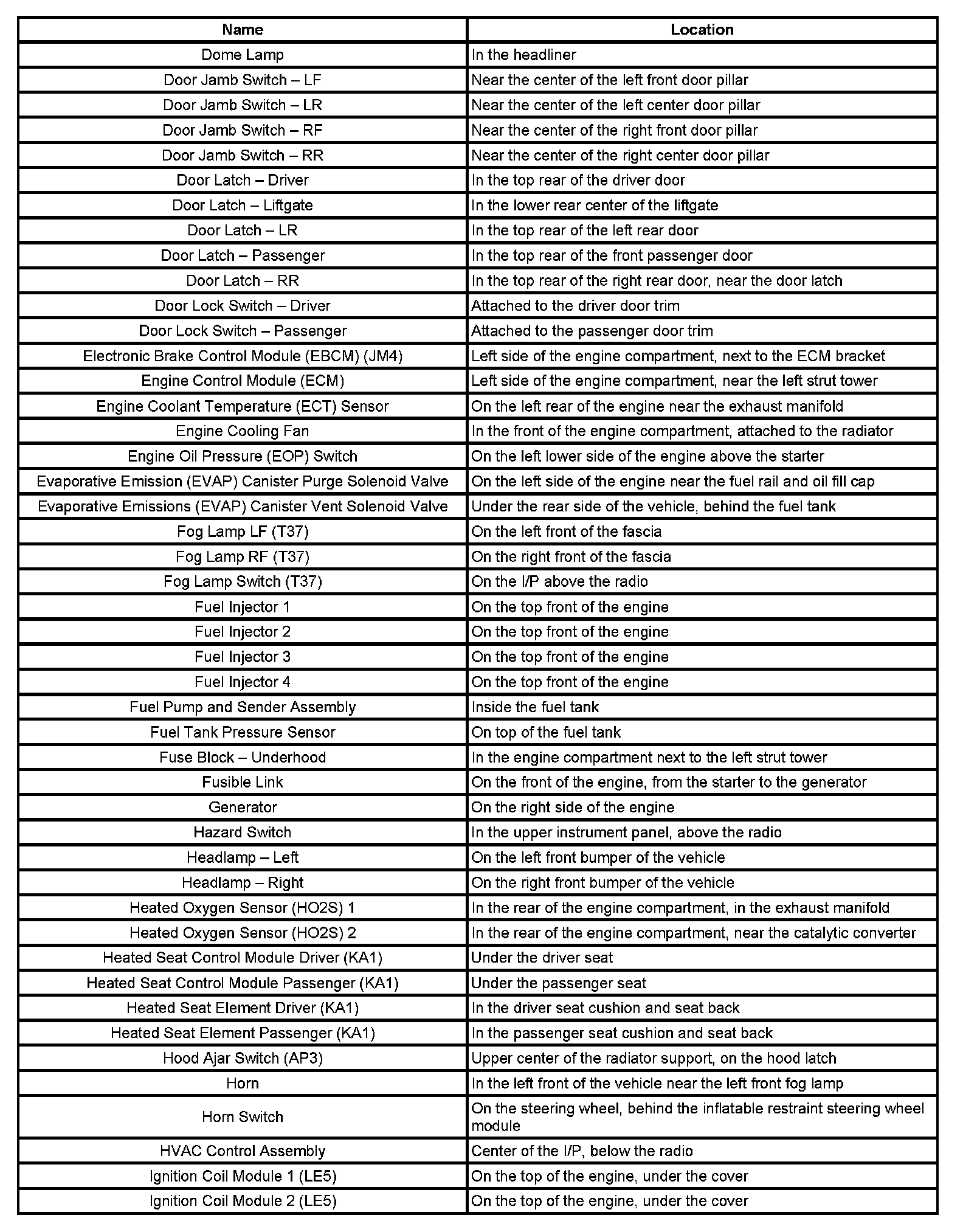

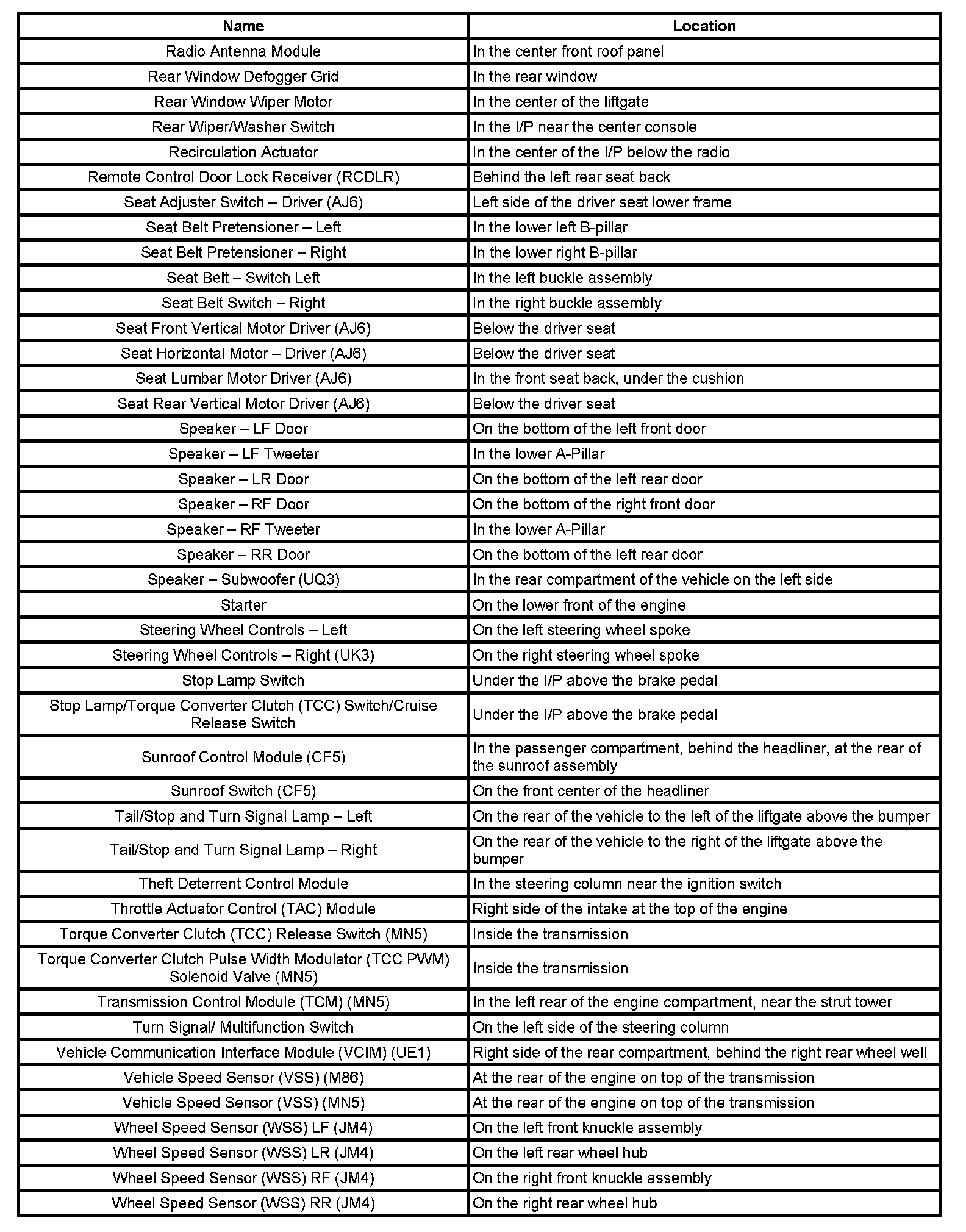

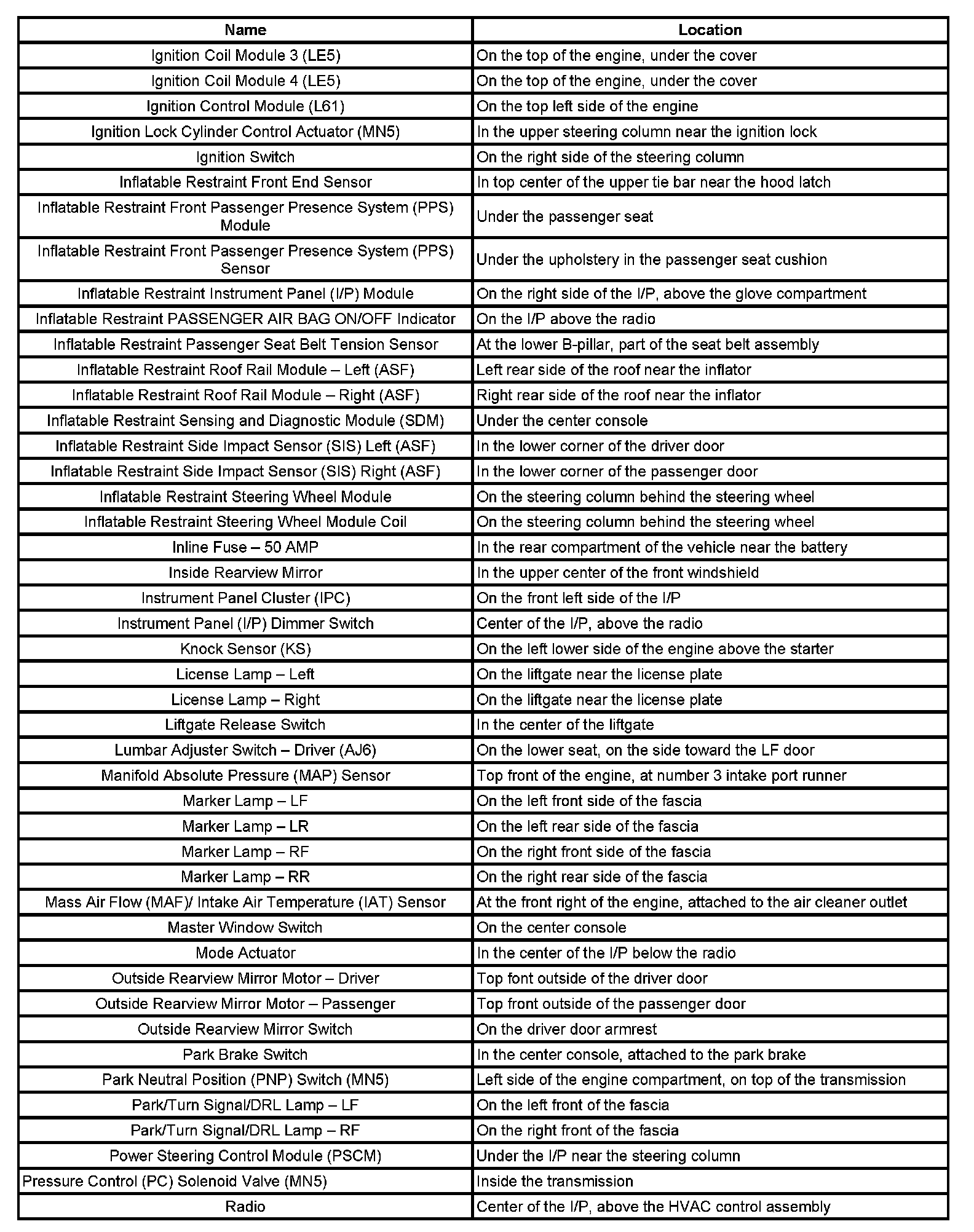

Components

Do - Ig:




Ig - Ra:




Ra - Wh:




Wi - Wi:
