Home >> Chevrolet >> 2006 >> Express 2500 V8-6.6L DSL Turbo VIN 2 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Coolant Temperature Sensor/Switch (For Computer) >> Specifications

Coolant Temperature Sensor/Switch (For Computer): Specifications

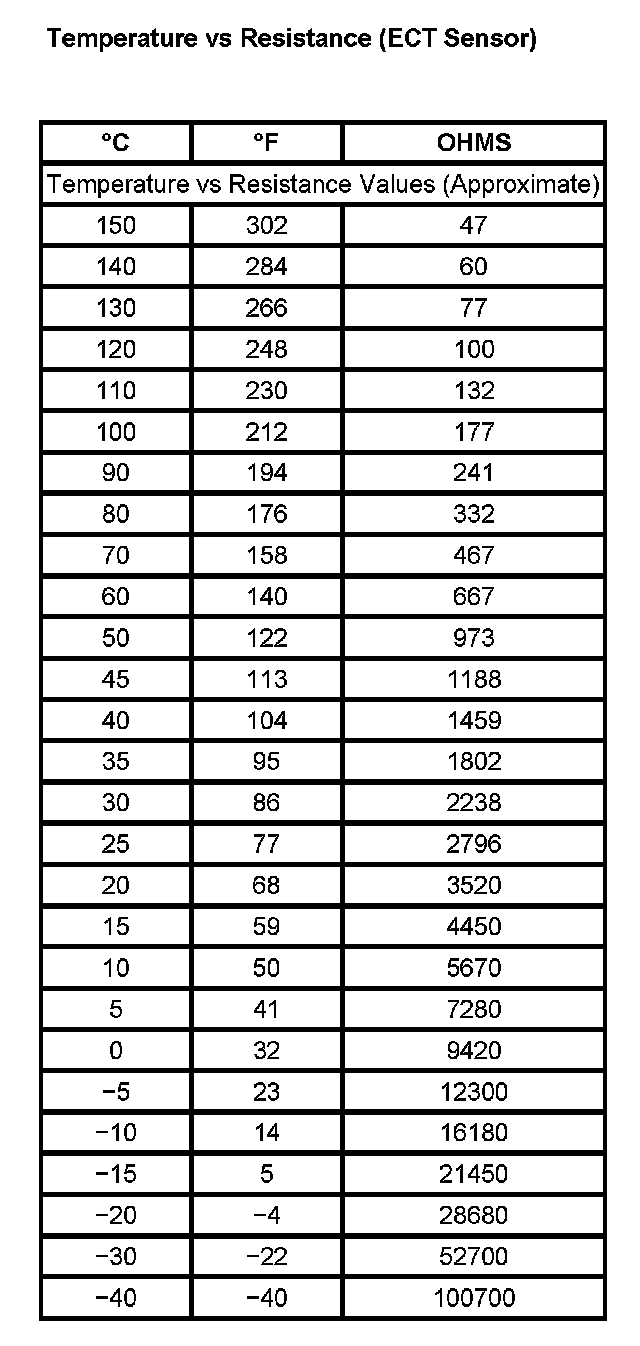

Temperature vs Resistance (ECT Sensor):
