Auxiliary Cabin Heater Control Module

Coolant Heater Control - C1 (With RPO Code K08):

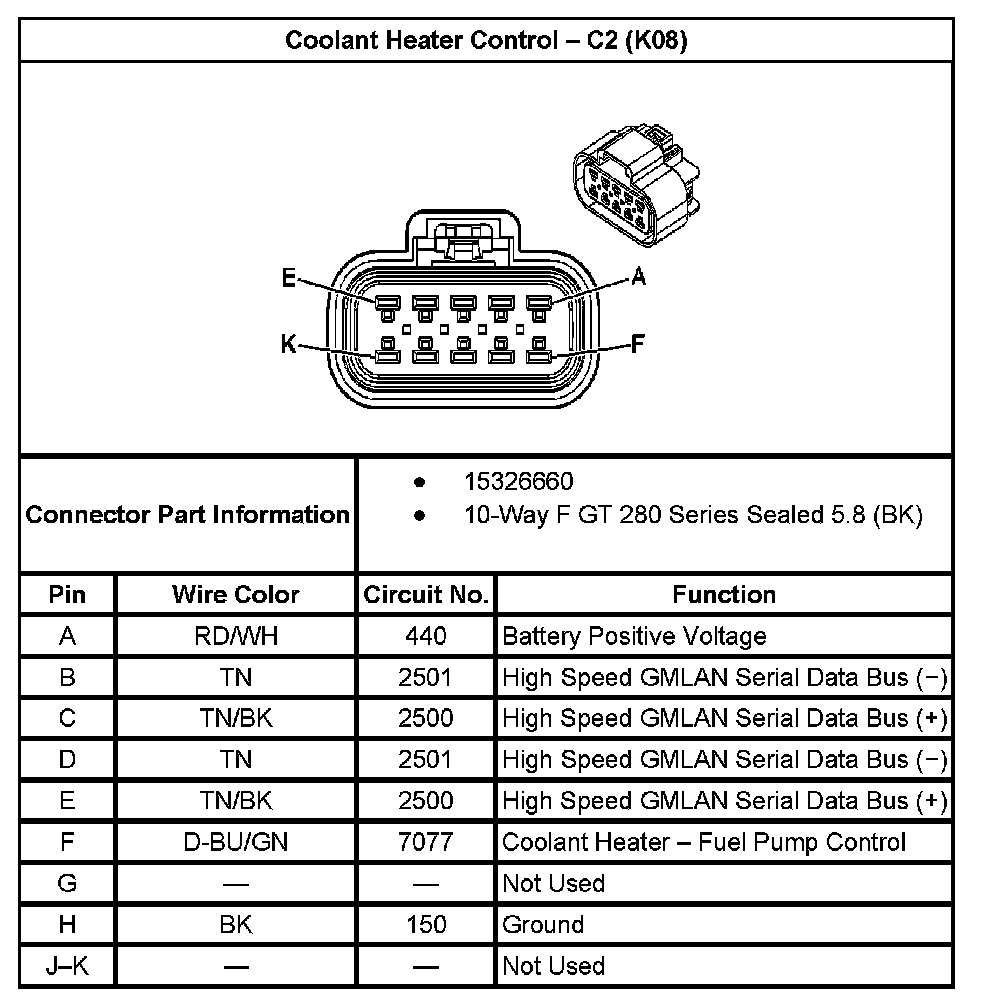

Coolant Hater Control - C2 (With RPO Code K08):
