Home >> Chevrolet >> 2006 >> Express 1500 AWD V8-5.3L VIN T >> Repair and Diagnosis >> Diagrams >> Components

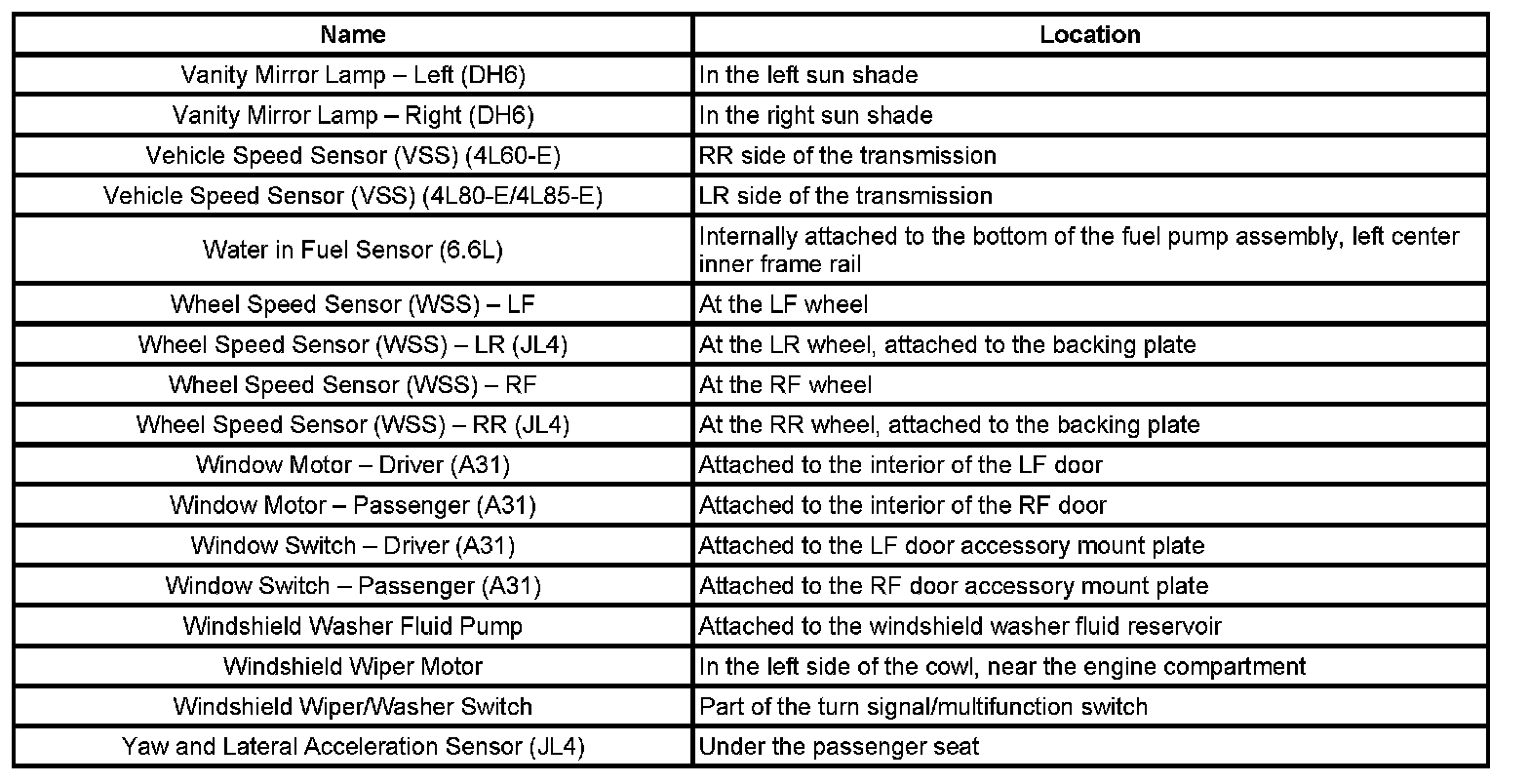

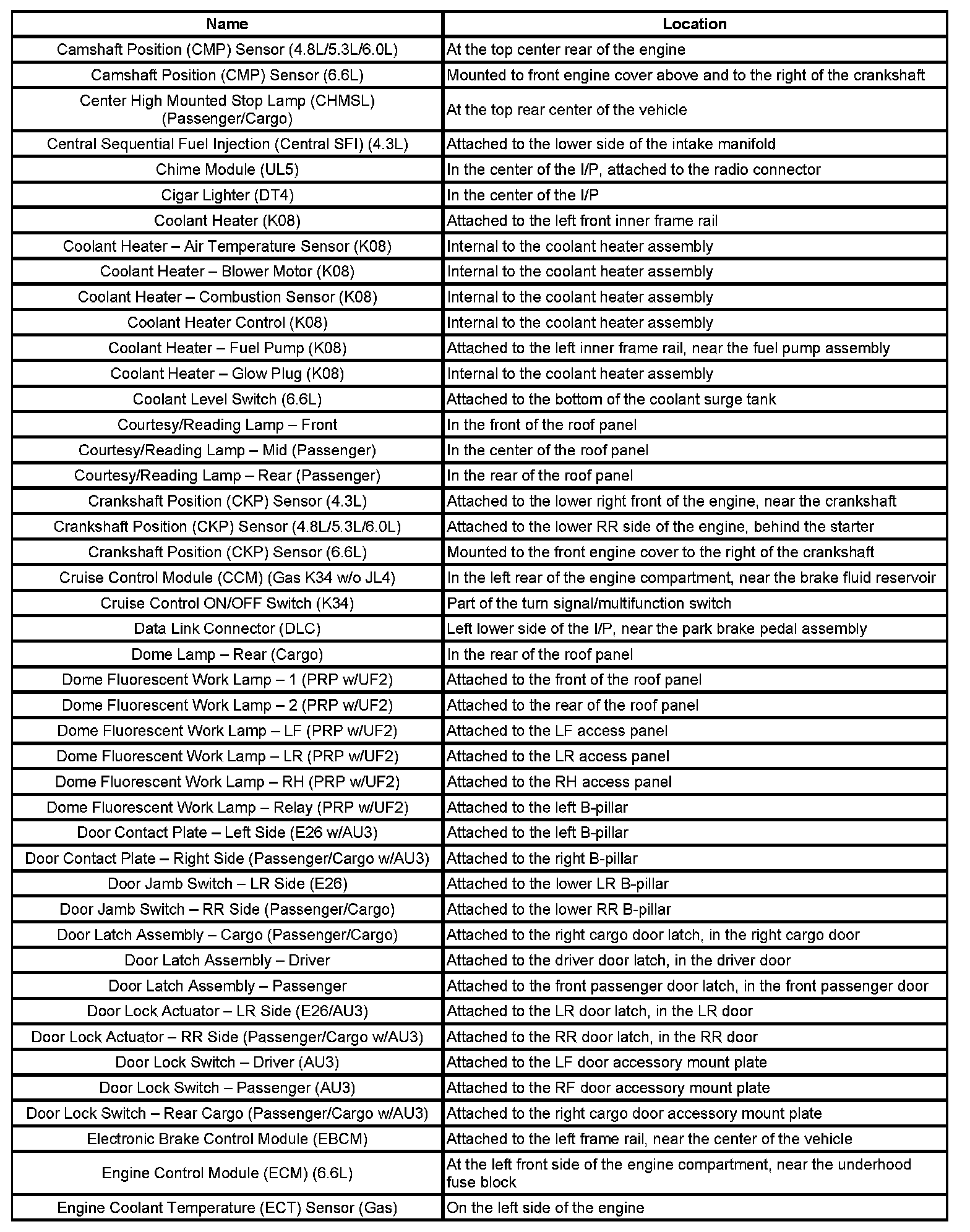

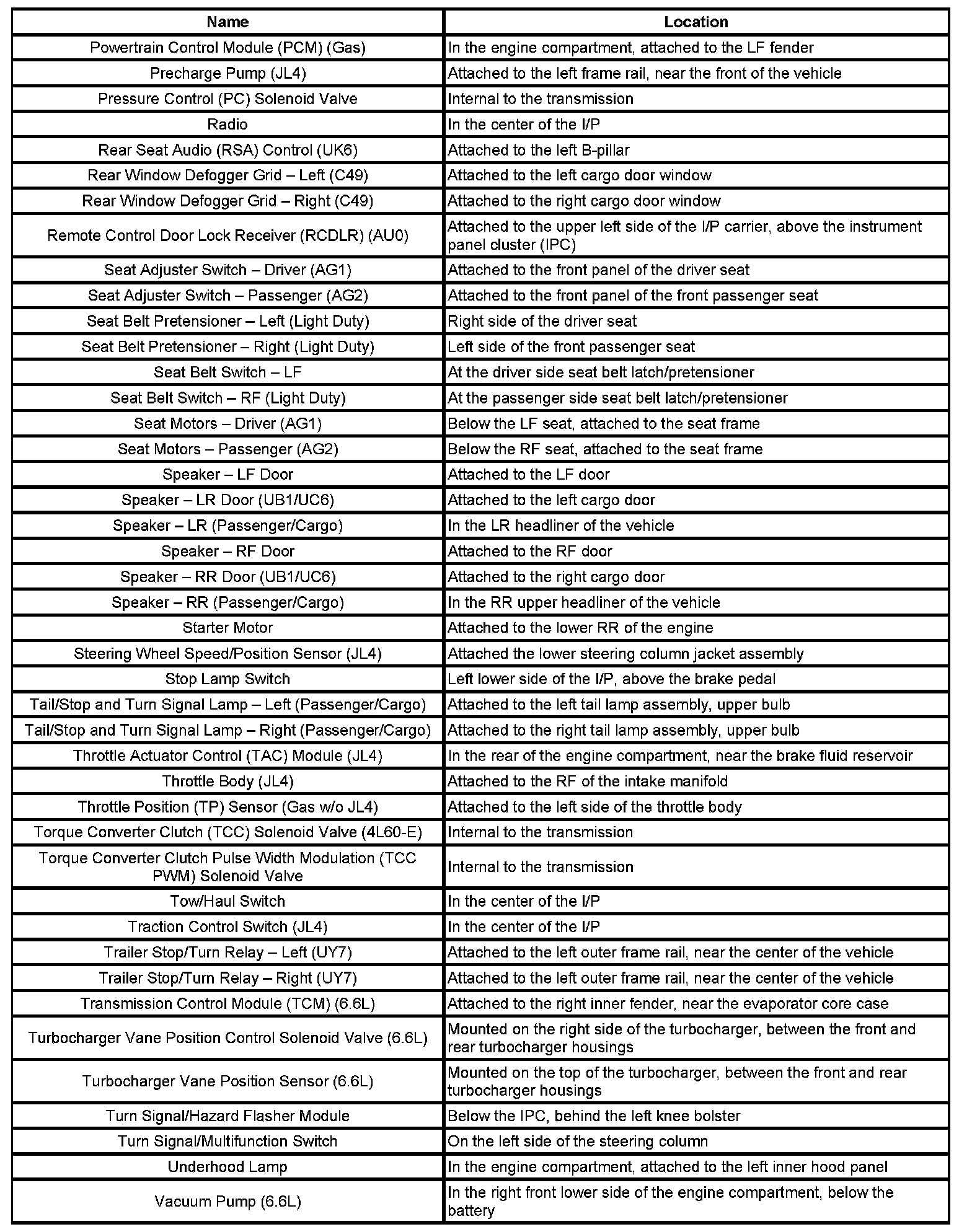

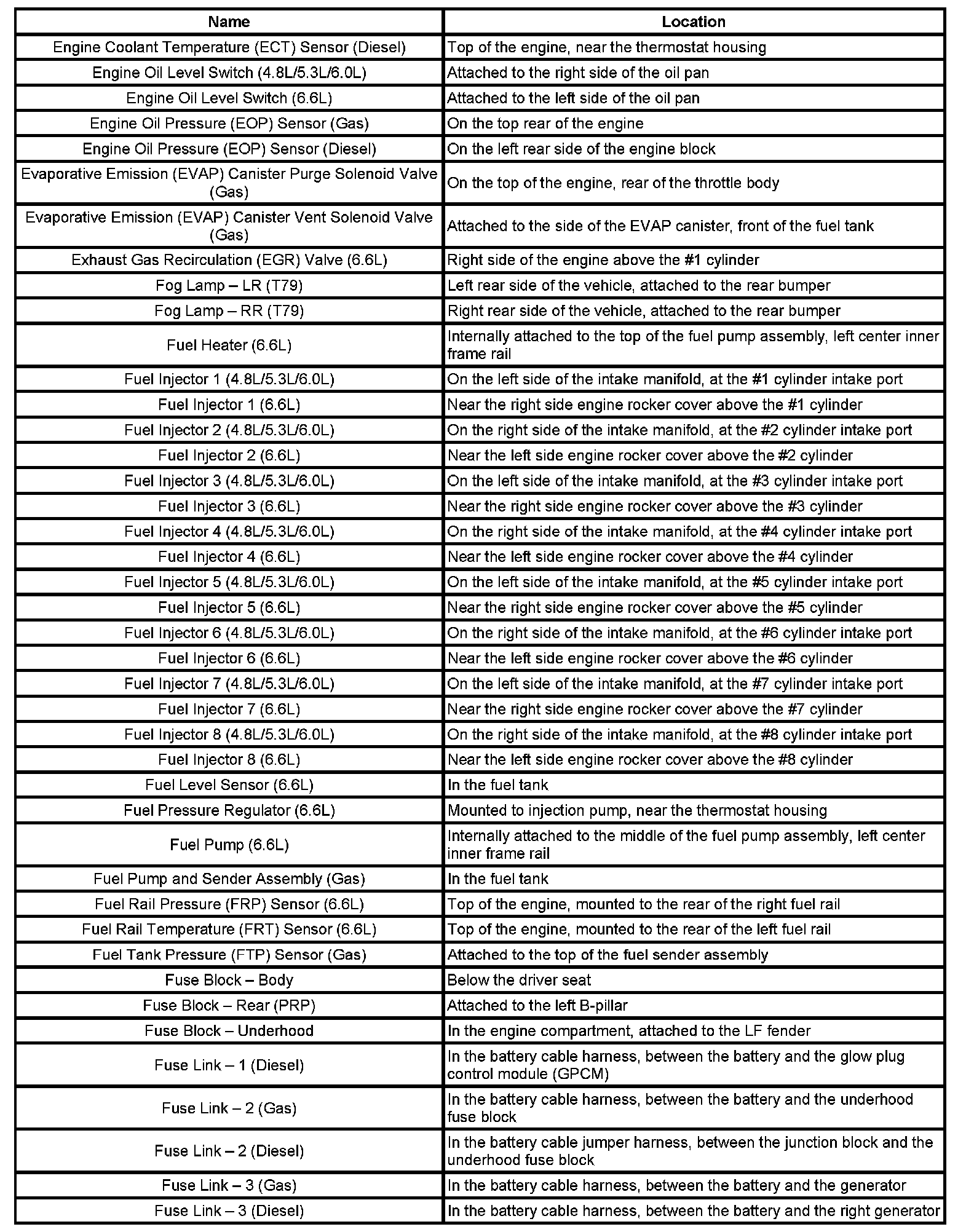

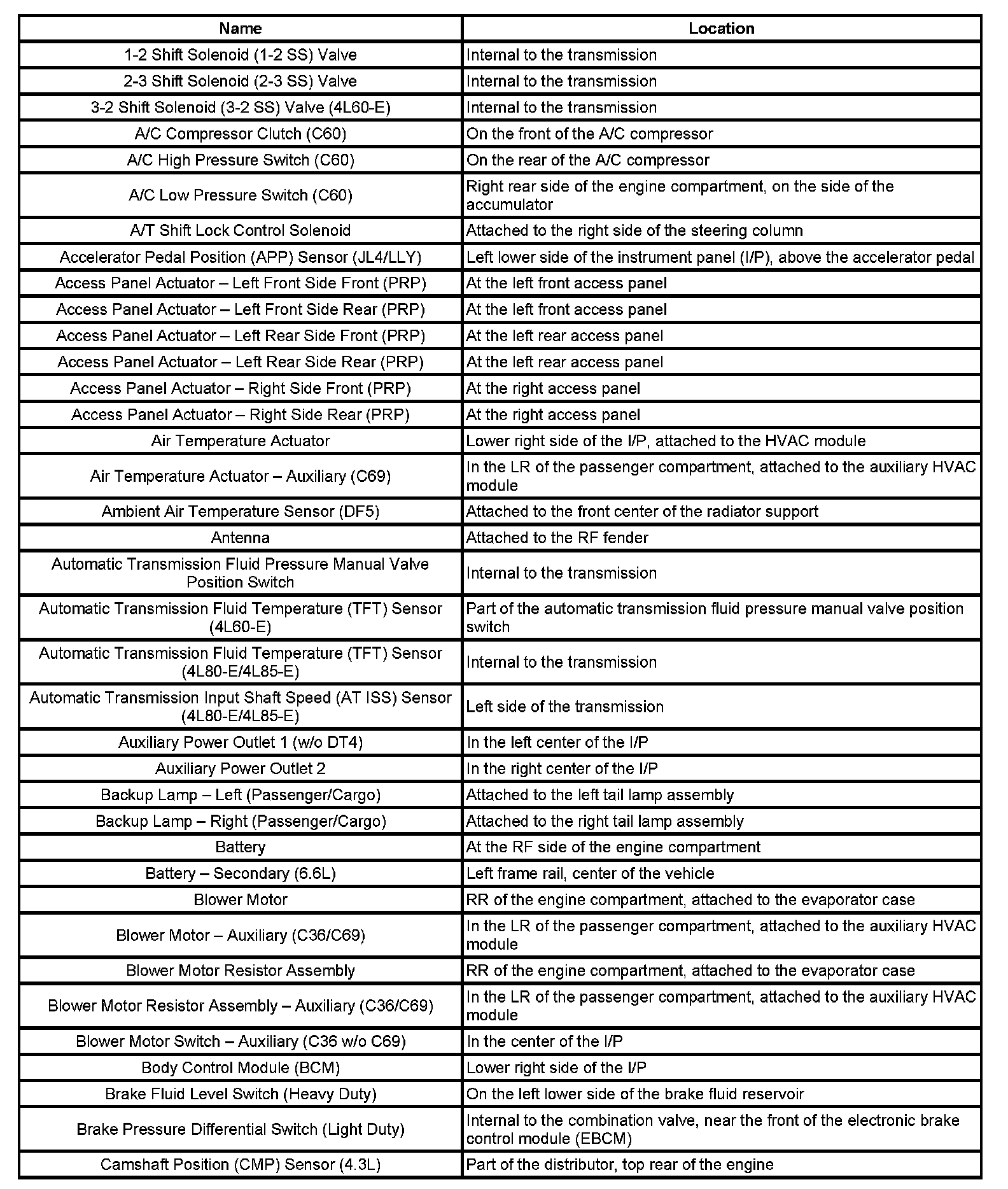

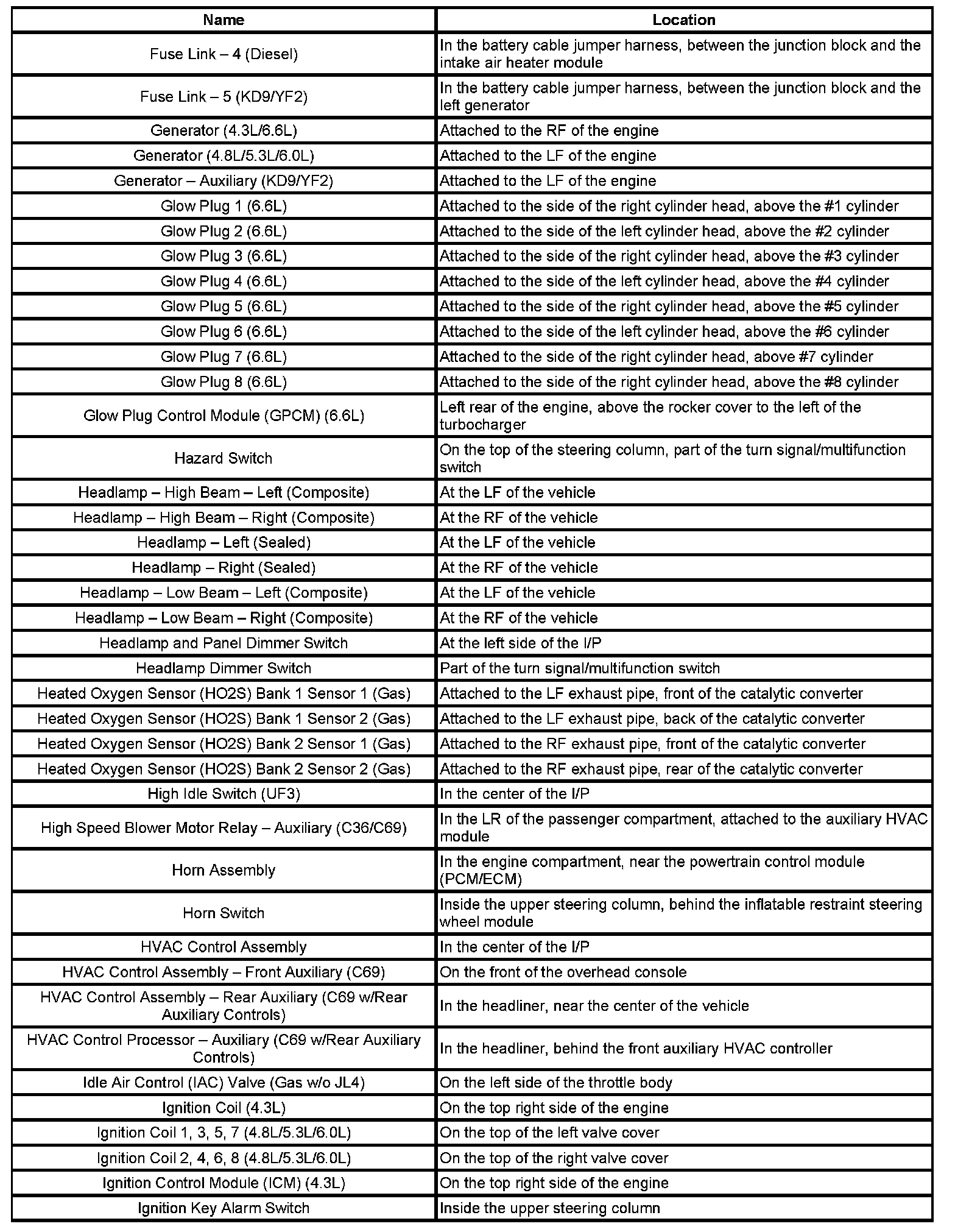

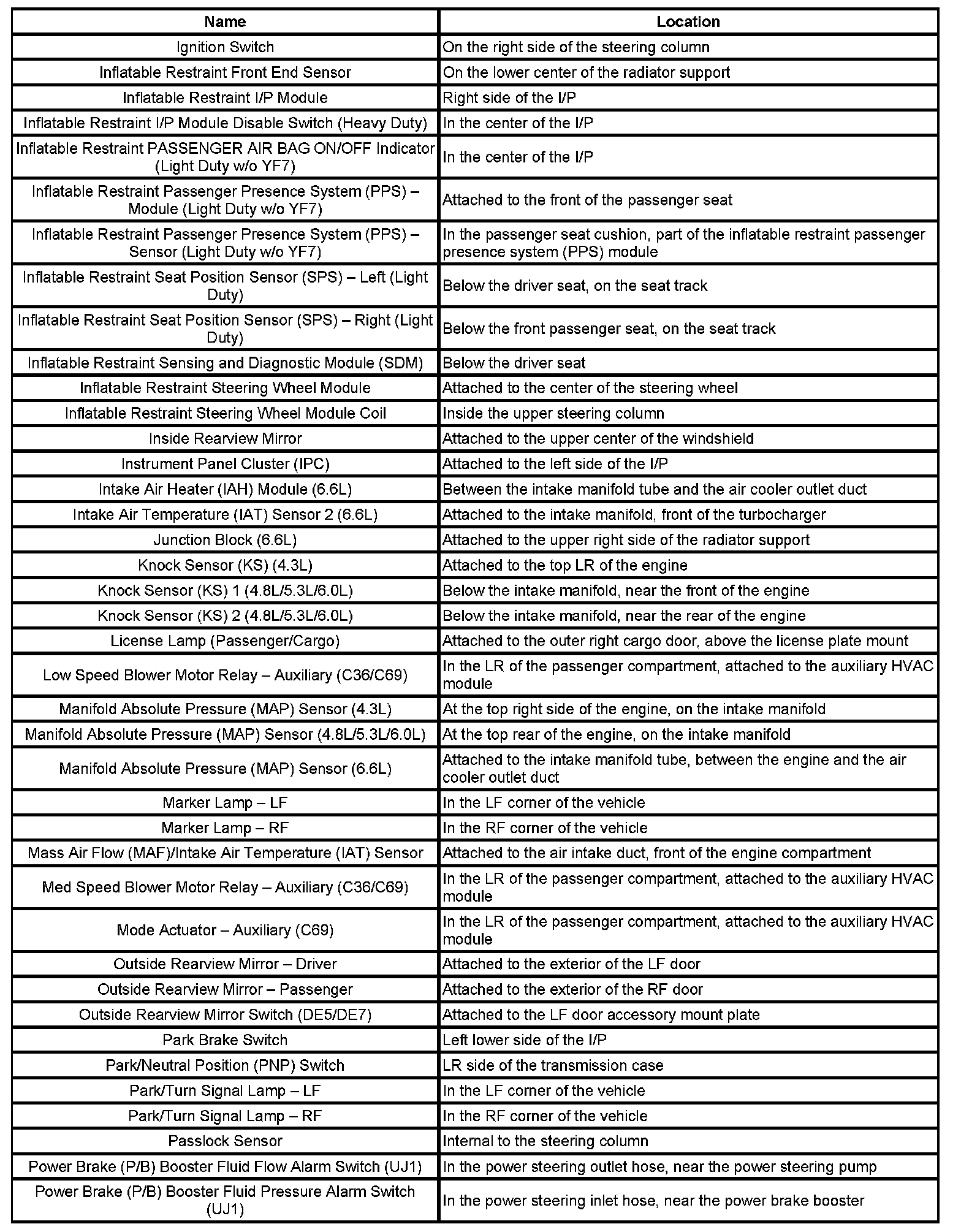

Components

1-2 Sh - Ca:

Ca - En:

En - Fu:

Fu - Ig:

Ig - Po:

Po - Va:

Va - Ya:
