Intake Manifold

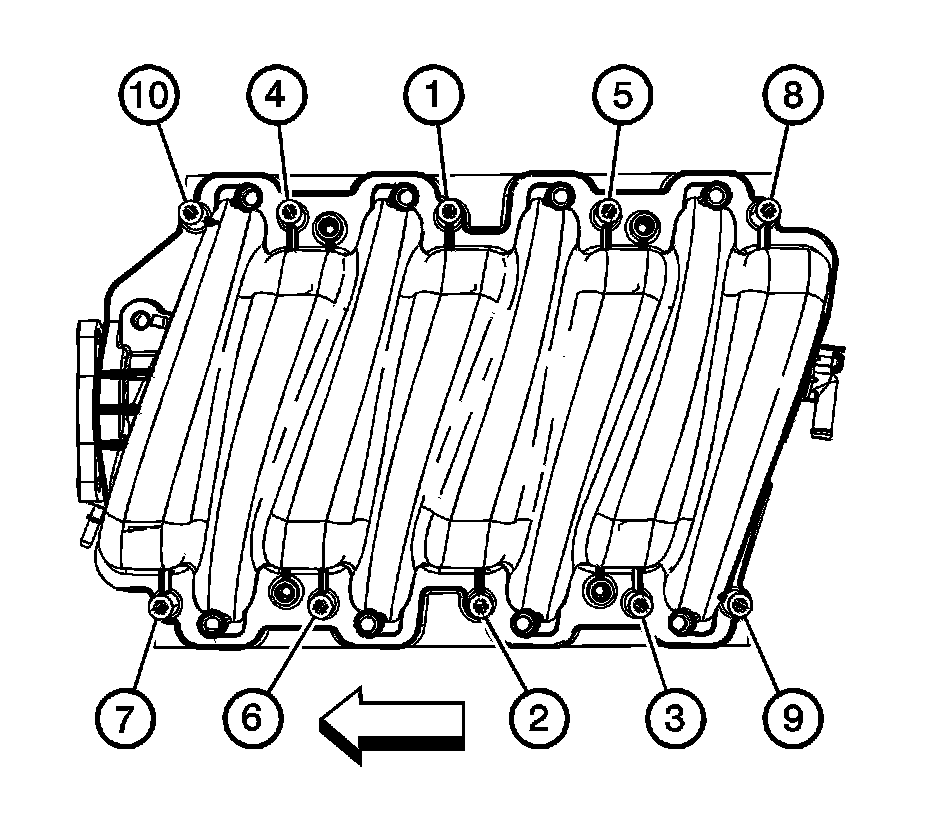

Intake Manifold Bolts - First Pass in Sequence 5 Nm (44 inch lbs.)
Intake Manifold Bolts - Final Pass in Sequence 10 Nm (89 inch lbs.)
Throttle Body Bolts 10 Nm (89 inch lbs.)
