Active Exhaust System Control Module: Locations

Exhaust System Component Views

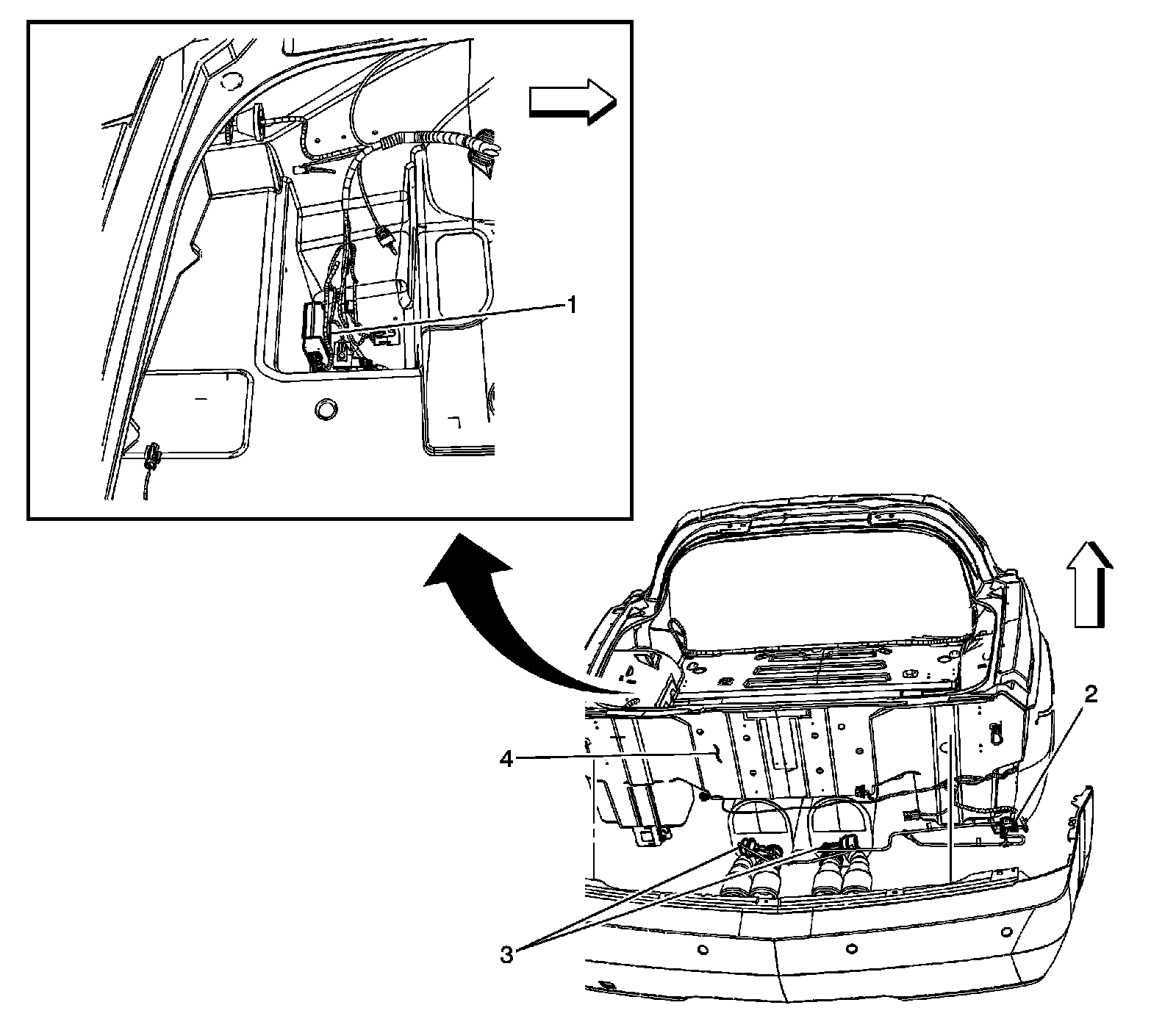

Rear Exhaust Area (LS7):

1 - Exhaust Flow Control Module
2 - Exhaust Flow Control Solenoid
