Manifold Pressure/Vacuum Sensor: Service and Repair

MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR REPLACEMENT

REMOVAL PROCEDURE

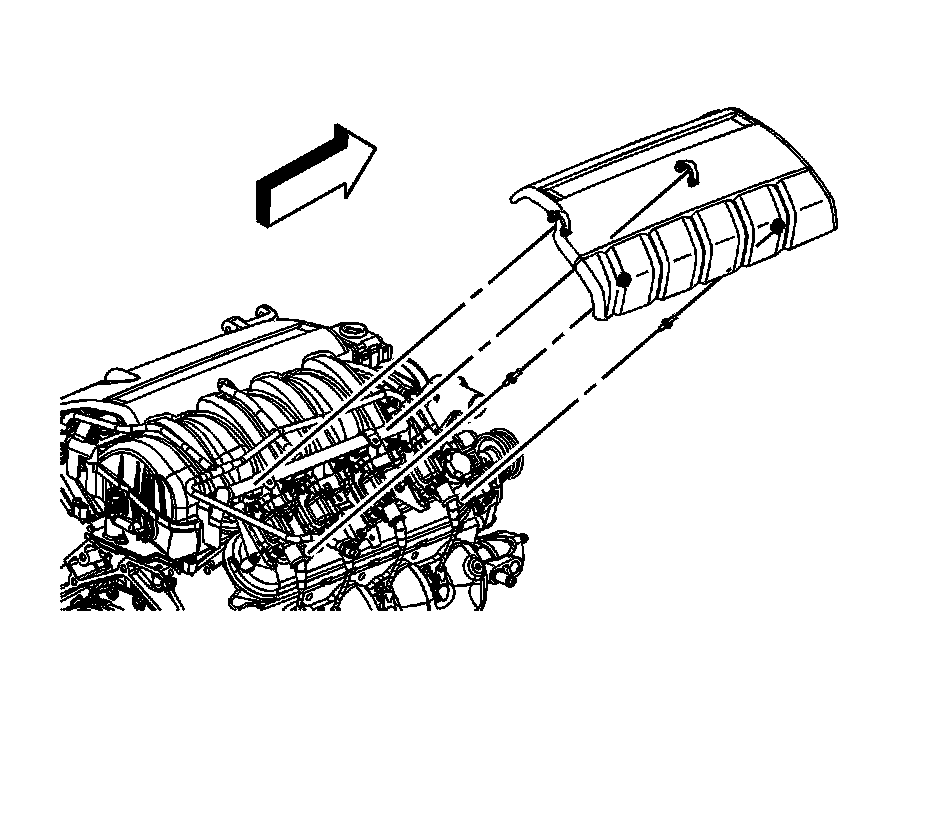

1. Remove the right engine sight shield.

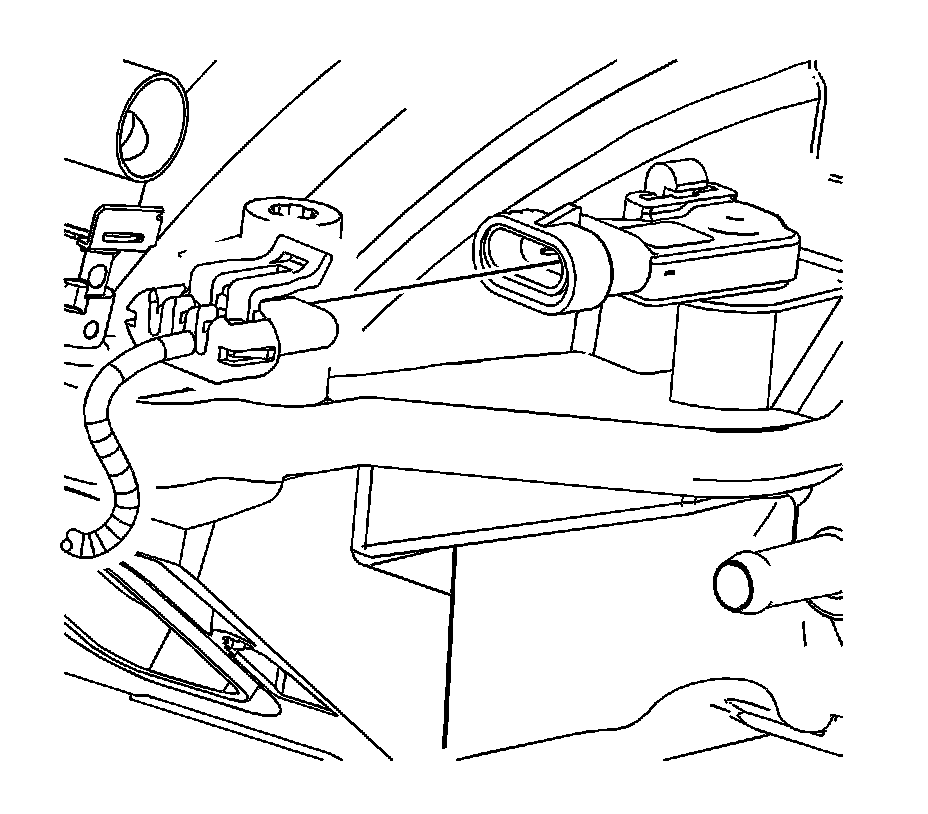

2. Disconnect the electrical connector for the MAP sensor.

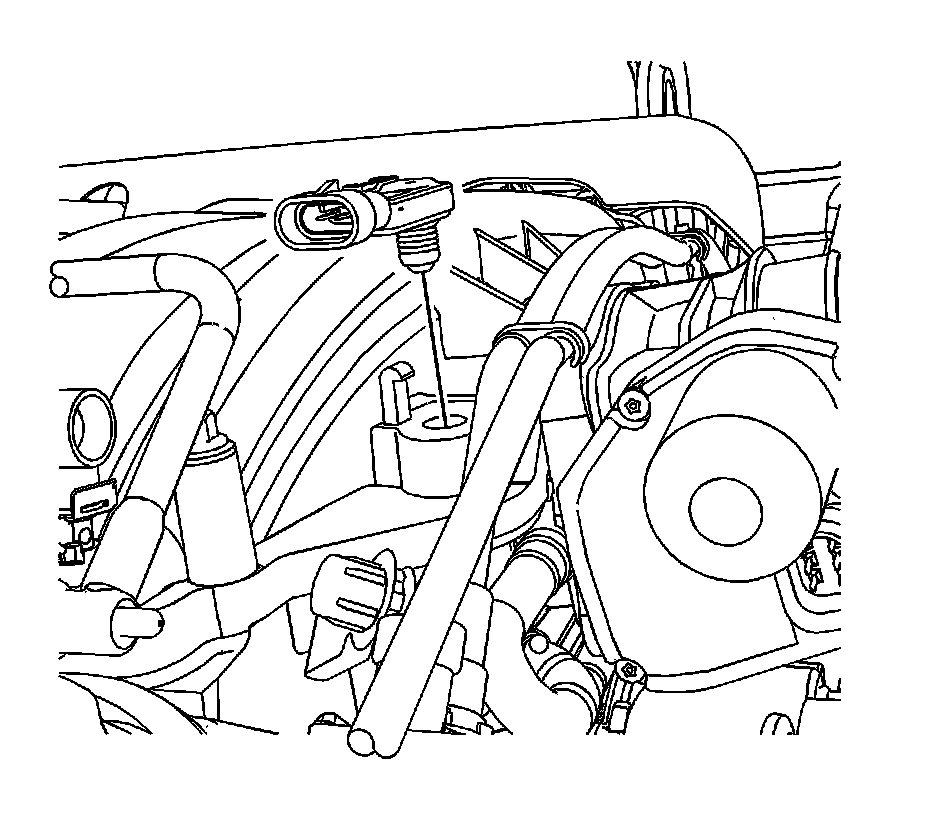

3. Remove the manifold absolute pressure (MAP) sensor.

INSTALLATION PROCEDURE




1. Install the MAP sensor.




2. Reconnect the MAP sensor electrical connector.




3. Install engine sight shield.
