Suspension Control Module

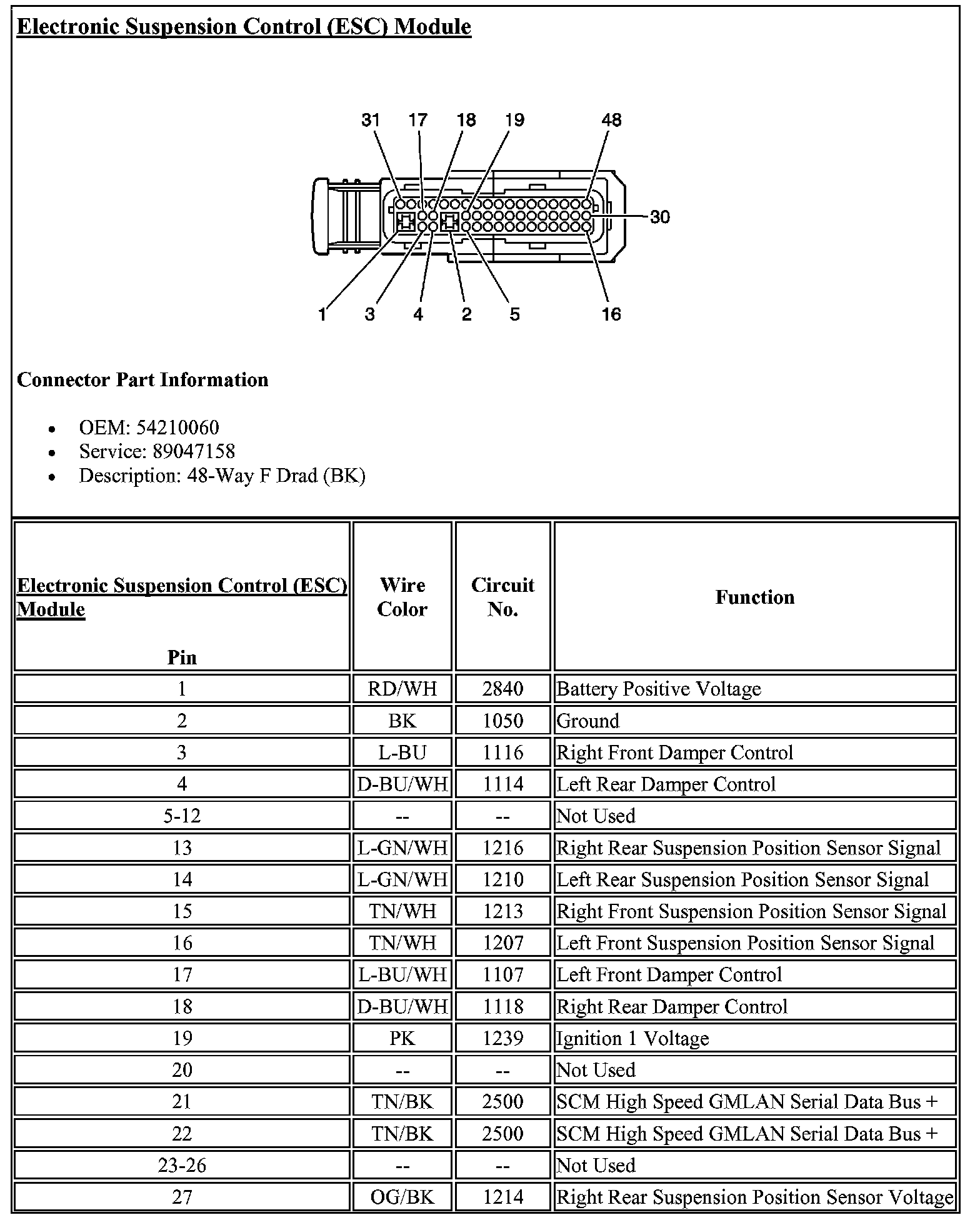

Electronic Suspension Control (ESC) Module (Part 1):

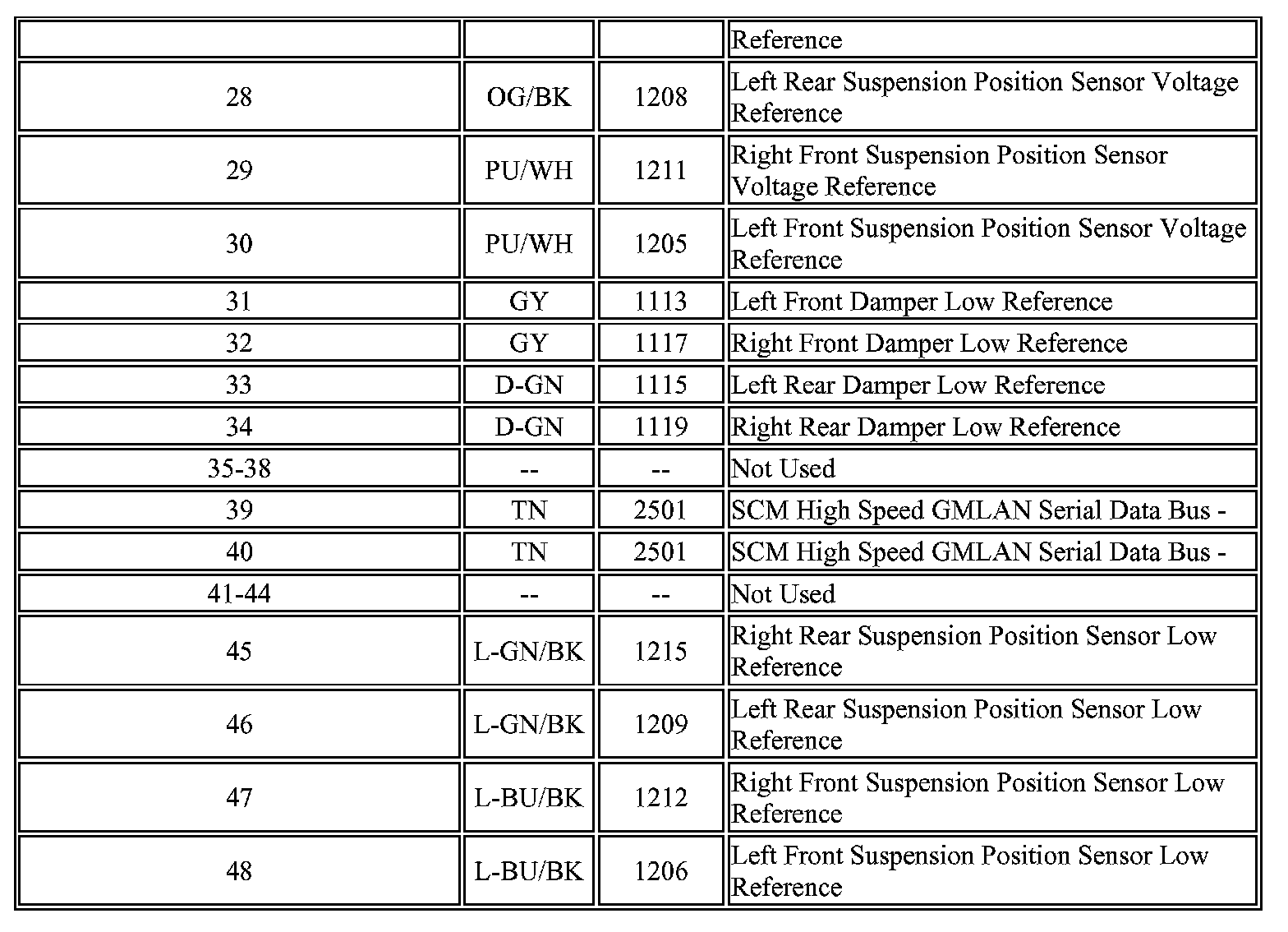

Electronic Suspension Control (ESC) Module (Part 2):
