Corvette V8-7.0L VIN E
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Memory Positioning Module
Memory Positioning Module
Memory Seat Module - Driver C1:

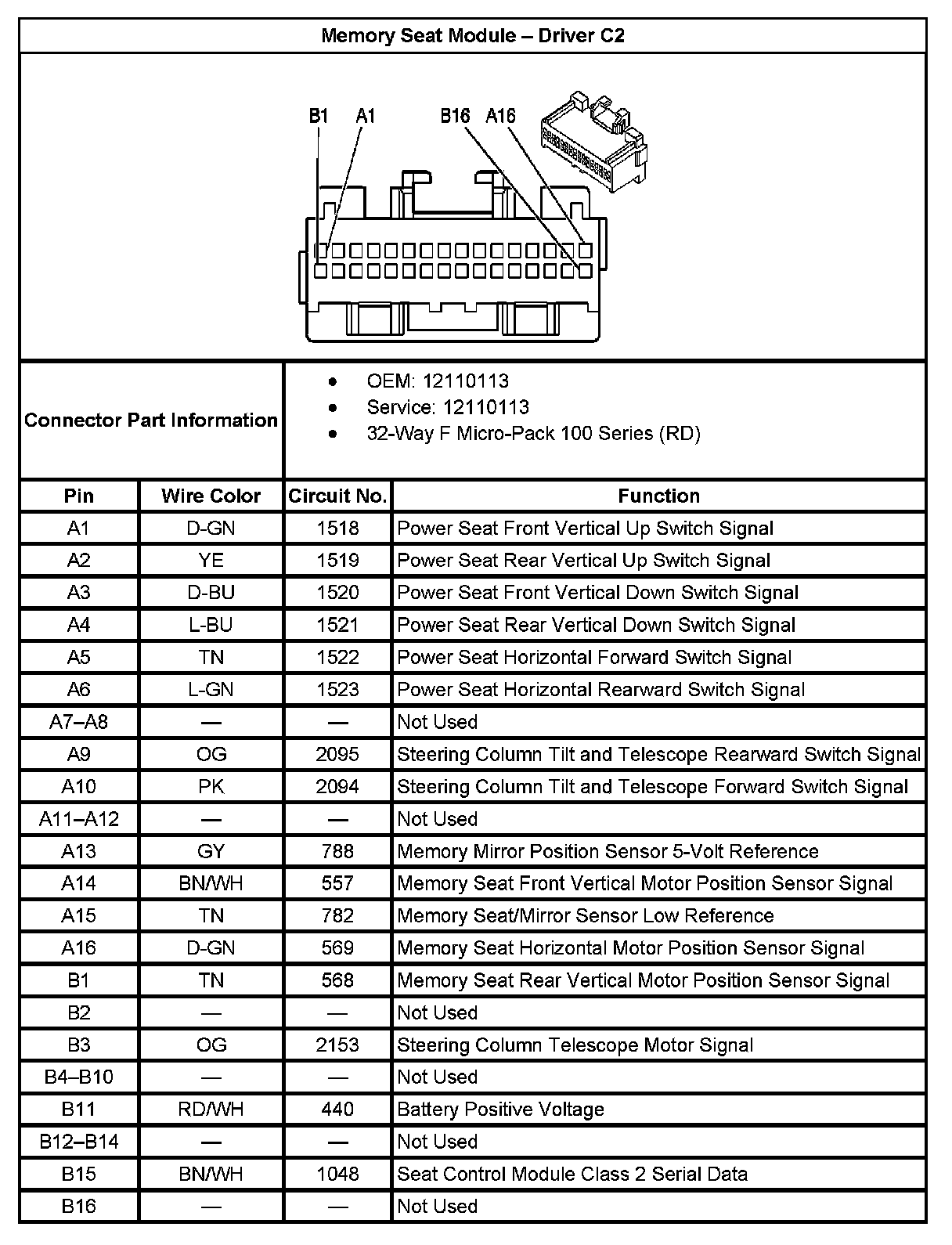

Memory Seat Module - Driver C2:

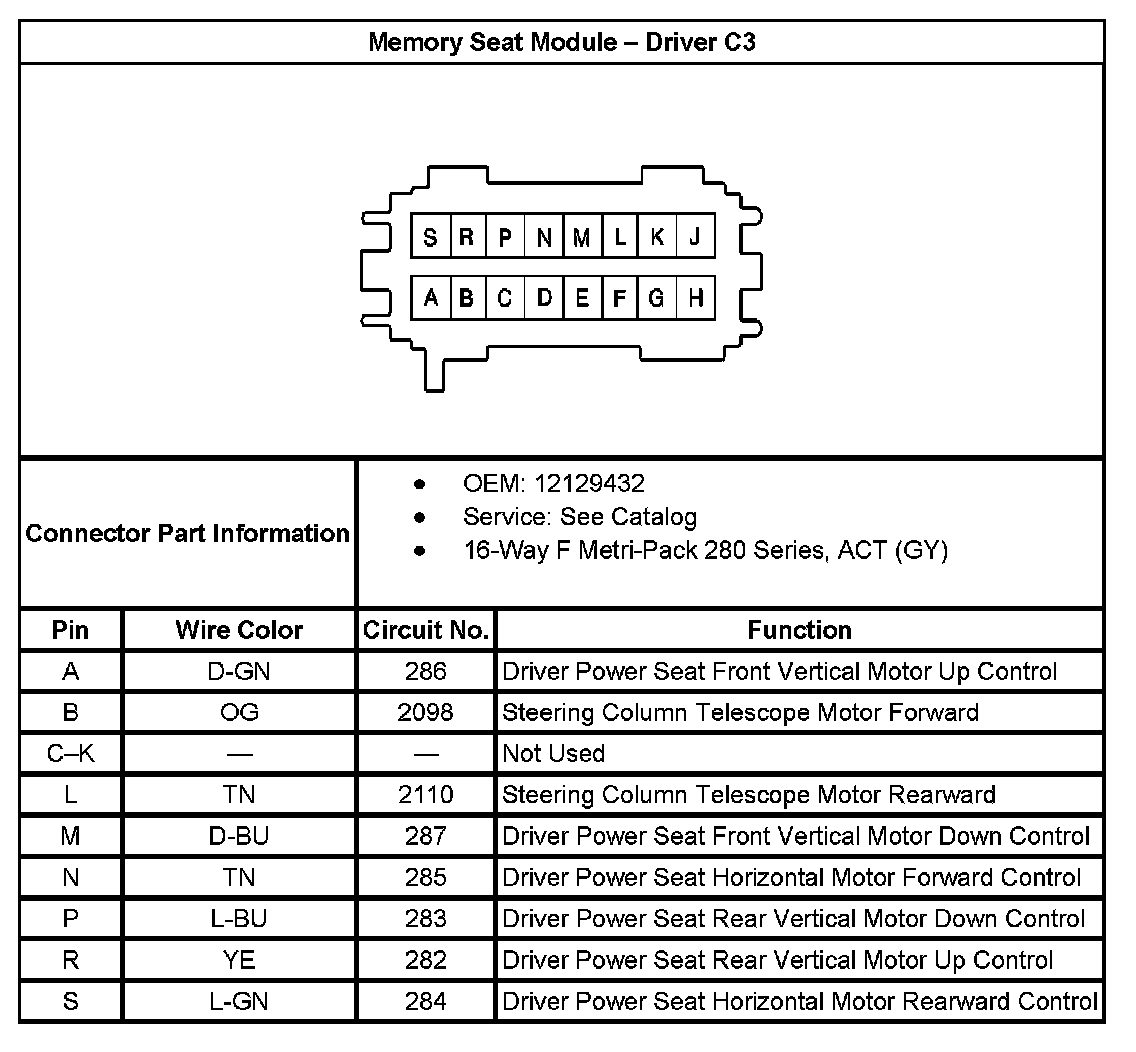

Memory Seat Module - Driver C3:
